Find for your Corvette

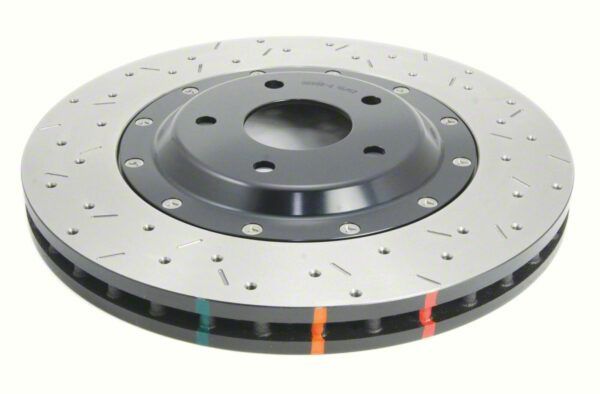

DBA 5000 Series XS Cross Drilled and Slotted Rotor; Front (06-13 Corvette C6 427, Grand Sport, Z06 w/o Z07 Brake Package)Find parts that fit my vehicle

Item CV22288
Product Image
$0.00
1 Reviews
Our Price

$661.27 each

Military, Medical & First Responders Earn $33.06 in AM Cash Rewards. Get Verified

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Rotor
      • Two-Piece Composite Design
      • Cross Drilled and Slotted Surface
      • Symmetrical Slotting and Drilling
      • Aluma-Lite 6061 T6 Aircraft Aluminum Hat
      • High Carbon Alloyed Iron Rings
      • Thermal Stability Profiling
      • Thermal Efficiency Castings
      • CBN Machine Turned Finish
      • Thermographic Heat Paint
      • Kangaroo Paw Ventilation
      • NAS Bolts and Crimp Nuts
      • Anti-Rust Painted Non-Friction Areas
      • Bi-Directional Use
      • Improves Brake Pad Dust and Gas Expulsion
      • Enhances Pedal Feel
      • Reduces Unsprung Weight
      • Better Heat Management
      • Two-Hour Installation
      • Twelve-Month/20,000km/12,000-Mile Warranty
      • Fits 2006-2013 Corvette C6 427, Grand Sport, Z06 Models without Z07 Brake Package

      Description

      Two-Piece Aerospace-Grade Construction. The DBA 5000 Series XS Cross Drilled and Slotted Rotor; Front features a high-performance two-piece design that combines a high carbon cast iron braking ring with a lightweight 6061-T6 aerospace-grade aluminum hat. This configuration reduces unsprung weight, improving handling and suspension responsiveness. The aluminum hat also minimizes heat transfer to the wheel hub, preserving surrounding components and enhancing overall thermal efficiency.

      Cross Drilled and Slotted Surface Design. Engineered for both performance and aesthetics, the DBA 5000 Series XS Cross Drilled and Slotted Rotor; Front incorporates a non-directional cross drilled and slotted pattern. This design increases the number of exit points for brake dust, gases, and heat, resulting in cleaner pad contact, improved bite, and reduced fade. It’s a popular choice for show cars and performance builds alike, offering both visual appeal and functional superiority.

      Thermal Stability Profiling (TSP). DBA’s proprietary Thermal Stability Profiling process realigns the microstructure of the DBA 5000 Series XS Cross Drilled and Slotted Rotor; Front’s iron, enhancing its ability to withstand extreme heat cycles. This treatment significantly improves rotor durability and reduces the risk of warping or cracking under aggressive driving conditions, making it ideal for track days, spirited street driving, and rally applications.

      Kangaroo Paw Ventilation System. The DBA 5000 Series XS Cross Drilled and Slotted Rotor; Front features DBA’s patented Kangaroo Paw ventilation design, which uses 144 diamond and teardrop-shaped pillars to increase surface area and airflow. This system boosts cooling efficiency by up to 20% compared to traditional vane designs, helping maintain optimal braking temperatures and prolonging both rotor and pad life.

      Thermographic Heat Paint Indicators. To assist with performance monitoring, the DBA 5000 Series XS Cross Drilled and Slotted Rotor; Front includes thermographic heat paint markings that change color at specific temperature thresholds. These indicators provide visual feedback on rotor fatigue and braking conditions, allowing drivers to assess heat exposure and make informed maintenance decisions.

      Installation. Putting this DBA 5000 Series XS Cross Drilled and Slotted Rotor; Front on your Corvette C6 427, Grand Sport, Z06 takes 2 hours to install.

      Warranty. There is a 12-month/20,000km/12-000-mile warranty on this product.

      Application. The DBA 5000 Series XS Cross Drilled and Slotted Rotor; Front fits 2006-2013 Corvette C6 427, Grand Sport, Z06 models without Z07 Brake Package.

      DBA DBA52992BLKXS

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (2) Front Brake Rotors
      5.0

      Customer Reviews (1)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Corvette

      • 427 - 13
      • Grand Sport - 10, 11, 12, 13
      • Z06 - 06, 07, 08, 09, 10, 11, 12, 13
