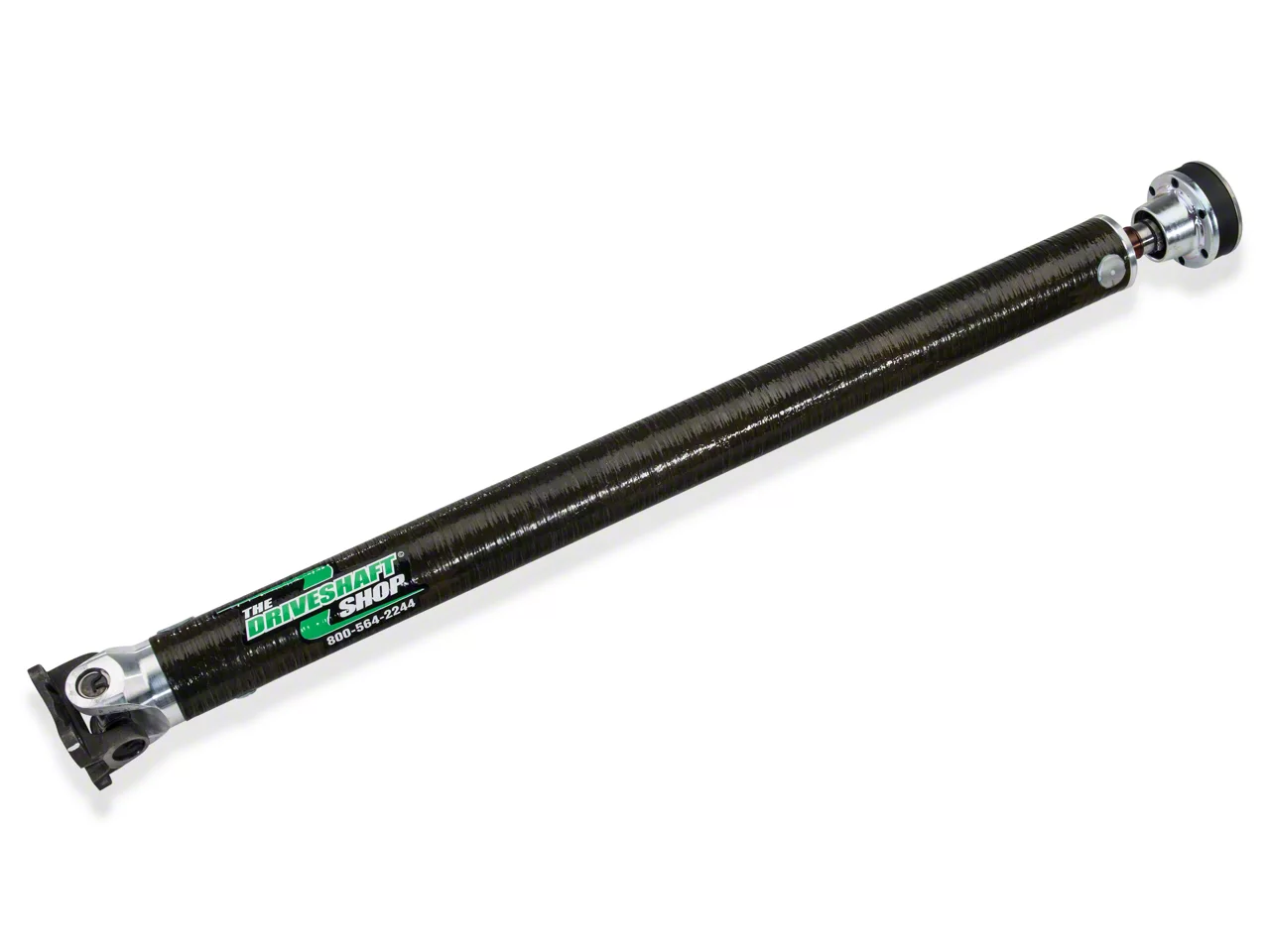

The Driveshaft Shop Carbon Fiber One Piece Driveshaft (07-12 GT500)

Market Price $1,282.49 You Save 7% ($95.00)
Our Price

$1,187.49 (each)

FREE Shipping
  • Item 14103
  • MPN# FDSH10-C-CV1

In Stock Ships same business day. Choose options to add to cart

Features, Video & Details

  • Reduces Rotating Mass for Quicker ET's
  • Lighter and Stronger Than Stock - Only 17 lbs
  • High Modulus Carbon Fiber Construction
  • One Piece Driveshaft Design
  • 3.25" Diameter for Extra Clearance
  • High Speed Balanced - Rated Up to 900 Horsepower
  • Fits 2007-2012 Manual Shelby GT500 Mustangs

Review & Installation Video

Review & Install Video

Hey I'm Justin with AmericanMuscle.com and this is my detailed breakdown of the drive shaft shop one piece carbon fiber and aluminum drive shaft available for the 2005 to 2014 Mustang GT, all 11-14 V6s and the 2007-2012 Shelby GT 500. For all intents and purposes either the carbon fiber or aluminum one piece drive shaft would be a massive upgrade over the factory two-piece drive shaft in just about every way with the only exception of course being cost. Now before I lay down all the benefits of switching to a one-piece drive shaft, go ahead and click on that link below to subscribe to our YouTube channel if you haven't done so already. That way you can see more detailed product overviews like these drive shafts here in addition to other great Mustang bids that are certainly worth the watch. So the drive shaft shop has been around for over 30 years designing and producing quality drive shafts that have been used on everything from record breaking drag cars to some of our very own project cars like Project MMD and Project Coyote. Currently on the site, we are offering both the carbon fiber version and the lightweight aluminum version which again will be a huge improvement over that stocker not only in weight savings but also strength, drivability and performance. First up, let's start with the most obvious benefit of going with a one-piece drive shaft, weight savings. Now I do have the factory 2014 Coyote drive shaft here with me. So let's throw that on the scale and see what we're looking at. All right so the factory two-piece drive shaft is weighing in at roughly 37-1/2 pounds. Take this off. Now let's see what we're looking at with the aluminum drive shaft. So with the one-piece drive shaft, the aluminum version, we're weighing in at 18-1/2 pounds roughly. So we'll take this off and throw the carbon fiber version on and see what the difference is. And the carbon fiber version is just over 17 pounds right now. So there you go. Just by going with a one-piece lightweight aluminum or carbon fiber drive shaft you're roughly going to shave almost 20 pounds off your Mustang's rotational mass. By shedding that much weight off the drivetrain, you're going to notice a couple of different things, quicker revs and improved throttle response and you should even see slightly faster 60 foot and quarter mile times. Another benefit is that you should notice slightly less vibrations that can sometimes be associated with two-piece drive shafts. Another massive benefit is that the one piece drive shafts are just inherently stronger than the factory two-piece drive shaft. For one, you are eliminating the weak spot in the factory two-piece drive shaft and you're also going to be using stronger materials all around from the shaft itself to the CV and U joints much superior compared to the factory counterpart. First up, let's start with the lightweight aluminum version. Now if you want you can click on the link below to head back to our site if you're not there already to learn a little bit more about this guy. Now first up, the lightweight version is going to be a little less expensive compared to the carbon fiber version but will still offer all of the same performance benefits I just talked about a little earlier. The shaft itself has been made from a light weight 6061 T6 aluminum while the CV joint and U joints themselves have been made from extremely strong 300M alloy steel. This is the same steel used in aircraft landing gear and other applications where strength is an absolute must. The carbon fiber version on the other hand is slightly more expensive compared to the aluminum version but you do get a little bit more for your money. In fact, just click the link below if you want to learn more about this guy. Carbon fiber construction does weigh slightly less compared to the aluminum version as we just saw with our scale and when it does come to rotational mass, every little bit helps. Another plus with the carbon fiber version is that even though both options have been rated at 900 horsepower at the rear wheels that carbon fiber construction is going to have a higher degree of torsion and a higher tensile strength. So that basically means the carbon fiber material can handle much more abuse before breaking when compared to the aluminum version. Now even though the carbon fiber is technically stronger in that regard, it does have better elasticity allowing it to twist ever so slightly on those hard launches reducing some of the shock on your drivetrain, your gears and your axles. Because it does have the ability to dampen some of these noises, everyday driving should be a little quieter and free of noise vibration and harshness when compared to that aluminum unit. Getting either option installed on to your Mustang is actually pretty straightforward if you've never done one before but I will say it makes life a lot easier if you have a lift on hand in addition to another set of hands. On the other hand, if you want to do things the old-fashioned way and get on your back underneath some jack stands, well it can be done that way too but just be sure to leave yourself two hours to get the job done and make sure you have a good quality fork wrench on hand just to make sure everything is according to spec. Either way if you do have any questions about the install or about the drive shafts themselves, feel free to give us a call or shoot us an e-mail. Even though upgrading the factory two-piece drive shaft in your ride can be a little pricey, the savings in weight and general improvements overall are worth every single penny especially if your car sees a lot of track time. So be sure to check out the drive shaft shop options for your ride available right here at AmericanMuscle.com.

Light Weight. Lighter and stronger than the stock 2-piece driveshaft, weighing in at  only 17 lbs and 10.4 oz, The Driveshaft Shop's One Piece Mustang Driveshaft greatly reduces rotating mass to improve your GT500's 1/4 mile track times.

Superior Quality. Constructed from 3.25" diameter High Modulus Carbon fiber tubing this driveshaft features a 1350 front u-joint with flange to mount directly to the transmission and a 28 spline 108mm 6-bolt rear CV joint made from an all new 300M material.

Extra Clearance. This light weight one piece carbon fiber driveshaft features a 3.25" diameter design giving extra clearance needed to avoid interference that can happen on lowered Mustangs equipped with a 4" shaft.

High Speed Balanced. Balanced on one of the most sophisticated balancing machines in the industry, at up to 9500RPM (revolutions per minute) this one piece driveshaft is rated for use up to 900 horsepower.

Application. This one piece carbon fiber driveshaft from The Driveshaft Shop is designed specifically for use on 2007 to 2012 Shelby GT500 Mustangs equipped with a 6-speed Manual transmission.

Fitment: 2007 2008 2009 2010 2011 2012 Details

What's in the Box
  • (1) Driveshaft
Installation Info
Tech Specs
Will it fit my Mustang?
  • GT500 - 07, 08, 09, 10, 11, 12

Most Helpful Reviews

5/5
Smooth

Knowing the significant difference in weight between the carbon fiber driveshaft and the original equipment two piece driveshaft, the upgrade made sense to me. I do not race or hot rod my 2008 ShelbyGT500. ...

Read More
Helpful (1)

5/5
Great Upgrade

Easy install . Quieted some of the driveline noise and power increase

Helpful (0)

Overall Rating 5 out of 5 stars
Read All 3 Reviews

Customer Photos

You Might Also Like

Q & A

No questions about this product yet.

Ask the First Question

More Products You Might Like

Customer Reviews (3) Write a Review

Overall Rating 5.0

out of 5 stars

Installation Time:Less than 1 Hour

  • Performance Gain 4 4
  • Fit 5 5



  • 5/5

    Installation Time: Less than 1 Hour

    June 22, 2017

    Smooth

    Knowing the significant difference in weight between the carbon fiber driveshaft and the original equipment two piece driveshaft, the upgrade made sense to me. I do not race or hot rod my 2008 ShelbyGT500. With that being said, I could tell the difference the first block I drove it after the Driveshaft Shop carbon fiber driveshaft was installed. The ease of shifting was greatly enhanced. It was smoother and entry into and out of the gears was much easier. Then I drove the car at highway speed and noticed how smooth and totally vibration free the drivetrain was. With the OEM driveshaft I always had a slight vibration at speeds above 50 mph. Not now. Silky smooth.. Although a mod most do not contemplate, I highly recommend it. I am sure the transmission and clutch assembly likes the less weight to toss around. I am seriously considering installing the Driveshaft Shop carbon fiber driveshaft in my 2014 GT premium convertible.

    Snoker

    Year: 2014 Submodel: GT

    Helpful (1)

  • 5/5

    Installation Time: Less than 1 Hour

    July 10, 2017

    Great Upgrade

    Easy install . Quieted some of the driveline noise and power increase

    cobra

    Year: 2007 Submodel: GT500

    Helpful (0)

  • 5/5

    Installation Time: Less than 1 Hour

    March 07, 2017

    Best shaft

    I highly recommend this works great no more rattle. And easy install less than 1 hour!

    MonsterSTANG

    Year: 2011 Submodel: V6

    Helpful (0)
