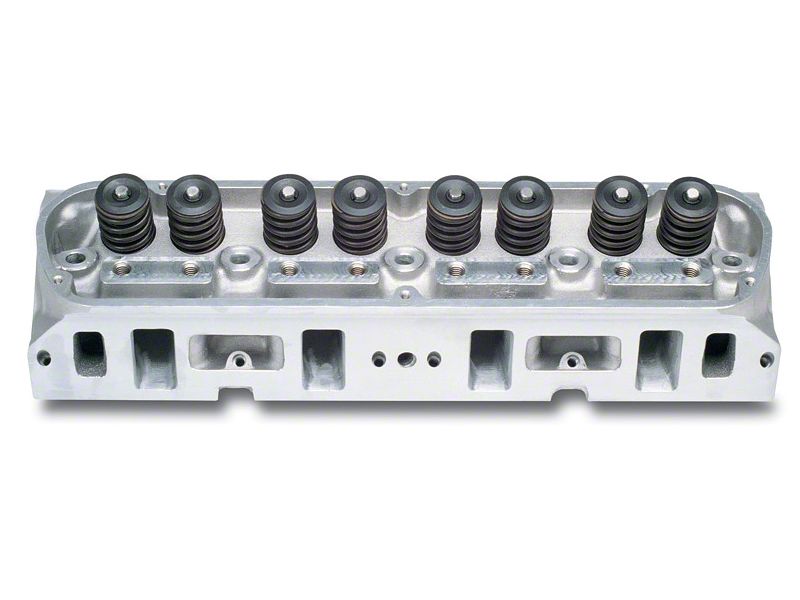

Name: Edelbrock Performer Cylinder Head - 1.90 Valve (82-95 5.0L, 5.8L)
Brand: Edelbrock
SKU: 56520
Price: 903.50 USD
Availability: InStock
Rating: 4.3 (3 reviews)

Edelbrock Performer Cylinder Head - 1.90 Valve (82-95 5.0L, 5.8L)

$0.00

3 Reviews 9 Answers

Market Price $1,020.96 You Save 12% ($117.46)

Our Price

$903.50 (each)

FREE Shipping

Item 56520

Will this fit your Vehicle?

Change Vehicle Help?

In Stock Ships same business day.

Ship to: Ashburn - 20149

Sorry, please enter a valid US or CA postal code

We're sorry, zip can't be updated at this time.

Add to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

Features & Details

Outstanding Bolt-On Performance
Improves Horsepower and Torque
Sold Individually
Proudly Made in the USA
Fits 1982-1995 5.0L and 5.8L V8 Engine

Product Resources

Submit the first photo Customer Reviews (3) Questions (8) & Answers (9)

More Power. An Edelbrock Performer Aluminum Head is perfect for your daily driven or street Mustang for more power and better throttle response from idle to 5500 rpm range.

Features. This Performer Aluminum Head is made in the USA and features threaded inserts in rocker studs and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides. These heads will be compatible with the 5.0L and 5.8L engines.

Application. The Edelbrock Performer Aluminum Head is designed to be a direct bolt-on for 1982 to 1995 5.0L and 5.8L Ford V8 engines.

Technical Notes. 1986 5.0L need pistons notched for clearance. Will not accept rail rockers. 5.0L requires Head Bolt Bushings #9680 and either Head Bolt Kit #8552 (7/16") or stock head bolts. Match with Edelbrock head gasket sets. Recommended spark plugs 14mm x 3/4" reach with flat gasket seat.

Fitment: 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 Details

MPN# 60379

CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

What's in the Box

(1) Cylinder head

Installation Info

Installation Time

(approx) a Day

Difficulty Level:

Mechanical expertise or professional installation required.

Installation Guides

Manufacturer:
How to Install Edelbrock Performance Heads on Your 1982-1995 5.0L Mustang

Tech Specs

Specifications:

Combustion chamber volume - 60cc
Intake runner volume - 170cc
Exhaust runner volume - 60cc
Intake valve diameter - 1.90"
Exhaust valve diameter - 1.60"
Valve stem diameter - 11/32"
Valve guides - Manganese bronze
Deck thickness - 5/8"
Valve spring diameter - 1.46"
Valve spring maximum lift - .575"
Guideplate - Hardended steel
Pushrod diameter - 5/16"
Valve angle - 20°
Exhaust port location - Stock
Spark plug fitment - 14mm x 3/4 reach, gasket seat

Tech Guides:

Will it fit my Mustang?

Cobra - 93, 94, 95
Cobra R - 93
GT - 87, 88, 89, 90, 91, 92, 93, 94, 95
LX - 87, 88, 89, 90, 91, 92, 93
Other - 82, 83, 84, 85, 86

Customer Photos

Submit a photo for a chance to win $100!

Questions & Answers (8)

5 Top Rated Questions

What spark plugs go in this head.

The Edelbrock Performer Cylinder Heads accept OEM and OEM style plugs. Specific plug choices will depend on the rest of your setup.

Helpful (0)

i got a 40 over 5.0 with e7 heads trick flow roller cam and headers with a dual plane intake with a 650 double pumper how much more hp will the performer heads give me

Typical gains with the Edelbrock Performer Cylinder Heads will be in the 40-50hp range.

Helpful (0)

Are these CARB legal and have any engraving or sticker for proof when smogging?

This cylinder head is 50 state legal and should include proof within the shipping box.

Helpful (0)

With the combination of these heads and a b303 cam would i need to change my stock pushrod length and my 1.6 rockers?

The Edelbrock Performer Cylinder Head will use stud mount rockers and will not accept pedestal mount rockers like those used for stock heads. Pushrod length should be checked when changing heads, most customers do not require a change in pushrod length however due to production tolerances, we have seen some who did require a different length pushrod.

Helpful (0)

What's the best spark plug to use

We would need a little more information regarding your build to possibly suggest the best spark plugs for your individual use. The best spark plug for your motor depends on what other modifications you have. There are spark plugs that are best used with forced induction motors or different pugs if you are planning on using nitrous for example. I suggest contacting us so that we can better assist you! http://www.americanmuscle.com/contact.html

Helpful (0)

Not finding an answer? Ask your question! Post Your Question

3 More Questions

Hey I've got a 1990 fox with trickflow stage two cam, trickflow intake 75mmtb 42lb injectors 255lph fuel pump, and vortech v1 super charger with aftermarket pulley. 8 to 10 psi. All this is riding on some stock heads so 4700 rpm I cut seems to Float valve or make the valve springs make out. Are these a good head and what size rocker would be recommended. 1 answer

The Edelbrock Performer Cylinder Head would be a good cylinder head for this combination with a 170CC Intake runner. I would recommend a 1.6 rockers for this setup.

Helpful (0)

Good cam to match? Just looking for a good cam that will pull up until 6000 rmp 1 answer

I would recommend the Ford Performance B303 Performance Camshaft (85-95 5.0L) for some good low-end torque, a significant increase in top-end power above 4,000 RPM, and a fair Idle.

Helpful (0)

what other mods would be good to do with this bolt on? 2 answers

Some good mods to get peak performance out of the heads would be cam, 1.6 or 1.7 roller rockers, intake & larger throttle body. Stick with the Edelbrock intake RPM II, as it has one of the best flow rates. You might consider going up on the injector size as well from the stock 19mm. You should probably need a new MAF sensor to handle the increased TB size and intake.
Along with the above mentioned mods if you still have a factory fuel pump make sure to upgrade it to at least a 110 LPH and an adjustable pressure regulator. A cobra/explorer 5.0 intake will also work excellent with these heads.

Helpful (0) Show 1 more answer

Customer Reviews (3) Write a Review

Overall Rating

4.3

out of 5 stars

Installation Time:Afternoon

Performance Gain 4.5 4.5
Fit 4.5 4.5

no one in the world ever gets what they want, and that is beautiful

Sort By
Filter By

3/5

Installation Time: Full Day

April 30, 2019

Good

Seem to be working good, but won’t really be able to tell until I get the new build tuned in. Would have given it a better rating if I didn’t have so much trouble with finding the proper gaskets. Which, by the way, American Muscle doesn’t carry!

DerekB

Year: 1989 Submodel: LX

Helpful (0) Thanks for your input!
- Performance Gain 4
  4
- Fit 4
  4
5/5

Installation Time: Afternoon

March 26, 2013

Performer

Great heads. Really feel the power gain like a kick in the pants.

Xxstinkypetexx

Year: 1988 Submodel: GT New Jersey, USA

Helpful (13) Thanks for your input!
- Performance Gain 5
  5
- Fit 5
  5
- Bang for your Buck 5
  5
5/5
October 19, 2009

nice

Bad boys

rolando martinez jr

Helpful (25) Thanks for your input!
