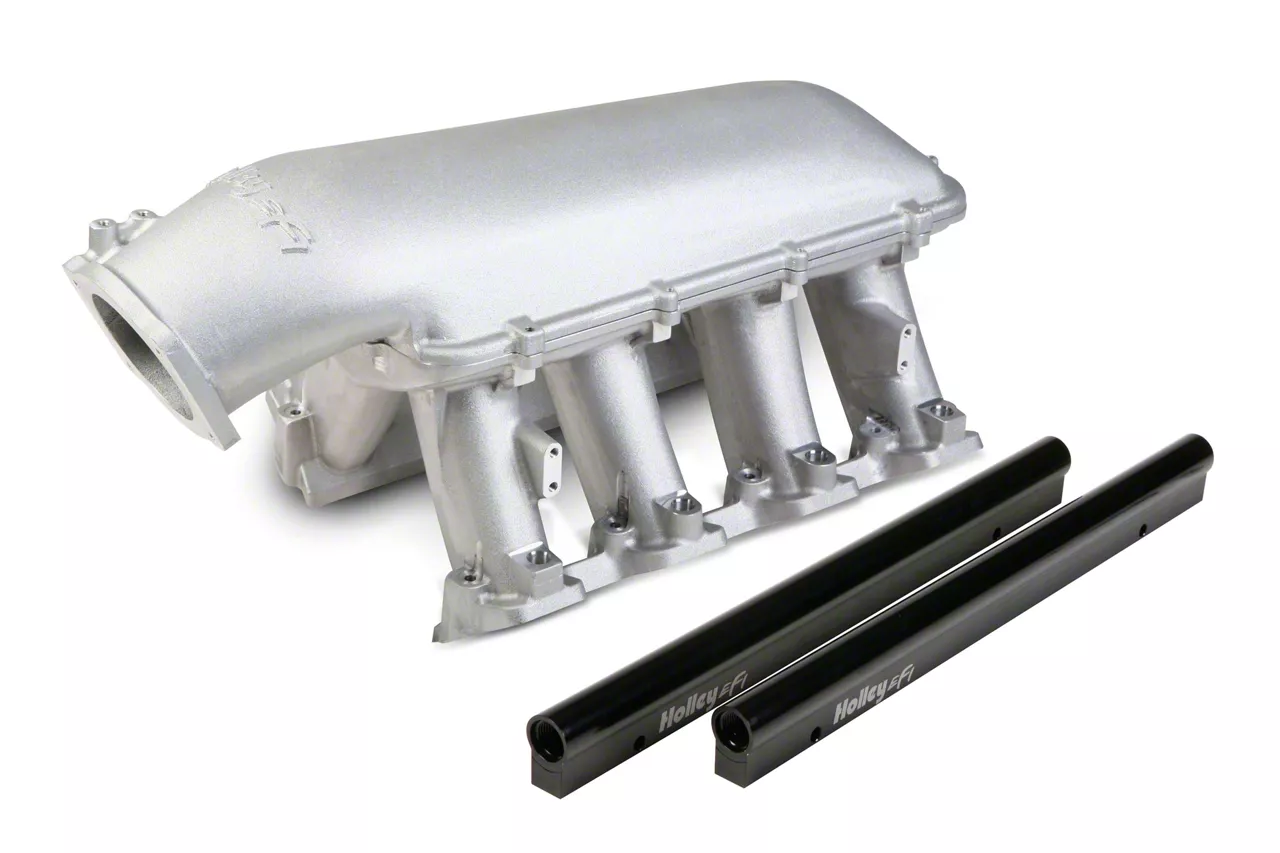

Holley GM LS3/L92 Modular EFI Hi-Ram Intake Manifold with 92mm LS Throttle Body Mount (08-13 6.2L Corvette C6)
Find parts that fit my vehicle Item CV5196
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- EFI Hi-Ram Intake For 1 X 92Mm GM LS Throttle Body - Longitudinal Mount Plenum Top
- Cast Aluminum Construction
- Runner Length And Tapered Cross-Section Designed For Optimal Performance Across Various Engine Configurations
- Intended For Naturally Aspirated Or Forced Induction Engines In The 6.0 To 7.0+ Liter Range, Delivering Max Power At 7000-8000+ RPM
- Compatible With High Flow LS3/L92 Style Cylinder Heads, Suitable For Both N/A And Forced Induction Applications
- Aggressive, Bold Race-Bred Styling
- Throttle Body Flange Location With 92/102Mm EFI Plenum Top: Height – 8.42” (From Engine Block Lifter Valley Cover Flange), Longitudinal Location – 3.84” (Forward From Engine Block Front Flange), Angle – 25 Deg. (Down From Vertical)
- Plenum Top Gasket Type – 3/32” Round O-Ring Cord
- Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
- Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered From 4.25 In² To 2.77 In²
- Total Height With 92/102Mm EFI Plenum Top – 12.32” To The Lifter Valley Cover Flange On Engine Block
- Port Size – 2.49” Height X 1.21” Wide
- Basic Operating RPM Range – 3500-8000 RPM
- Brand – Holley EFI
- Category – Engine
- Construction – Cast Aluminum
- Engine – GM LS3/L92
- Flange Style – EFI
- Material – Aluminum
- Fits 2008-2013 6.2L Corvette C6
Description
Performance Intake Manifold. The Holley GM LS3/L92 Modular EFI Hi-Ram Intake Manifold with 92mm LS Throttle Body Mount enhances airflow for naturally aspirated and forced induction engines, optimizing performance in the 6.0 to 7.0+ liter range. It supports high power output at elevated RPMs, making it ideal for racing and high-performance builds.
Construction and Appearance. Crafted from durable cast aluminum, this intake manifold features a tapered runner design for efficient airflow. Its aggressive, race-inspired styling complements LS3/L92 style cylinder heads, combining aesthetics with functionality.
Installation. Designed for straightforward installation without the need for drilling or major modifications, this manifold mounts longitudinally with a 92mm throttle body flange and standard LS3 molded o-ring gasket to ensure proper sealing.
Warranty. Covered by a limited 90-day manufacturer’s warranty. Application. Specifically designed to fit the 2008 to 2013 6.2L Corvette C6 without exclusions.
Holley 300-116
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Install Details & What's in the Box
Installation Info
What's in the Box
- (1) Intake Manifold
5.0
Customer Reviews (1)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Corvette
- Base - 08, 09, 10, 11, 12, 13
- Grand Sport - 10, 11, 12, 13
- ZR1 - 09, 10, 11, 12, 13
