Installation Time
(approx) 6 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
On3 Performance LSX Swapped Single Turbo System with 70mm Cast Wheel Journal Bearing Turbo (87-93 Mustang w/ LSX Swap)Find parts that fit my vehicle
Item 483430-D
Our Price
$1,995.00 - $2,554.00
Military, Medical & First Responders
$117.75 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Original Turbo Kit From On3Performance With Proven Track Record
- Headers Constructed From 304 Stainless Steel Tubing Measuring 1 3/4 Inch
- On3 Performance 3.5 Inch Stainless Steel Stepped Downpipe Supports Up To 1000 Hp
- Cold Side Uses 3 Inch 6061 Aluminum With Bead Rolled Polished Finish
- Includes 50mm Blow Off Valve Flange Pre-Welded Onto Intercooler Piping
- Standard On3 Performance 800 Hp Bar And Plate Intercooler
- Optional 1000 Hp 4 Inch Race Core Intercooler Available
- Couplers Are Black, 5 Ply, With Stainless Steel T-Bolt Clamps
- Standard Turbo Is A 70mm Journal Bearing Unit For Approximately 600 Rwhp
- Compatible With Maximum Motorsports Kmember And UPR Adjustable Motor Mount Setup
- Pickup Available At Sunbury OH Location
- Fits 87-93 Mustang w/ LSX Swap
Description
Proven Turbo System. The On3 Performance LSX Swapped Single Turbo System featuring a 70mm cast wheel journal bearing turbo is engineered to support enhanced power output for LSX engine swapped Foxbody Mustangs. This setup offers a reliable and efficient boost solution for enthusiasts aiming to increase horsepower in their 1979 to 1993 Mustang chassis.
Construction and Appearance. Headers are fabricated from thick wall 304 stainless steel tubing measuring 1 3/4 inches, ensuring both durability and optimal exhaust flow. The downpipe is a 3.5 inch stainless steel stepped design, capable of handling up to 1000 horsepower. Cold side piping is crafted from 3 inch 6061 aluminum, bead rolled and polished for strength and an appealing finish. The intercooler piping includes a pre-welded 50mm blow-off valve flange and utilizes premium 5 ply black couplers with stainless steel t-bolt clamps for a secure and leak-free seal.
Installation is designed to be efficient, with compatibility in mind for popular K member options. Some drilling or minor modifications may be required depending on the specific subframe or K member used. Proper selection and verification of compatible K members are recommended to ensure fitment without issues.
Specifically built to fit 1979 to 1993 Foxbody Mustangs with LSX engine swaps, this turbo system may require consideration when used with UPR and QA1 K members due to potential fitment conflicts, but it remains compatible with the stock K member, Team Z, AJE, Maximum Motorsports Kmembers, and UPR adjustable motor mount setups.
Application. Specifically designed to fit 1987 to 1993 Mustangs with LSX engine swaps. Note that the system may encounter fitment complications with UPR and QA1 K members but is compatible with Team Z, AJE, Maximum Motorsports K members, and the stock K member as indicated.
On3 Performance LSFOX.70.3
LSFOX.70.4
LSFOX.70.5
LSFOX.70.3.TS
LSFOX.70.4.TS
LSFOX.70.5.TS
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

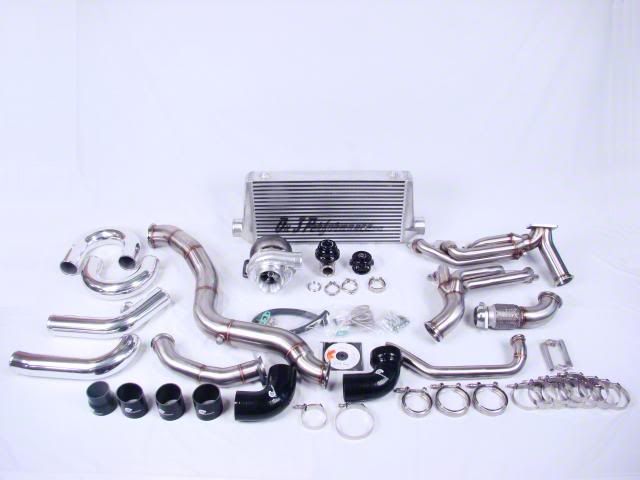

Install Details & What's in the Box
Installation Info
What's in the Box
- (1) Turbocharger
- (1) Exhaust Manifold
- (1) Front Mount Intercooler
- (1) Charge Piping
- (1) Wastegate
- (1) Blow Off Valve
- Oil Lines
- Hardware
