Find Crate Engines and Blocks for your Mustang

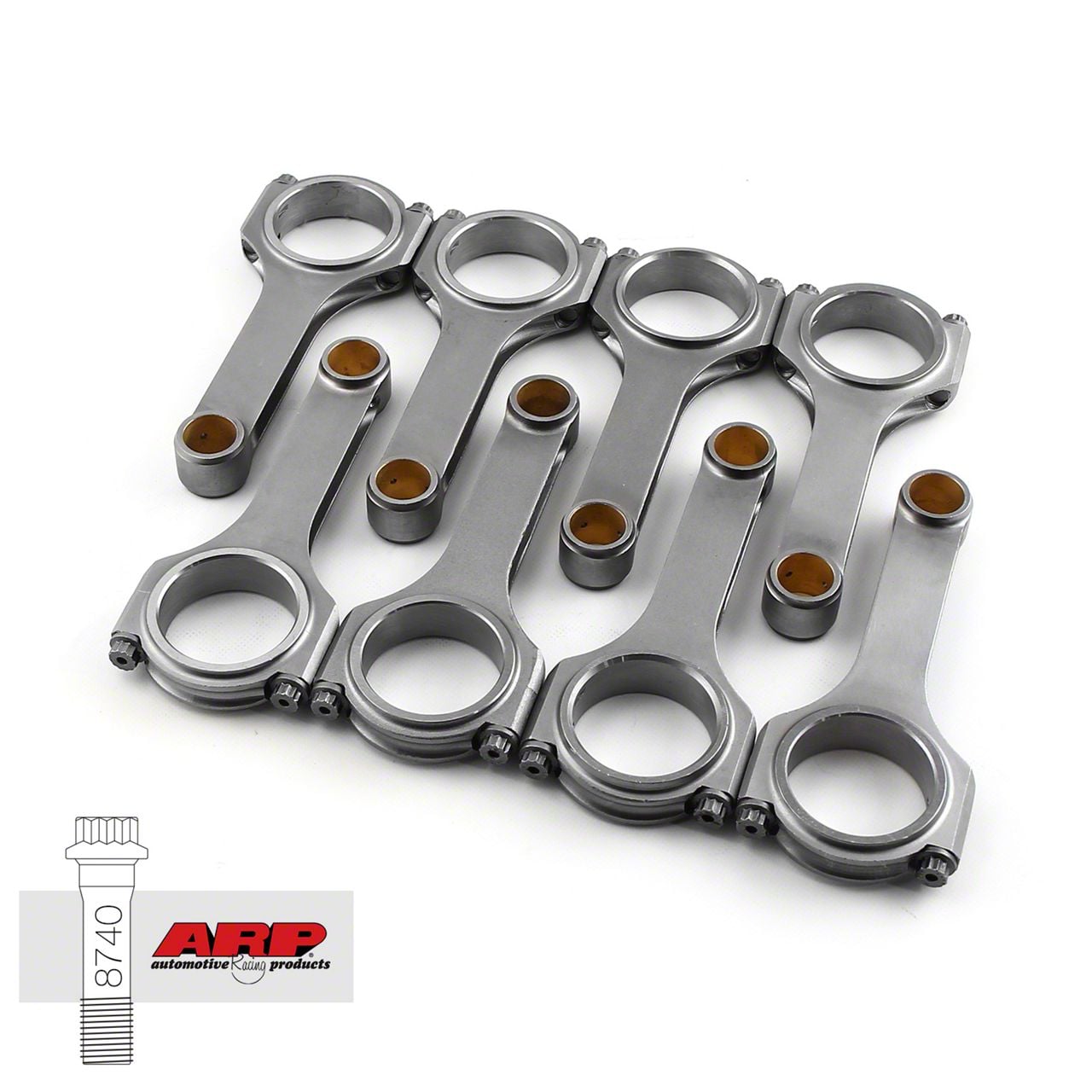

Speedmaster Ford 4.6L 4340 Connecting Rods with ARP 8740 Bolts; 5.933-Rod Length; H-Beam (94-04 4.6L Mustang)Find parts that fit my vehicle

Item 485299
Product Image
Our Price

$555.00

Military, Medical & First Responders $27.75 Available in AM Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • H Beam Connecting Rod Design
        • _x000D_
      • 5.933 Inch Connecting Rod Length Center To Center
        • _x000D_
      • Forged 4340 Chromoly Steel Material
        • _x000D_
      • Shot Peened Finish For Enhanced Strength And Durability
        • _x000D_
      • Floating Wrist Pin Style
        • _x000D_
      • Cap Screw Retention Style
        • _x000D_
      • Bolts Manufactured From 8740 Chromoly Steel
        • _x000D_
      • 7/16 Inch Bolt Diameter
        • _x000D_
      • 200,000 Psi Fastener Yield Strength
        • _x000D_
      • 12 Point Bolt Head Style
        • _x000D_
      • Rod Journal Diameter 2.087 Inch
        • _x000D_
      • Pin End Bore Diameter 0.866 Inch
        • _x000D_
      • Big End Width 0.938 Inch
        • _x000D_
      • Stress Relieved And Magnaflux Tested
        • _x000D_
      • X Rayed And Ultrasonically Tested
        • _x000D_
      • Weight Matched Set
        • _x000D_
      • Sold As Set Of 8
        • _x000D_
      • Advertised Horsepower Rating 750 Hp
        • _x000D_
      • Advertised RPM Rating 8,500 Rpm
        • _x000D_
      • Fits 94-04 4.6L Mustang
        • _x000D_

      Description

      High Strength Performance. The Speedmaster Ford 4.6L 4340 Connecting Rods with ARP 8740 Bolts; 5.933-Rod Length; H-Beam are designed to provide exceptional strength and reliability for high-performance engines. Ideal for use in motorsports or modified street vehicles, these rods connect the piston to the crankshaft, handling extreme forces and ensuring optimal engine operation. Their robust design supports applications requiring significant power and high RPM capacity.

      _x000D__x000D_

      Construction and Appearance. These connecting rods are crafted from aircraft-quality forged 4340 chromoly steel, providing superior durability and fatigue resistance. The rods undergo thorough testing including X-ray and ultrasonic inspections to ensure integrity, and feature a shot-peened finish to further enhance toughness and resistance to stress. The bolts are precision CNC-machined from 8740 chromoly steel with a 12-point head for secure fastening.

      _x000D__x000D_

      Installation. Installation of these connecting rods requires moderate mechanical skill with no additional drilling or machining necessary. They bolt directly in place using the included ARP 8740 chromoly bolts to ensure precise alignment and secure fitment.

      _x000D__x000D_

      Warranty. This product comes with a 12-month limited worldwide warranty.

      _x000D__x000D_

      Application. Specifically engineered to fit the 1994-2004 Ford Mustang 4.6L engines, ensuring correct dimensions and performance without the need for modifications.

      Speedmaster 1-274-017

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Tech Specs

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Mustang

      • Bullitt - 01
      • Cobra - 96, 97, 98, 99, 01, 03, 04
      • GT - 96, 97, 98, 99, 00, 01, 02, 03, 04
      • Mach 1 - 03, 04
