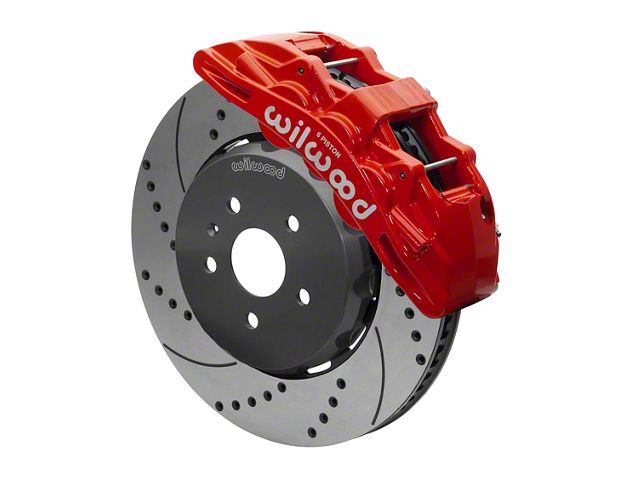

Wilwood SX6R Dynamic Front Big Brake Kit with 15-Inch Drilled and Slotted Rotors; Red Calipers (10-15 Camaro)

Find parts that fit my vehicle Item CC2661
Shop Owners Save More! Sign up for our dealer program

    Product Information

    Features, Description, Q&A, Specs & Installation

    Features & Specs

    • 2014 Chevrolet Camaro V-6 Only Front Brake Kit
    • SX6R Big Brake Dynamic Front Brake Kit
    • Factory Disc Spindle Compatible
    • Radial Mount Type Calipers
    • 6-Piston Caliper with Stainless Steel Pistons
    • Rotor Diameter 15.00 Inches
    • Minimum Wheel Diameter Required 19 Inches
    • Red Powder Coat Finish Calipers
    • SRP Drilled and Slotted Rotor
    • Directional 72 Staggered Vane Rotor for Maximum Cooling
    • Compatible with OE Master Cylinder Output and ABS Function
    • Brake Pad Compound BP-10
    • Wheel Clearance Diagram Available for Fitment Verification
    • Fits 2010-2015 Camaro V-6 Models

    Description

    High-Performance Braking. The Wilwood SX6R Dynamic Front Big Brake Kit features 15-inch drilled and slotted rotors paired with red six-piston calipers, designed to significantly enhance the braking performance of your vehicle. This kit delivers improved stopping power and heat dissipation, making it ideal for both street and track conditions, ensuring safety and control during demanding driving scenarios.

    Construction and Appearance. Equipped with six-piston SX6R calipers constructed with stainless steel pistons and finished in a durable red powder coat, this kit combines performance with style. The Spec-37 iron rotors include a black electro-coat finish and directional drilled and slotted surfaces to optimize cooling. The anodized aluminum hats provide corrosion resistance and a sleek look.

    Installation. Designed for direct bolt-on installation to the factory disc spindle, the calipers use a radial mount system requiring no spindle modifications or drilling. The kit maintains full compatibility with the original master cylinder output and ABS functionality, ensuring proper brake system operation.

    Warranty. This brake kit is backed by a manufacturer’s warranty covering defects in materials and workmanship.

    Application. Specifically engineered to fit 2010 through 2015 Chevrolet Camaro models equipped with a V-6 engine, guaranteeing precise compatibility and optimized performance within this vehicle range.

    Wilwood 140-15431-DR

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Install Details & What's in the Box

    Installation Info

    Installation Time

    (approx) 3 Hours

    Difficulty Level:

    Light to Moderate mechanical skill required.

    Installation Guides

    What's in the Box

    • (2) Brackets – Caliper Mounting
    • (4) Bolts – M14-2.00 × 60mm Long, Hex Head
    • (4) Washers – .578" I.D. × 1.062" O.D. × .063" Thick
    • (12) Shims – .029" Thick
    • (12) Hats – 4.75", .916" Offset, Dynamic Mount Lug Drive
    • (24) Wear Clips – Rotor
    • (2) Rotors – 15.00" Diameter × 1.25" Thick (One Each, Right And Left)
    • (2) Rotors – SRP Drilled And Slotted (One Each, Right And Left)
    • (2) Snap Rings – 8.80" Diameter
    • (2) Calipers – SX6R Speed Xtreme, Black (One Each, Right And Left)
    • (2) Calipers – SX6R Speed Xtreme, Red (One Each, Right And Left)
    • (4) Nuts – 1/2-20, Self-Locking, 12 Point
    • (4) Washers – .515" I.D. × .875" O.D. × .063" Thick
    • (4) Studs – 1/2-13 × 1-1/2" × 3.98" Long (Pre-Installed In Bracket)
    • (16) Shims – .015" Thick
    • (1) Pad Set – ProMatrix Compound, Axle Set
    • (1) Pad Set – BP-10 Compound, Axle Set
    • (1) Braided Stainless Steel Flexline Kit (Not Shown)
