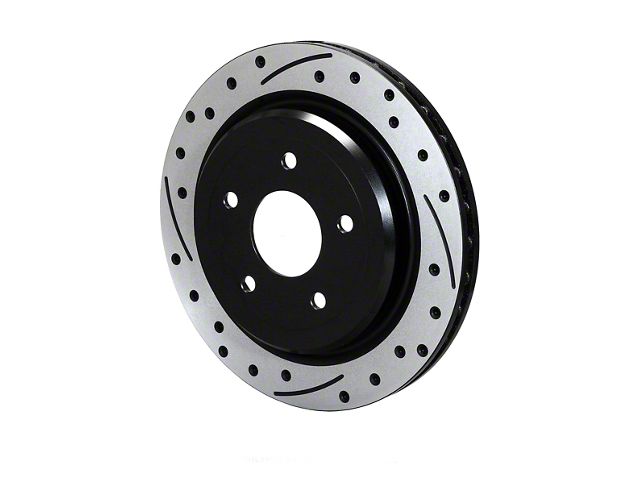

Wilwood SRP Drilled Performance Brake Rotor; Rear Driver Side (97-04 Corvette C5; 05-13 Corvette C6 Base)Find parts that fit my vehicle
Item CV9118
Our Price
$145.57
Military, Medical & First Responders
$7.28 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- SRP Drilled Performance Rotor and Hat
- Rotor Width of 1.03 Inches
- Diameter of 12.01 Inches
- Iron Material Construction
- Vented Vane Design
- Weight of 16.20 Pounds
- Left Hand Mount Side
- Rotor Style Featuring Dimpled and Slotted Surface
- Finished with Black Electro Coat for Corrosion Resistance
- Not Bedded or Balanced
- Lug ID / Registration Diameter of 2.78 Inches
- Far Side Inside Diameter of 8.80 Inches
- Offset Dimension of 0.590 Inches
- Shoe Inside Dimension at 7.48 Inches
- Clearance Inside Diameter of 6.17 Inches
- Wheel Bolt Circle with 5×4.75 Inches Pattern
- Stud Diameter of 0.52 Inches
- Face Thickness of 0.25 Inches
- Fits 1997-2004 Corvette C5 and 2005-2013 Corvette C6 Base Models
| Brand | Wilwood |
| Rotor Location | Rear |
| Rotor Type | Drilled |
Description
Performance Brake Rotor. The Wilwood SRP Drilled Performance Brake Rotor; Rear Driver Side is designed for custom, show, and high-performance sport driving applications. It enhances braking response by reducing pad glaze and minimizing irregular pad build-up, providing a smooth and consistent pedal feel. This rotor is engineered to improve overall braking performance while delivering an aggressive, high-tech aesthetic.
Construction and Appearance. This rotor is precision machined to tight tolerances on long grain carbon iron castings to ensure flatness, parallelism, and minimal radial run-out. It features a drilled and slotted face pattern with vented vanes to improve cooling and pad cleaning. The rotor is finished with a black electro coat that offers durable corrosion resistance and a sleek appearance.
Installation. Installation is straightforward with no additional drilling required, making it accessible for professional mechanics and experienced enthusiasts. This rotor is designed for direct bolt-on replacement in compatible vehicles, simplifying the upgrade process.
Application. This rotor is specifically designed to fit the 1997-2004 Corvette C5 and 2005-2013 Corvette C6 Base models, providing an OE style replacement with enhanced performance features.
Wilwood 160-14041-BK
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
4.7
Reviews of Wilwood Brakes Products (194)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Corvette
- Base - 05, 06, 07, 08, 09, 10, 11, 12, 13
