Edelbrock E-Force Stage 3 Professional Tuner Supercharger Kit (05-09 GT)

Item 100317
Call a Mustang Enthusiast at 1-877-887-1105
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Market Price $5,299.55 You Save 12% ($609.68)
Our Price

$4,689.87 (kit)

FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
In Stock Ships same business day.
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • Stage 3 - Professional Tuner System
    • Tuner Kit - Intended for Race Use Only
    • 646+ HP and 646+ Ft/lbs of TQ
    • 15" Long Runners for Increased Low-End Torque
    • Installs Under the Stock Hood
    • Made in the U.S.A.
    • Requires Custom Dyno Tuning
    • Fits 2005-2009 4.6L 3V GT Mustangs
    More Power! The stock S197 GT Mustangs came with a respectable 300 Horsepower and 320 lb/ft of Torque from the factory, but after installing a E-Force Stage 3 Professional Supercharger Tuner Kit you will be planting a ground pounding 646 Horsepower and 646 ft./lbs of Torque to the pavement (depending on custom tuning and fuel upgrades).

    Tuner Kit. The Edelbrock E-Force Stage 3 Professional Supercharger system includes all of the essential components that a racer or tuner shop would need to build a custom supercharger intended for racing applications. A tuner kit provides the flexibility of choosing the correct pulley, cold air intake, or other performance parts for your specific setup and needs to create your very own supercharged Mustang. Custom dyno tuning is required for operation.

    Unique Design. The heart of the E-Force Supercharger is the all new Eaton Gen VI TVS® Supercharger rotating assembly that has been integrated into the intake manifold for a seamless design with minimal components to eliminate the possibility of vacuum leaks. Edelbrock's unique inverted supercharger assembly is placed low in the valley allowing for 15" long intake runners for maximizing low end torque.

    Stay Cool. Edelbrock uses the largest intercooler available. Keeping the air cool is a 110 square inch high capacity air-to-water intercooler and full face low temperature heat exchanger, making it "coolest running supercharger" on the market today.

    Breathe Easier. The E-Force Stage 3 Supercharger system breathes easy through a specially designed 85mm electronic throttle body that is matched to the most efficient and unique inlet configuration on the market today for a shorter less restrictive intake path for improved air flow.

    Application. This E-Force Stage 3 Professional Supercharger Tuner Kit is specifically designed for use on the 2005 to 2009 GT Mustangs equipped with the 4.6L V8 modular engine.Not legal for sale or use on pollution controlled motor vehicles, intended for competition race use only.

    • 646 HP and 646 ft./lbs of TQ at 13-14 lbs. of boost
    • 2300cc (140 cubic inch) Eaton® TVS® GEN VI rotor assembly
    • 110 square inch high capacity air-to-water intercooler
    • Fully Machined 85mm Round Electronic Throttle Body
    • Unique intake manifold design with 15" long runners for increased low-end torque
    • 100,000 mile self-contained oiling system
    • Installs under the stock hood
    • Designed, cast and made in the USA
    • Will clear 2008-2009 Bullitt strut tower brace
    • Custom dyno tuning is required for operation

    Fitment: 2005 2006 2007 2008 2009 Details

    MPN# 1585

    CA Residents: WARNING: Cancer and Reproductive Harm -

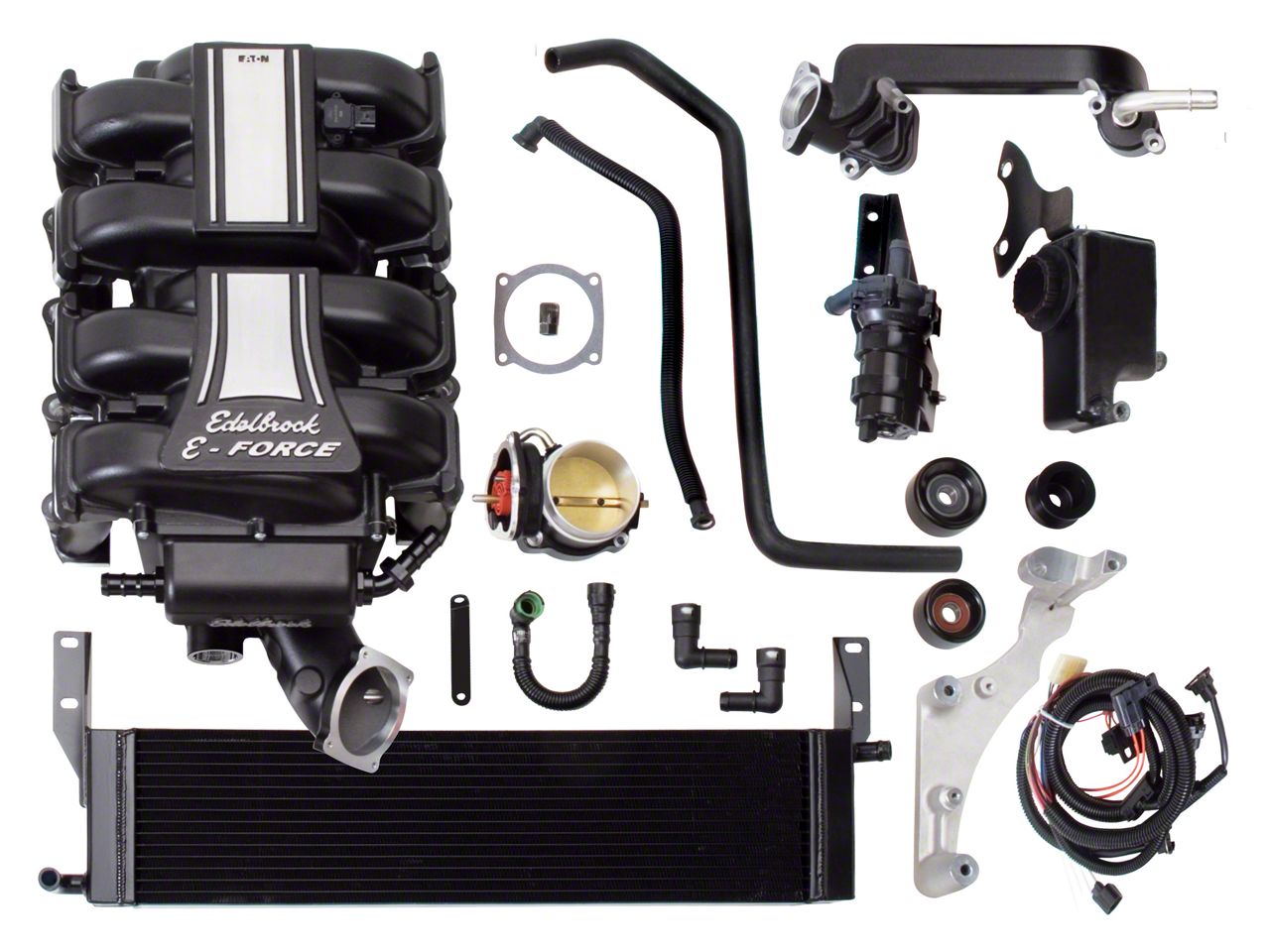

    What's in the Box
    • Supercharger Manifold Assembly (Featuring Eaton TVS Rotors)
    • 85mm Electronic Throttle Body
    • Cast Aluminum Front Drive Bracket
    • Steel Belt Tensioner Brace
    • Cast Aluminum Water Crossover
    • Large 110 Sq-in Intercooler
    • Dual Core Low Temp. Heat Exchanger for Intercooler System
    • Electric Intercooler Water Pump
    • Intercooler Recovery Tank
    • Custom Molded Intercooler Hoses
    • Steel Idler Pulleys With Heavy Duty High Speed Bearings
    • Plug & Play, Electrical Harness & Installation Hardware
    Installation Info
    Tech Specs
    Will it fit my Mustang?

      Customer Photos

        Questions & Answers (15)

        5 Top Rated Questions

        No other engine mods are needed? I do not need to replace the stock pistons, rods, or cams?

        • Our stock internals are only good to about 450 hp or so before things start to go boom. If you purchase this tuner, or build it yourself, kit you will need to purchase pretty much everything that is included in the stage 2 kit. Injectors, cold air intake or use your stock air filter with an upgraded mass airflow meter, dual fuel pump, higher hp rated spark plugs, a 2.75 inch pulley etc etc.. The difference being that you can chose your own brands and quality. Over 450 hp will require rods and pistons at least, our stock cranks are only good to about 600 hp, you might consider a forged rotating assembly if you wish to go with the stage 3 tuner kit. Then there is our stock tr-3650 transmissions, which are only rated to 350 ft/lbs of torque, pushing over 600 horse on the tr-3650 would be asking for trouble. American Muscle sells the Tremec T-56 Magnum XL transmission that will bolt right up to the 4.6 3v engine with the addition of an upgraded 26 spline clutch and 1 piece driveshaft, and is rated at 700 ft/lbs of torque.

        Helpful (3)

        Does this kit fit a 2009 GT with Automatic Transmission ?

        • Yes, as long as you have an 05-09 GT, this will indeed work for your application.

        Helpful (2)

        Can this be use for daily ?

        • The Edelbrock E-Force Stage 3 Professional Tuner Supercharger Kit is intended to generate 640+ Horsepower which is adaptable for some drivers. You will need to learn the new throttle sensitivity which learning to control your vehicles cruising ability. Its also important to mention that adding this system will sacrifice numerous miles per gallon (MPG) which may not be suitable for your commute. However, if you are a person who likes to enjoy their drive every time they turn on their car, this is absolutely something I would recommend.

        Helpful (0)

        Why is this indented for race only ? Can you not daily drive with it ?

        • Due to the power output of this kit we would recommend this for race applications only and not for use as a daily driver.

        Helpful (0)

        Why won’t this kit fit a 2010 4.6 3v Mustang GT?

        • This kit will only work with the 05-09 Modes and will not work in conjunction with the 2010 GT's as there are different internal components.

        Helpful (0)
        Post Your Question
        10 More Questions
        Hello, I am looking for something to increase my horsepower but not sure what else I need with this kit. Do I get a list of parts I also need in addition to what is supplied? not what is recommended but more of what is necessary to prevent engine damage? injectors? pulleys? not what is recommended but items that are absolutely necessary 1 answer
        Will this work with stock internals? 1 answer
        Good day!where to find the installation instructions? 1 answer
        Hello. please tell me how much weight this kit? 1 answer
        Hello!what is the weight of the whole set with packing? 1 answer
        Does this kit come with everything you need to install on a stock 4.6? 1 answer
        What performance parts of any, do I need to put in my stock 2007 mustang gt to make this supercharger work? 1 answer
        I have read a lot of varying opinions online about high HP gaining mods like this one and understand that key parts like the crankshaft, pistons, valves, heads, etc., are not engineered to handle increases over 450HP lasting over long periods of time (years) / '000s of miles and can shorten the life of the engine. Please comment. 1 answer
        What makes this kit make more power? basicallynim asking if i get one of the lower power kits after i get forged internals what makes this kit a bigger power boost? Pulley? Tune? Intercooler? 1 answer
        BAMA mail tune? If I provide product details i.e. size of injectors, fuel pump specifications and additional modifications can BAMA mail me a tune that will allow me to drive approximately 1000 miles to get to a tuner? 1 answer

          Customer Reviews (1) Write a Review

          Overall Rating 5

          out of 5 stars

          Installation Time:Full Day

          • Performance Gain 5 5
          • Fit 5 5

          • 5/5

            Installation Time: Full Day

            February 20, 2016

            Good kit

            I was amazed at how well this kit was put together. It had everything in it and the directions were super easy to follow. Took a friend and I about 8 hours to install. There is even a special tool included to remove the pulley off the alternator, it's just a really good kit. It goes in for the dyno tune in 2 days and I'm expecting some really good numbers.


            Year: 2006 Submodel: GT Fayetteville NC

            Helpful (53)
