Edelbrock E-Force Stage 1 Street Supercharger Kit w/o Tuner (05-09 GT)

Market Price $5,966.25 You Save 12% ($686.38)
Our Price


FREE Shipping

  • Item 390946

Will this fit your Vehicle?

Change Vehicle Help?
In Stock Ships same business day.
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • Stage 1 - Street System Without Tuner
    • 466 Horsepower and 439 ft/lbs of Torque at 5 lbs. of Boost
    • Supercharger Manifold Assembly - Featuring Eaton TVS Rotors
    • 15" Long Runners for Increased Low-End Torque
    • Dual Core Low Temperature Heat Exchanger for Intercooler System
    • Installs Under the Stock Hood- Maintains Stock Accessories
    • Does Not Include a Handheld Tuning Device
    • Emissions Legal in 50 States (When Used with the Correct Edelbrock Tune)
    • CARB E.O.# D-215-77 (With Edelbrock's Tune)
    • Made in the U.S.A.
    • Fits 2005-2009 4.6L 3V GT and Bullitt Mustangs
    More Power for More Fun! Making a very respectable 300 Horsepower and 320 lb/ft of Torque straight off the showroom floor, the 4.6L V8 powered GT Mustang is already a blast to drive. But after installing an Edelbrock E-Force Stage 1 Street Supercharger you will have an outstanding 466 Horsepower and 439 ft/lbs of Torque for a lot more fun. Edelbrock's unique Supercharger was designed for maximum low end torque and instant throttle response, with minimum engine stress. Best of all you make all this extra power while only running 91 octane, with little to no decrease in fuel economy.

    Unique Supercharger Design. The heart and soul of Edelbrock's E-Force Supercharger is the Eaton Gen VI 2300 (140 cubic inch) TVS Supercharger rotors. The Eaton Gen VI features a unique four lobe design with a full 160° of twist to provide maximum flow, minimum temperature rise, quiet operation, and everyday reliability. The inverted design places the supercharger down low in the valley, allowing for 15" long intake runners to maximize low end torque.

    Stay Cool. Edelbrock uses the largest intercooler available. Keeping the incoming air cool is a 110 square inch high capacity air-to-water intercooler and full face low temperature heat exchanger. This setup makes the Edelbrock E-Force Supercharger the coolest running supercharger on the market today for the 2005-2009 GT Mustang.

    Breathe Easier. The E-Force Stage 1 Supercharger system breathes easy through a specially designed 85mm electronic throttle body that is matched to the most efficient and unique inlet configuration on the market today for a shorter less restrictive intake path for improved air flow.

    Kit Includes. Edelbrock's E-Force Stage 1 Street Supercharger System arrives ready to be installed. The highlights of this kit include Edelbrock's Supercharger Manifold Assembly that features Eaton TVS Rotors, a 3.875" Pulley, a Dual Core Low Temperature Heat Exchanger with 110 Sq-in Intercooler, Goodyear® Gatorback™ Serpentine Belt, an Electric Intercooler Water Pump, Extruded Aluminum Fuel Rails with 41 lb/hr Fuel Injectors and a 85mm Electronic Throttle Body. Please note that

    no Tuning Device is include in this kit.

    Required Upgrades. Installation of this Edelbrock E-Force Stage 1 Street Supercharger Kit on a 2005-2006 GT will require the use of an Edelbrock Cooling Upgrade kit, part# 15804. Installation on a 2009 GT will require the use of an Edelbrock Hardware Kit, part#15805.

    50 State Legal. Unlike the competitors, Edelbrock's E-Force Stage 1 Street Supercharger is 50 state emissions legal under Carb E.O# D-215-77. The Supercharger Kit is

    only street legal in 50 states when the correct Edelbrock tune is applied. Please Note, Custom tuning is required for this Supercharger System if not using Edelbrock's tune.

    Application. This Edelbrock E-Force Stage 1 Street Supercharger Kit without Tuner is specifically designed for use on the 2005-2009 GT and Bullitt Mustangs equipped with the 3V Modular 4.6L V8 engine. Will clear the strut tower brace found on 2008-2009 Bullitt models.

    Please Note. Edelbrock Supercharger Systems are built to order for our customers. Because of this there is a 14 business day lead time once an order is placed.

    Fitment: 2005 2006 2007 2008 2009 Details

    MPN# 15800

    CA Residents: WARNING: Cancer and Reproductive Harm -

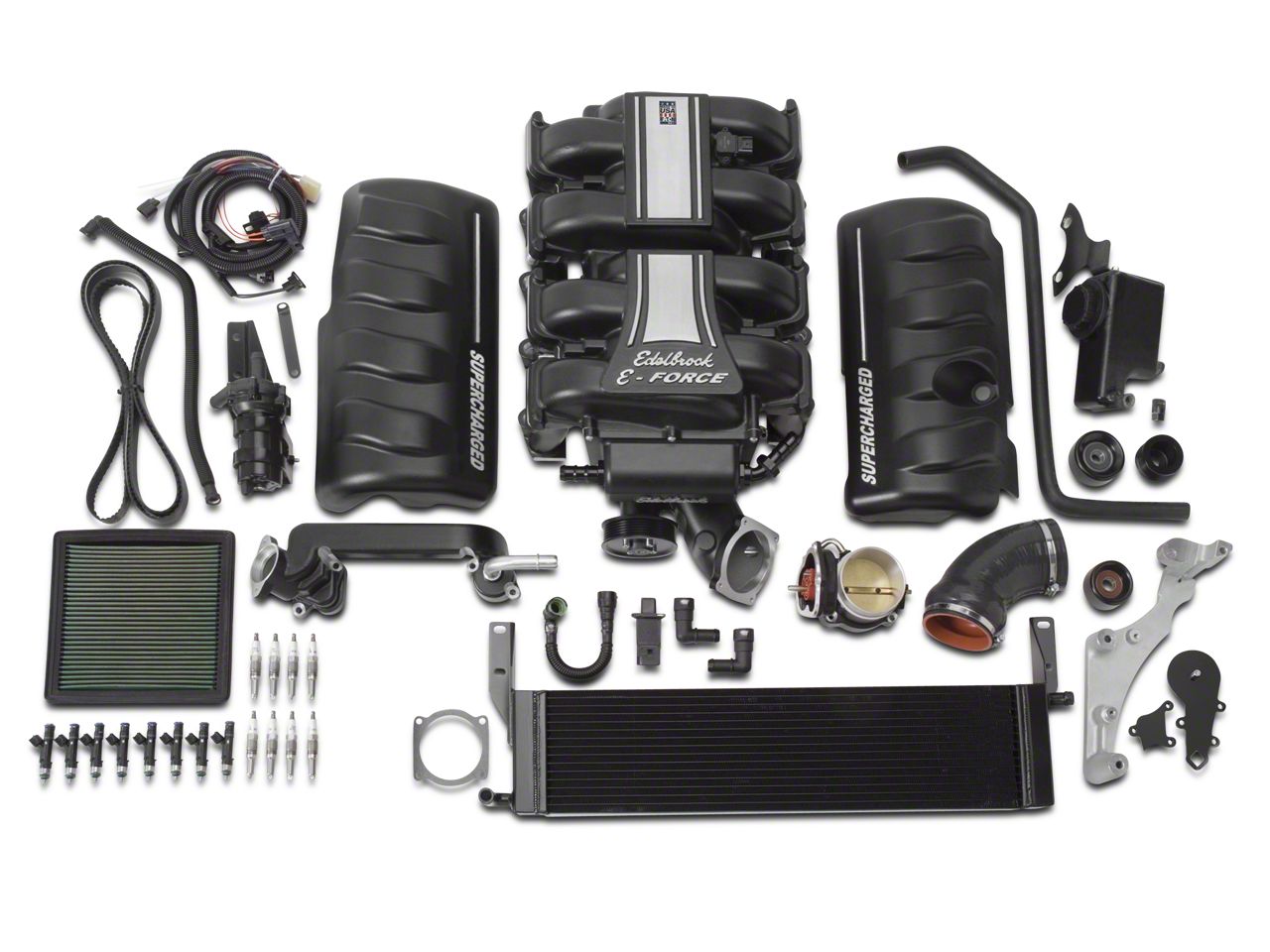

    What's in the Box
    • Supercharger Manifold Assembly (Featuring Eaton TVS Rotors)
    • 85mm Electronic Throttle Body
    • Cast Aluminum Alternator/Idler Bracket
    • Steel Belt Tensioner Brace
    • Cast Aluminum Water Crossover
    • Large 110 Sq-in Intercooler
    • Dual Core Low Temp. Heat Exchanger for Intercooler System
    • Goodyear Gatorback Serpentine Belt
    • Electric Intercooler Water Pump
    • Intercooler Recovery Tank
    • Custom Molded Intercooler Hoses
    • Fuel Injectors (41lb/hr)
    • 3.875" Supercharger Pulley
    • HTO Spark Plugs for 2005-Early 2008 Models
    • Steel Idler Pulleys With Heavy Duty High Speed Bearings
    • High Flow Panel Air Filter for Stock Airbox
    • Extended Range, Drop-In Style, MAFS
    • Edelbrock Aluminum Engine Covers
    • Plug & Play, Electrical Harness & Installation Hardware
    Installation Info
    Tech Specs
    Will it fit my Mustang?

      Customer Photos

        Questions & Answers (14)

        5 Top Rated Questions

        would this kit compliment my ford racing hot rod cams or could i potentially blow the engine. My thought was after i install this myself, because i don't trust anyone to work on my car except me, to take it to a dyno shop and get a custom tune put in, but i'd like to run 8-10 psi. would this kit be adequate or should i go with the tuner kit.

        • This supercharger, or really any of the superchargers we sell, would not compliment those cams being as those Camshafts are specifically designed for Naturally Aspirated applications. You would want to look into a camshaft that is specifically designed for a supercharger for a complimentary camshaft for this application.

        Helpful (1)

        Does this kit come prefilled with supercharger oil ?

        • We do not ship this with the oil already installed inside of it, as we would not be able to guarantee that it would be safely shipped with the oil inside of it. This does not come with oil and would need to be oiled once it arrives. This is much safer than shipping with the oil installed.

        Helpful (0)

        Why do you contradict yourselves? In one question you say not use this with hot rod cams. Then further down you say it will work great with them. So what it is it? Yes or no on the hot rod cams.

        Does this kit come with a new fuel pump or does it work with the stock pump

        • Unfortunately, this kit will not include a new fuel pump. The stock fuel pump is compatible with this supercharger, however, we would recommend using a voltage booster like this one here by MSD

        Helpful (0)

        If I go with changing my gears to 3.73 and get a Bama X4/sf4 tuner, will I be able to use this tuner with the Edelbrock SC? Will I have to pay more for the tune? I ask b/c the Edelbrock SC w/ tuner is $600 more. Is the tuner the only difference or the tuner plus the tune?

        • We are currently unable to tune for Supercharged vehicles at this point in time with Bama tunes. You would need a custom tune as this is required for this Supercharger System as the tune is only street legal once the correct tune is applied.

        Helpful (0)
        Post Your Question
        9 More Questions
        Couple questions, I have an 07 Shelby GT that comes stock with a cold air intake. What would I need to order in conjunction with this kit? Next question would be I see that two asked if this SC would work with the Ford Hot Rod cams and I saw two answers that contradicted each other; will this kit work with the Ford Hot Rod cams? 1 answer
        I'm thinking of upgrading the cams to either the Comp Cams Thumpers or Ford Performance Hot Rods. Will these work with the Edelbrock E-Force? 1 answer
        I currently have a Steeda CAI and underdrive pulley, will I be able to use them? 1 answer
        i have a 2005 gt with Ford performance cams and a Bama x4/sf4 will this turner support the edelbrock e-force stage 1 supercharger and can you run these cams with this supercharger ?? 1 answer
        So this super charger is made to run on stock internals? And it comes with everything that I need to install and go.? 1 answer
        I have the diablosport intune tuner. My question is would I be able to get the edelbrock tunes for this kit and use the intune tuner? Or since my tuner was bought with Bama tunes I could get them to send tunes and keep is CARB legal as I live in California? 1 answer
        I have an SCT xcaliber2 tuner. Will that work for tuning this s/c? 1 answer
        will I be able to keep my roush CAI installed with this supercharger? 1 answer
        Hi, I have the automatic transmission I'm my GT 2007 if a mount this kit, will the transmission hold for it? 1 answer

          Customer Reviews (2) Write a Review

          Overall Rating 5

          out of 5 stars

          • 5/5

            September 18, 2016

            It's OVER 1000! HP!!!

            I wonder if it was a good idea to get a newer mustang gt or just keep spending on the engine. I don't regret anything! The amount of hp you get is crazy. It is a must to get. Runs smooth and everything is amazing. I had it installed at a shop and even they were amazed!


            Year: 2007 Submodel: GT

            Helpful (25)

          • 5/5

            September 17, 2016


            Very nice mod. Really adds a lot of power to that gt


            Year: 2007 Submodel: GT

            Helpful (19)
