Installation Time
(approx) 5 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

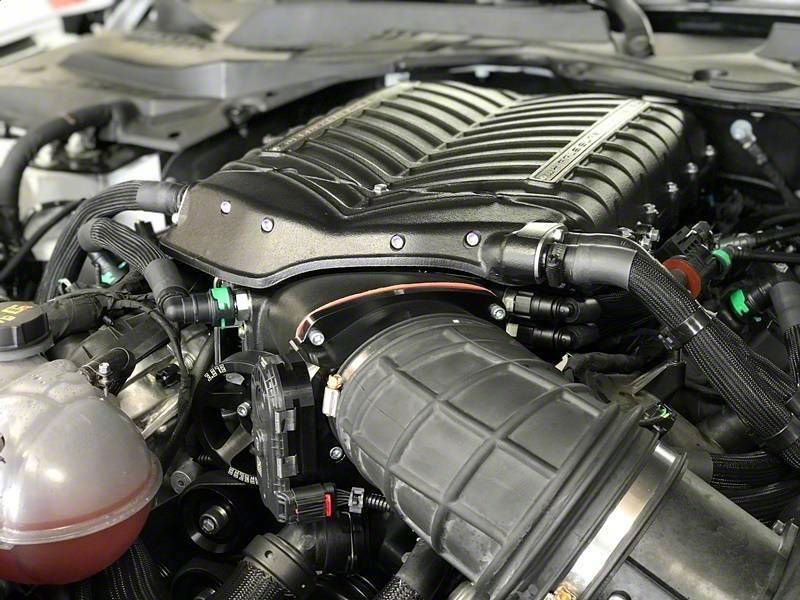

Whipple Gen 5x W185AX 3.0L Intercooled Supercharger Tuner Kit; Black; Stage 2 (15-17 Mustang GT)Find parts that fit my vehicle
Item 460625
Our Price
$9,449.99 kit
Military, Medical & First Responders
$472.50 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- 50-State Legal, CARB EO D-231-55
- Up To 825 HP And 640 Ft-LB Of Torque On 93 Octane
- Most Powerful 50-State Legal Whipple System Available For The 2015-2017 Mustang GT Platform
- No Other Upgrades Required, Just Massive Power Right Out Of The Box
- Whipple Gen 6 W185ax 3.0L Twin-Screw Supercharger
- Stage 2 System With Billet 132mm Crusher Throttle Body
- Front Entry Whipple Design That Significantly Outperforms Smaller 1.9L And 2.3L Roots-Type Systems
- 3.0L Displacement Is 30% Larger Than 2.3L Roots-Style Systems, Allowing Lower Power Consumption And Lower Discharge Temperatures While Moving The Same Amount Of Air
- Oversized Crusher™ Inlet For Maximum Airflow Capacity And Minimal Rotor Cavitation
- Unique Roval 150mm Inlet Design For Increased Airflow Capacity
- Billet 132mm Roval Throttle Body For Increased Airflow And Improved Power Potential
- More Boost At The "Hit" Than Other Twin-Screw Systems
- Flat Torque Curve For Incredible Acceleration
- Patented Dual Core, Dual Pass Intercooler System For Industry-Leading Air Temperatures
- Front-Feed Design Allows For An Oversized Intercooler Core Compared To Smaller Competing Systems, Helping Reduce Air Charge Temperatures And Support More Boost And Timing On Pump Gas
- Largest Air-To-Water Aluminum Bar-Plate Intercooler In The Industry, Offering Over 33% More Core Size Than Competing Positive Displacement Systems
- Massive Oversized Aluminum Intercooler Reservoir Holds Over 2 Gallons For Longer, More Consistent Power Under Demanding Conditions
- Massive Heat Exchanger With High Flow Intercooler Pump For Unmatched Cooling Capacity
- Oversized Heat Exchanger System Offers Approximately 150% More Volume Than Competing Systems
- Whipple Superchargers Massive Oversized Intercooled Air-Bypass System For Reduced Burst Knock, Lower Parasitic Loss, And Excellent Fuel Economy
- Self-Contained Oversized Oil System For Reduced Oil Temperatures In Demanding Conditions
- Billet Fuel Rails With 55LB/HR Fuel Injectors
- Included DW400 Fuel Pump Upgrade For Added Fuel Delivery Capacity
- HP Tuners MPVI4 Flash Tool With Whipple Calibration Support
- Spark Plugs Included
- No Cutting Or Grinding On The Engine Block
- No Cutting Or Grinding Of The K-Brace
- No Internal Modifications Required
- Completed Installation Looks Factory Installed, Not Some Cobbled Together Kit With Multiple Billet Adapters
- Kits Come Complete With All Necessary Parts And Hardware For Installation
- Plug And Play Wiring With Male And Female Connections
- Proven 6-Rib Belt System With Heavy Duty Spring-Loaded Tensioner And Adjustable Idler System
- Easy Belt Changes
- Lightweight Pocketed Aluminum SC Pulley
- Optional 10-Rib Belt System With Matching Billet Pulleys
- Easily Upgradeable With Larger Intercooler Pumps, Dual Electric Spal 11" High Speed Fans, And Optional Supercharger Pulleys
- Instant Boost At The Touch Of The Throttle
- 3 Minute Pulley Changes
- Fits 15-17 Mustang GT
Description
High-Performance Supercharger. The Whipple Gen 6 W185AX 3.0L Intercooled Supercharger Tuner Kit; Black; Stage 2 is designed to significantly enhance the power and torque of your Mustang GT. It provides immediate throttle response and strong torque delivery, transforming the driving experience on the street by optimizing airflow and boost with precision engineering.
Construction and Appearance. This system features high-quality billet aluminum components including a 132mm Crusher throttle body and 3.0L twin-screw supercharger rotors. The unit is built with a combination of robust materials to ensure durability and reliability, with a finish that maintains a clean, professional, and factory-installed appearance once installed.
Installation. Installation is straightforward with no need for cutting, grinding, or internal engine modifications. The system includes all necessary hardware and plug-and-play wiring, simplifying the process for professional installers.
Application. Specifically engineered to fit the 2015 to 2017 Mustang GT models, this supercharger kit offers a powerful, legal upgrade tailored to the exact requirements of this generation without compromise.
Whipple WK-2620-STG2-30-NFT
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Intercooled Supercharger Tuner Kit
Tech Specs
4.5
Customer Reviews (2)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Mustang
- GT - 15, 16, 17
