Installation Time
(approx) 6 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

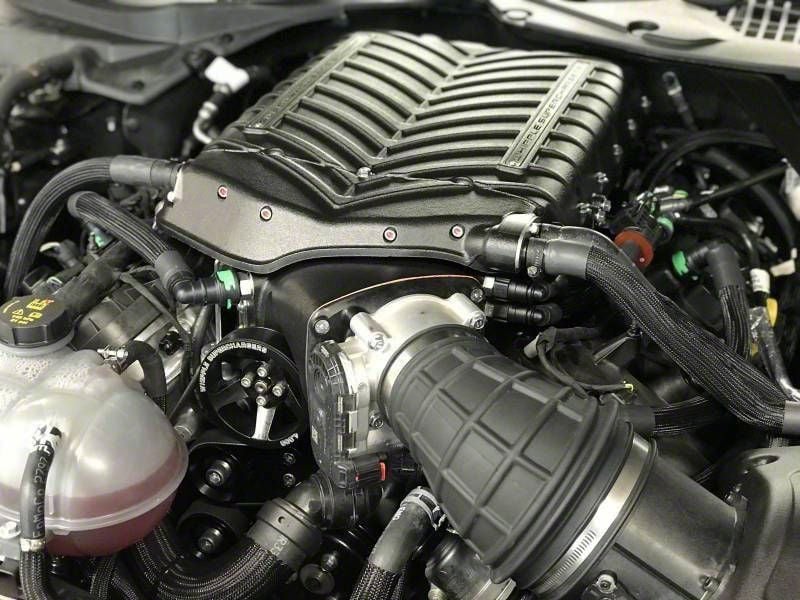

Whipple Gen 6 W185AX 3.0L Intercooled Supercharger Kit; Black; Stage 1 (22-23 Mustang Mach 1)Find parts that fit my vehicle
Item 460629
Our Price
$9,199.99 kit
Military, Medical & First Responders
$460.00 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- 50-State Legal Performance, CARB EO D-231-105
- Up To 765 Flywheel HP And 640 FT-LB Of Torque On 93 Octane
- No Other Upgrades Required, Just Massive Power Right Out Of The Box
- Front Entry Gen 6 W185ax 3.0 Liters/3000cc Twin-Screw Supercharger
- Stage 1 System Designed To Work With The Stock Mach 1 Throttle Body
- Generation 6 Design Features All-New Bearings, Gears, Rotors, And Housing For Improved Efficiency And Reliability
- Advanced 3x4 Rotor Combination With 285° Helix Angle For Improved Airflow And Efficiency Across The RPM Range
- Front Entry Gen 6 Design Outperforms Smaller 2.3L And 2.65L Roots-Type Systems
- 3.0L Is 13% Larger Than 2.65L Roots-Type Systems, Allowing Lower Power Draw And Lower Discharge Temperatures While Moving The Same Amount Of Air
- Oversized Crusher™ 150mm Inlet For Maximum Airflow Capacity And Minimal Rotor Cavitation
- Expansive 150mm Roval Inlet Supports Throttle Bodies From Standard 80mm To Larger 132mm Or 150mm Options
- Exclusive 3x4 Rotor Combo For Significant Increase In Airflow Compared To Less Efficient 4x4 Roots Designs
- More Boost At The "Hit" Than Other Twin-Screw Systems
- Flat Torque Curve For Incredible Acceleration
- Largest Intercooler System Featuring Patented Dual-Core, Dual-Pass Technology
- Patented Dual-Core, Dual-Pass Intercooler Surpasses Cooling Capability Used In Cobra Jet And Record-Setting S550 Mustangs
- Inverted Design Allows For Oversized Intercooler Core, Lowering Air Charge Temperatures And Supporting More Boost And Timing On Pump Gas
- Massive Air-to-Water Aluminum Bar-Plate Intercoolers Provide Over 55% More Cooling Size Than Some Competitors
- High Flow Intercooler Pump With Nearly Double The Flow Of Standard Units
- Oversized Heat Exchanger With 150% More Volume Than Competition For Superior Intercooler Water Temperatures
- Extra Plenum Volume Below Intercooler Core For Less Pressure Drop And Better Use Of Increased Intercooler Surface Area
- Massive Oversized Intercooled Air-Bypass System For Reduction Of Burst Knock And Improved Fuel Economy
- HP Tuners MPVI4 Flash Tool With Calibration Support
- Billet Fuel Rails With High Flow Dual-Beam Fuel Injectors
- IAT2 Harness And Sensor Included For Post-Intercooler Air Temperature Monitoring
- Exclusive PCM Calibration Support For Proper Integration
- Fits Under Factory Hood With No Modifications
- No Cutting Or Grinding On Engine Block Or K-Brace
- Complete Kit With All Necessary Parts And Hardware For Installation
- Plug And Play Wiring With Male And Female Connections
- Proven 6-Rib Belt System With Heavy Duty Spring Loaded Tensioner And Adjustable Idler
- OEM Quick Connect Fittings For Easy Installation
- Optional 10-Rib Belt System With Matching 6061 T6 Billet Pulleys Available
- Instant Boost At The Touch Of The Throttle
- Lightweight Pocketed 6061 T6 Billet Aluminum Supercharger Pulley
- Colder Iridium Spark Plugs Included
- Fits 22-23 Mustang Mach 1
Description
High-Performance Supercharger Kit. The Whipple Gen 6 W185AX 3.0L Intercooled Supercharger Kit; Black; Stage 1 delivers a powerful and efficient upgrade that significantly boosts the 5.0L Mustang Mach 1’s horsepower and torque. Engineered for instant torque and sharp throttle response, this supercharger system enhances street performance with refined drivability and improved acceleration throughout the RPM range.
Construction and Appearance. Crafted with precision, this kit features a twin-screw supercharger with advanced 3x4 rotors and an oversized Crusher™ 150mm inlet for maximum airflow. The system integrates an all-new patented dual-core, dual-pass aluminum bar-plate intercooler with a high-flow pump and oversized heat exchanger, finished in a durable textured black coating for both protection and aesthetic appeal.
Installation. Installation includes all necessary hardware, requiring no cutting or grinding to the engine block or K-brace. Plug-and-play wiring and OEM quick-connect fittings simplify the process, making it accessible for enthusiasts with moderate mechanical skills.
Warranty. This product is backed by a manufacturer’s warranty to ensure quality and reliability.
Application. Specifically designed to fit the 2022-2023 Mustang Mach 1 5.0L without modification, offering a direct upgrade for enhanced performance while maintaining street legality.
Whipple WK-2629-STG1-30
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Whipple Gen 6 3.0L Supercharger Unit
- (1) Air-to-Water Intercooler System
- (1) Stage 1 Calibration and Tuning Device
- (1) High-Flow Fuel System Upgrade
- (1) Cold Air Intake System
- (1) Hardware Kit
Tech Specs
4.3
Customer Reviews (4)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Mustang
- Mach 1 - 22, 23
