Installation Time
(approx) 6 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

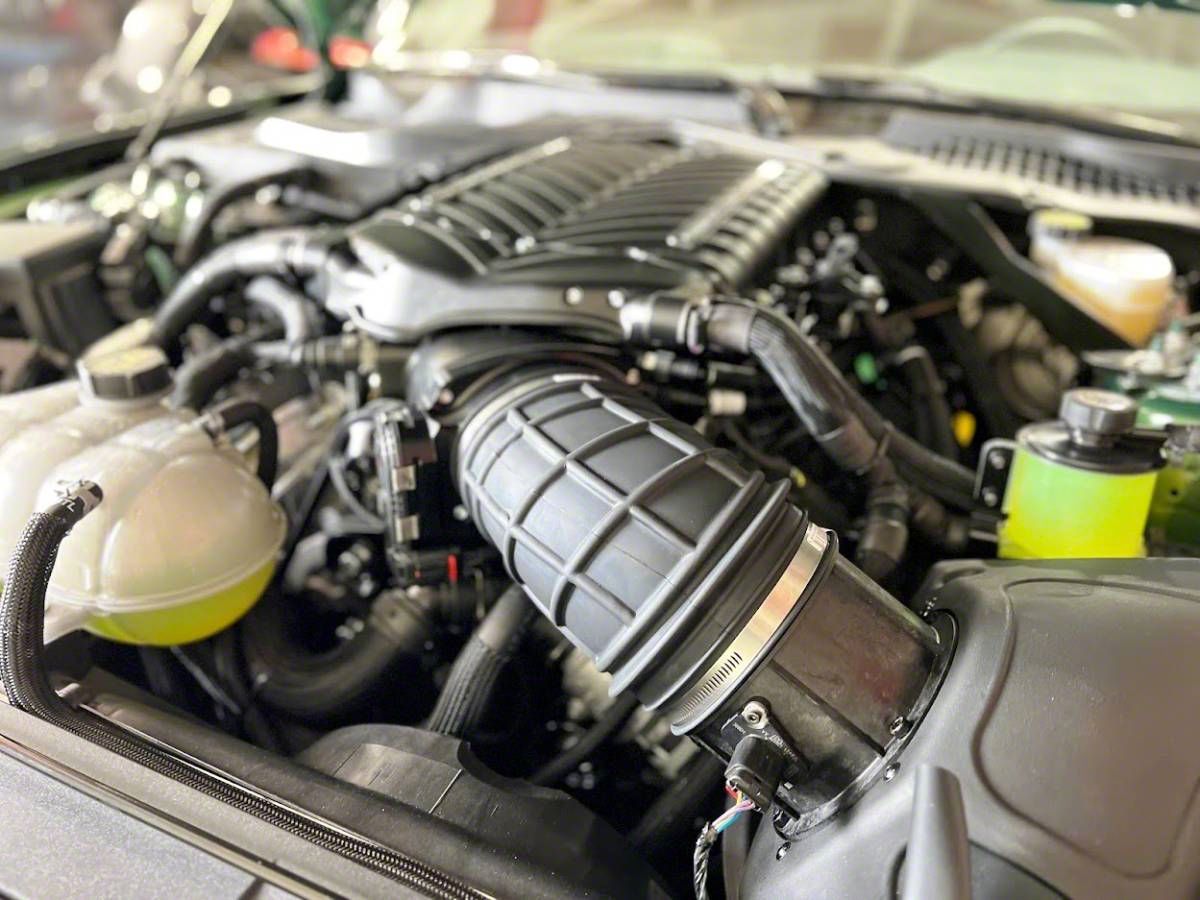

Whipple Gen 6 W185AX 3.0L Intercooled Supercharger Kit; Black; Stage 2 (22-23 Mustang Mach 1)Find parts that fit my vehicle
Item 460631
Our Price
$9,799.99 kit
Military, Medical & First Responders
$490.00 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- 50-State Legal Performance, CARB EO D-231-105
- Up To 825 Flywheel HP And 655 FT-LB Of Torque On 93 Octane
- No Other Upgrades Required, Just Massive Power Right Out Of The Box
- Front Entry Gen 6 W185ax 3.0 Liters/3000cc Twin-Screw Supercharger
- Stage 2 System With Billet 132mm Roval Throttle Body
- Generation 6 Design Features All-New Bearings, Gears, Rotors, And Housing For Improved Efficiency And Reliability
- Gen 6 Supercharger Features New 3x4 Rotor Combination For Increased RPM Capacity, Large Diameter For Increased Airflow, Small Leak Path, And Increased Helix For Optimal Sealing
- Front Entry Gen 6 Design Significantly Outperforms Smaller 2.3L And 2.65L Roots-Type Systems
- 3.0L Is 13% Larger Than 2.65L Roots-Type Systems, Allowing Lower Power Draw And Lower Discharge Temperatures While Moving The Same Amount Of Air
- Oversized Crusher™ 150mm Inlet For Maximum Airflow Capacity And Minimal Rotor Cavitation
- Billet 132mm Roval Throttle Body
- Expansive 150mm Roval Inlet Caters To A Wide Range Of Throttle Bodies, From The Standard 80mm To The Larger 132mm Option
- Exclusive 3x4 Rotor Combo For Significant Increase In Airflow Under The Curve Compared To Less Efficient 4x4 Roots Designs
- More Boost At The Hit Than Any Other Twin-Screw
- Flat Torque Curve For Incredible Acceleration
- Largest Intercooler System On The Market, Featuring Patented Dual Intercooler, Dual Pass Technology
- Patented Dual-Core, Dual-Pass Intercooler Surpasses Even The Substantial Cooling Capability Used In Cobra Jet And Record-Setting S550 Mustangs
- Inverted Design Allows For Oversized Intercooler Core Compared To Smaller Competing Systems, Helping Lower Air Charge Temperatures And Support More Boost And Timing On Pump Gas
- Massive Air-To-Water Aluminum Bar-Plate Intercoolers Offer More Cooling Than Smaller Positive Displacement Systems, With Over 55% More Size Than Some Competition
- High Flow Intercooler Pump, Nearly Double The Flow Of The Standard Units Others Use
- Massive Oversized Intercooled Air-Bypass System For Industry Leading Reduction Of Burst Knock And Incredible Fuel Economy
- Extra Plenum Volume Below Intercooler Core For Far Less Pressure Drop And Better Use Of The Increased Surface Area Of The Massive Intercooler Core
- Oversized Heat Exchanger For Incredible Intercooler Water Temps, 150% More Volume Than Competition, Standard With Every Kit
- HP Tuners MPVI4 Flash Tool With Calibration Support
- High Flow, Dual-Beam Fuel Injectors Versus Stock Injectors
- IAT2 Harness And Sensor Included For Post-Intercooler Air Temperature Monitoring
- Colder Iridium Spark Plugs Included
- Fits Under Factory Hood With No Modifications
- No Cutting Or Grinding On The Engine Block
- No Cutting Or Grinding The K-Brace
- Kits Come Complete With All Necessary Parts And Hardware For Installation
- Plug And Play Wiring With Male And Female Connections
- Proven 6-Rib Belt System With Heavy Duty Spring Loaded Tensioner And Adjustable Idler System
- Optional 10-Rib Belt System With Matching 6061 T6 Billet Pulleys
- OEM Quick Connect Fittings For Easy Installation
- Instant Boost At The Touch Of The Throttle
- Easy Belt Changes
- Lightweight Pocketed 6061 T6 Billet Aluminum SC Pulley
- Fits 22-23 Mustang Mach 1
Description
Powerful Twin-Screw Supercharger. The Whipple Gen 6 W185AX 3.0L Intercooled Supercharger Kit Black Stage 2 delivers up to 825 flywheel horsepower and 655 lb-ft of torque on 93 octane fuel, providing substantial power gains for the 2022-2023 Mustang Mach 1 5.0L. It vastly improves throttle response and torque, offering immediate acceleration and broad torque delivery, ideal for both street and performance driving.
Construction and Appearance. This supercharger features a front-entry Gen 6 design with all-new bearings, gears, rotors, and housing for improved durability and efficiency. The 3.0L twin-screw unit incorporates a billet 132mm Roval throttle body and an oversized 150mm Crusher™ inlet. The system includes massive air-to-water aluminum bar-plate intercoolers with patented dual-core, dual-pass technology for superior cooling, finished in a durable and sleek coating suitable for under-hood installation without any modifications.
Installation. Installation is straightforward and requires no cutting or grinding on the engine block or K-brace. The kit comes complete with all necessary parts, hardware, and plug-and-play wiring connections, facilitating a mostly bolt-on process suitable for experienced enthusiasts and professionals alike.
Application. Designed specifically for the 2022-2023 Ford Mustang Mach 1 equipped with a 5.0L engine, this Stage 2 kit fits perfectly under the factory hood with no need for modifications.
Whipple WK-2629-STG2-30
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Whipple Gen 6 3.0L Supercharger Unit
- (1) Air-to-Water Intercooler System
- (1) Stage 2 Calibration and Tuning Device
- (1) High-Flow Fuel System Upgrade
- (1) Throttle Body and Cold Air Intake
- (1) Hardware Kit
Tech Specs
4.3
Customer Reviews (4)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Mustang
- Mach 1 - 22, 23
