Radar Blind Spot System with Cross Traffic Detection (Universal; Some Adaptation May Be Required)

Item CH30190
1 Reviews
Our Price

$774.99 set

Military, Medical & First Responders $38.75 Available in AM Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Retrofit Radar Blind Spot Monitoring And Detection System
      • Works Like, And Better Than, Original Equipment-Based Systems
      • Compatible With Any Vehicle With Plastic Fascias (Excludes Metal Bumpers)
      • Based On Automaker-Validated Original Equipment Components
      • True OEM-Like Fit, Finish, And Performance
      • Cross Traffic Detection Included, First In Aftermarket Solutions
      • Eliminates 95% Of False Triggers Common In Other Systems
      • Uses Radar Instead Of CAN Or GPS For Accurate Vehicle Speed
      • Blind Spot Detection Illuminates When Vehicle Is 27 Feet Behind
      • Lane Change Assist Illuminates When Vehicle Is 290 Feet Behind
      • Blind Spot Monitoring Active Over 18 Mph
      • Smart Processing Minimizes False Triggers
      • High Accuracy Sensors Detect Moving Objects Of All Sizes
      • Cross Traffic Detection Activates Immediately In Reverse
      • All-In-One 21 Foot Main Harness With 6.5 Foot Rear Sensor Harness
      • Operating Voltage 12 To 24 Volts DC
      • Power Consumption 250mA At 12V DC
      • Operating Temperature Range -40°C To 85°C
      • Storage Temperature Range -45°C To 90°C
      • Detection Range 0.15 Meters To 120 Meters
      • Waterproof Rating IP69
      • Sensor Mounted Behind Rear Fascia Using External Bracket And Screws
      • Radar Frequency 76GHz To 77GHz
      • Audio Warning Trigger Wires For Left And Right Sides
      • Human-Machine Interface Color Amber With Black Trim, Drill-In Mount Type
      • Buzzer Mounts With 3M Tape Or Screws, Volume Greater Than 85db, Adjustable Hi/Med/Lo
      • Volume Adjustment Via Hi-Low-Off Switch
      • Fits Universal; Some Adaptation May Be Required; Does Not Function Through Metal Bumpers

      Description

      Advanced Safety System. The Radar Blind Spot System with Cross Traffic Detection provides enhanced vehicle awareness by monitoring blind spots and cross traffic using radar technology. This system alerts drivers to nearby vehicles during lane changes and reversing maneuvers, improving safety and helping to prevent collisions. It is compatible with vehicles featuring plastic rear bumpers for broad applicability and precise performance.

      Construction and Appearance. The system features high-accuracy radar sensors operating in the 76-77 GHz frequency band, housed in waterproof IP69-rated casings designed for harsh environmental conditions. Components include an externally mounted sensor secured with a robust bracket, an amber warning light with black trim for the human-machine interface, and a buzzer with adjustable volume settings. All parts deliver durable, OEM-like integration behind the vehicle’s plastic fascia.

      Installation. Installation involves mounting the sensor behind the rear fascia using the provided brackets and screws. The human-machine interface requires drilling for a secure drill-in mount. The system comes with an all-in-one wiring harness to simplify connections, though some adaptation may be needed depending on the vehicle model.

      Warranty. This product includes a manufacturer-backed warranty to support reliability and customer confidence.

      Application. Designed to fit universal vehicle models equipped with plastic rear bumpers. It does not function with metal bumpers and may require some adaptation for specific vehicle installations.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

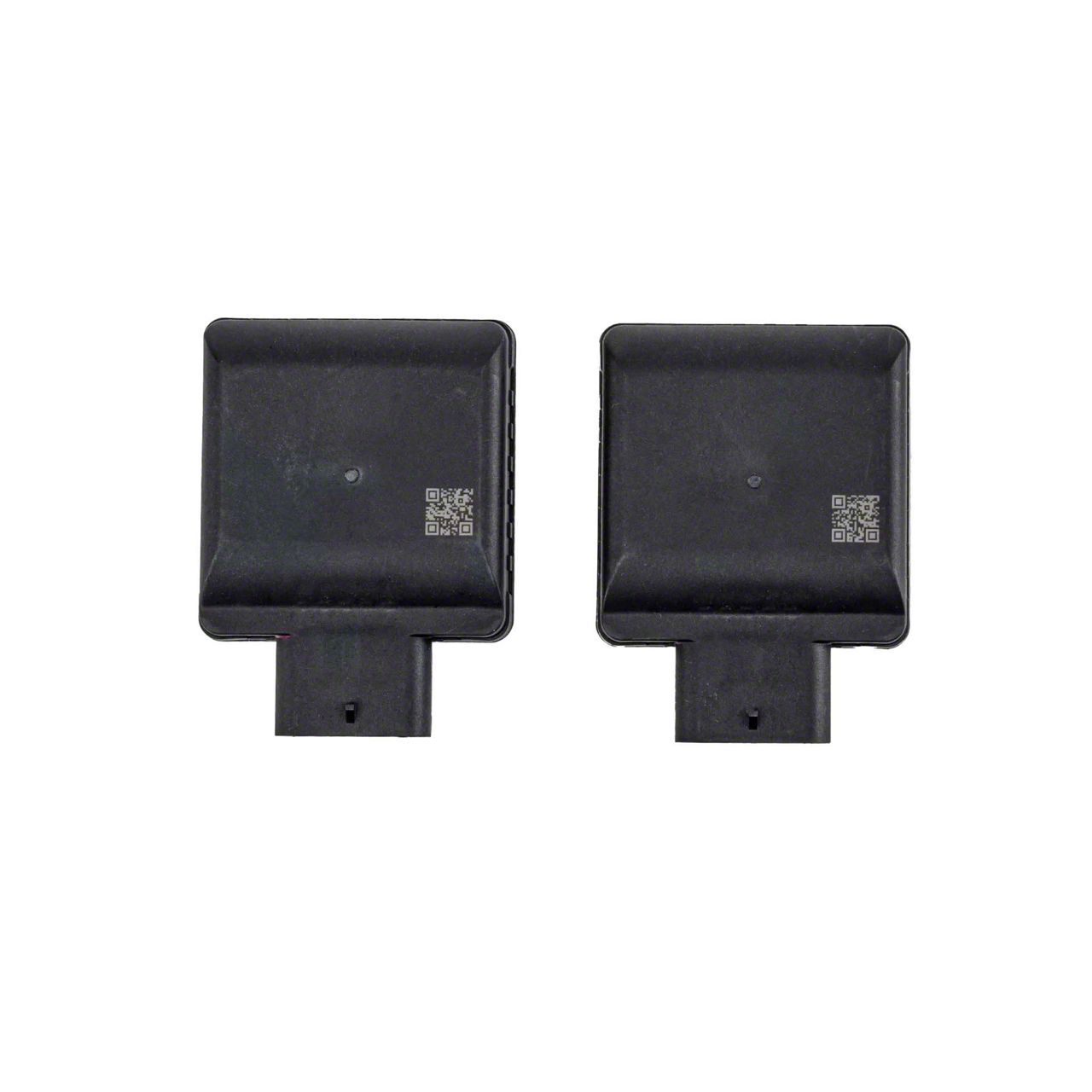

      • (2) Blind Spot Radar Sensors
      • (2) Visual Alert Indicators
      • (1) Control Module
      • (1) Wiring Harness
