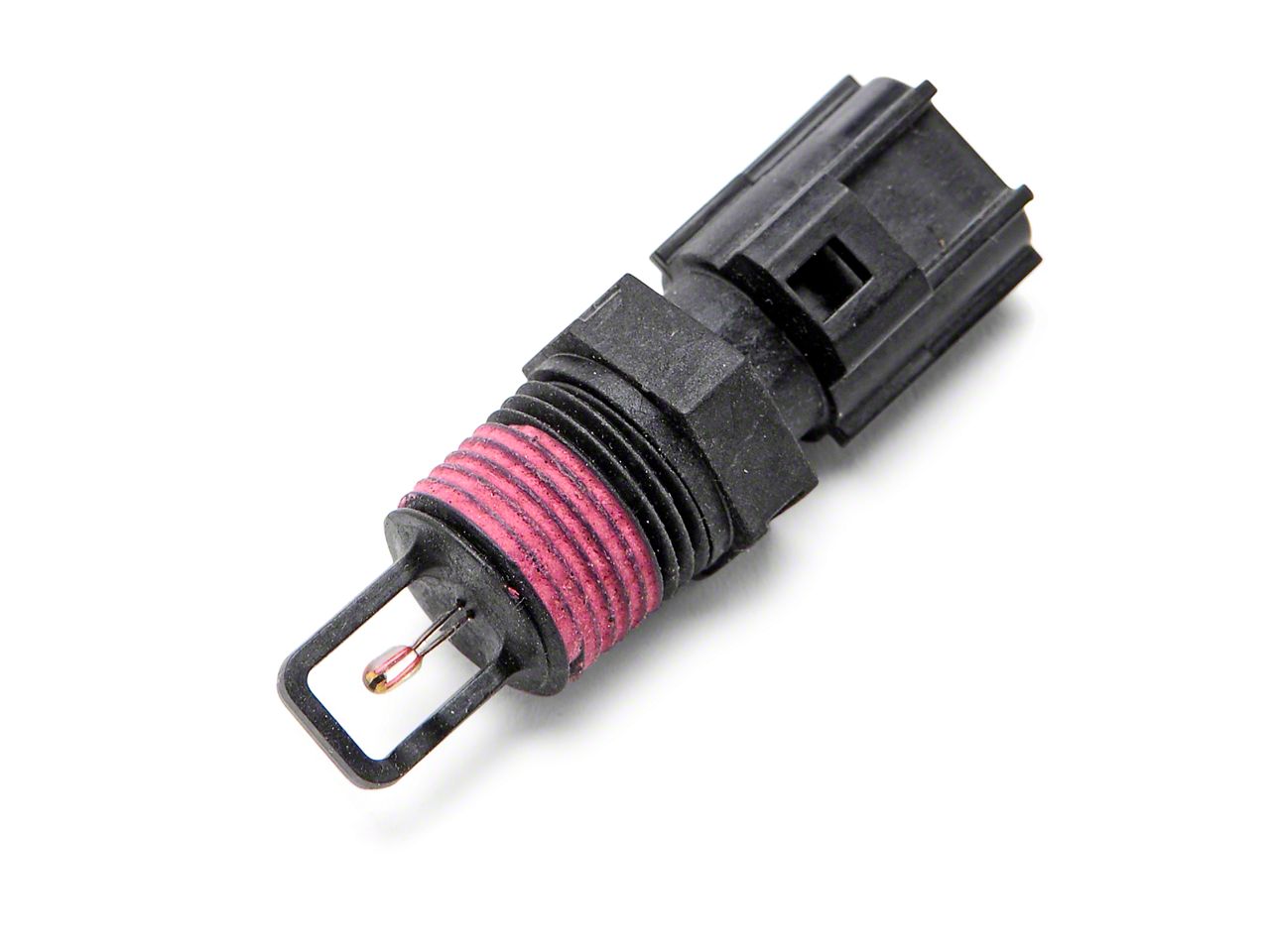

Ford IAT Relocation Kit (05-10 All)

Item 52997
Call a Mustang Enthusiast at 1-877-887-1105
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Market Price $114.83 You Save 12% ($13.21)
Our Price


FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation


      • More Accurate Temperature Readings
      • Perfect for Force Inducted Mustangs
      • Genuine Ford Motorcraft Parts
      • Fits 2005-2010 Mustangs


      Accurate Readings. The IAT (Intake Air Temperature) Sensor that comes in the factory MAF is perfectly fine for naturally aspirated daily drivers. But in force induction applications like a supercharger or turbocharger the factory MAF sensor housing will become "heat soaked" and the IAT sensor will read much hotter than the actual intake air temperature which can cause power robbing detonation. By relocating the IAT sensor "higher upstream" after the intercooler the ECU will see more accurate temperature readings allowing you to make more power.

      Ford Motorcraft Quality. This Intake Air Temperature Sensor Kit is made up of genuine Ford Motorcraft parts that are constructed from high quality OEM materials for a perfect fit and reliable maintenance-free operation.

      Application. This Intake Air Temperature Sensor Relocation Kit is designed for use on 2005 to 2010 Mustangs equipped with an aftermarket supercharger or turbocharger. Including V6, GT, Bullitt and Shelby models.

      Fitment: 2005 2006 2007 2008 2009 2010 Details

      MPN# DY1159


      CA Residents: WARNING: Cancer and Reproductive Harm -


      Customer Reviews (9)

      Write a Review

      Ratings Summary

      4.9 out of 5 overall rating from 9 customers

      • November 17, 2018

        5 2012 GT - Fidel

        Great product

        A very good product, fast shipping.....................

        Helpful (3)
      • August 29, 2018

        4 2005 GT - David05GT

        Whipple Supercharger IAT Sensor

        Overall, having the iat sensor installed was great. Now, I'm able to know how how my whipple supercharger is running. Absolutely recommend to those who run the Ford Racing Whipple Supercharger.

        Helpful (4)
      • November 20, 2017

        5 2004 GT - tg1227

        Working great !!!

        I used this kit to relocate my iat from my maf upstream for meth injection.

        Helpful (7)
      • July 28, 2016

        5 2005 GT - Paxton05


        The sensor and everything it came with was all around in great condition. The wire length for the connector was a little short but the auto store has extra to fix that problem. I had to buy a weld in bung for my intake and extra wire for the install. All together it wasn't more than 60 for everything. Its a must have for a forced induction car for proper air intake temp readings.

        Helpful (6)
      • December 19, 2014

        5 2005 GT - 1BAPONI

        perfect product for increased horsepower

        This product absolutely is a must for anyone looking to increase horsepower, change the tune on their Stang or adding a supercharger or CAI. Gives you realistic air temperature before it enters the throttle body. Well worth the investment of a few $$$.

        Helpful (7)
      • February 21, 2014

        5 2004 GT - BradW

        Great value

        Both the temp sensor and the connector with the pig tails are motorcraft factory parts. Easy to install and great value

        Helpful (8)
      • July 02, 2013

        5 2005 GT - T3mustanggt

        IAT Relocation Kit ('05-10)

        Shipping was fast and part was packed good, only problem i had is there were no installation instructions with the kit.But I was able to Google the instructions.. still will do business with AM..

        Helpful (7)
      • September 21, 2012

        5 2004 GT - 04GTXPRESS

        Intake Air Temp Install

        This kit is a must have for the early Ford lightning MASM which has no air temp sensor incorporated into it like the stock MASMs do. If you need to relocate and need a separate air temp sensor then look no further! Installation is simple and the sensor works great. To install on a 2004 Gt. simply clip off the two outer wires on my 04 they were grey and the other was grey with a red stripe. Other years may vary so just double check and be sure you have the right wires. The sensor comes with about a foot or so of wire for relocating. If you need to go further in length as I did,simply pick up the same gauge wire and add how much you need. Note* Be sure to solder all wire connections it only takes a couple of minutes but gives you a secure and lasting connection, also be sure and tape or heat shrink all connections. Next drill a hole close to your throttle body in the intake pipe slightly smaller than the 3/8 NPT that is "pipe thread" and cut your threads with a 3/8 NPT Tap. In my case no additional bung was necessary,the intake pipe had plenty of meat to accept enough threads to secure the sensor firmly. Next screw the sensor in and attach the wire connector and you are done!Total time approx 30 - 45 mins. not rushing. This part works flawlessly on my Vortec Supercharged 04 Gt. I highly recommend this part!!

        Helpful (7)
      • April 24, 2012

        5 2009 GT - lolwut

        Everything you need to relocate your IAT!

        Description is a little sparse. This is a Ford OEM sensor along with the correct wire connector. The threads on this sensor are 3/8" NPT, which is what you will need to install this sensor on a manifold or an intake pipe. Just wire the sensor into your MAF wires and you're done! No CELs, works 100% and doesn't make the car run funny. ECU accepts the signal as if nothing changed.

        Helpful (7)

      Questions & Answers (5 answers)

      5 Top Rated Questions

      will this work for an 04 using the ford performance maf(which doesn't have the iat built in)where as factory maf iat was built into the maf.

      Will this work on a 2016 mustang gt? I have methanol injection and need to relocate the iat sensor so I get a more accurate temp reading. Same problem with the 2016 just needs relocated.

      • Unfortunately, this would not work on the newer model mustang GT's, they use a different style IAT sensor.

      Helpful (0)

      Is this upgrade worth it to add with a non turbo/super charged 07 GT? I have added a CAI and a BBK throttle body but basically stock.

      • There wouldn't be any gain for using the Ford IAT Relocation Kit without a supercharger or a turbocharger. The reason this is needed is because typically in those applications there would be an entirely different intake setup or an intake hat being used that would eliminate the original location of the IAT.

      Helpful (0)

      Will this work on a supercharged 2012 Mustang GT??

      • Hello! The Ford IAT Relocation Kit will only work on 05-10 Mustangs.

      Helpful (0)

      Will this work with the MaFia?

      • HI, I'm not totally sure what you mean by MaFia please feel free to give us a call or send us a email so we can help you with your question.

      Helpful (0)
      Post Your Question

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Air Temperature Sensor
      • (1) pigtail
      • (2) connectors

      Tech Specs

      Will It Fit My Mustang

      • GT - 05, 06, 07, 08, 09, 10
      • GT500 - 07, 08, 09, 10
      • V6 - 05, 06, 07, 08, 09, 10
