(approx) 2 Hours
Mechanical expertise or professional installation required.

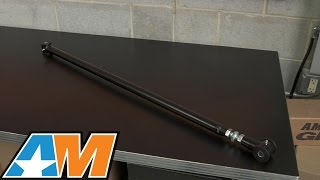

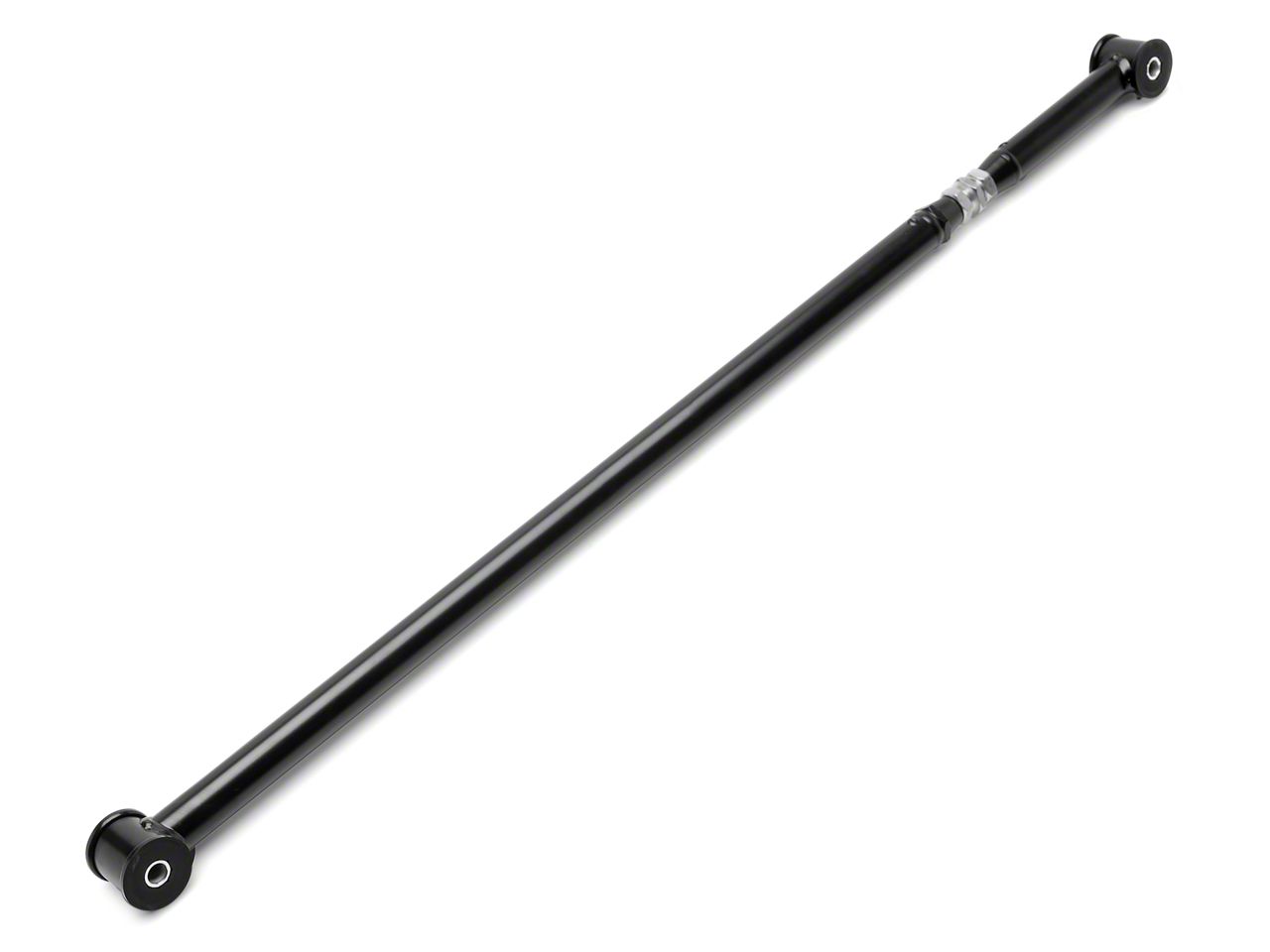

Hey, guys. Stephanie with AmericanMuscle.com here with the J&M Adjustable Panhard Bar for all 2005 to 2014 Mustangs. A lot of times panhard bars are one of the first places that people go to in order to tighten up the rear end of the 05 to 14 S197s, and rightfully so. A panhard bar can offer a lot of improvements, but there are some options when it comes to panhard bars, and you're going to want to choose which type to go with based off of your car and what you plan on doing with it. This adjustable panhard bar from J&M is a great option for the owners out there that are looking for the benefits of a panhard bar but that have a lowered or plan on lowering their car.The purpose of a panhard bar is to keep the rear axle from moving side to side. The side to side movement in the rear axle is created by chassis flex and twist, and will have an impact on the consistency of the handling. If the rear axle is allowed to move this way, you will experience rear steer and your ability to corner will be greatly reduced. A panhard bar is also going to center your rear, which will not only be an issue if the rear is moving during cornering from chassis flex, but once you start doing other suspension upgrades and lowering your car, the panhard bar will help keep the geometry correct.The J&M Panhard Bar is an encore adjustable bar, which makes it perfect for lowered cars. For deciding between an adjustable or non-adjustable bar, the first thing to keep in mind is that the adjustable bars work best for lowered cars and this reinforces what I said earlier about geometry. When you lower the car, you change the geometry, so adjustable suspension components tend to work best in that situation. That's not to say that you shouldn't run an adjustable panhard bar if your car isn't lowered, but you really should consider an adjustable bar if you are lowered.This is made from tubular steel and it's made from a high-strength steel. Even the adjuster is forged from Chrome-Moly steel and has formed rolled threads as opposed to cut threads. The panhard bar is then clear zinc plated and heat treated as well, and it's finished with a black powder coat finish. While you won't necessarily see the color of the panhard bar underneath the car, the powder will give it some corrosion resistance and that's only going to benefit in other car suspension components.J&M includes greasable polyurethane bushings which are going to reduce the flexion and add some stiffness to the panhard bar. The type of bushing is important to consider because it's going to play a role in ride quality and NBH. At the end of the day, you do want more rigidity in these areas so you stop movement, but a lot of people work on straddling the line between stopping enough movement to create better handling but not stopping so much movement that it makes for a miserable ride board.Like I mentioned a little earlier, the panhard bar is a weak point in the factory chassis because it allows for a lot of movement in the rear. The J&M aftermarket replacement works to stiffen up the rear end by allowing for less deflection. Adding a panhard bar like this will give support and extra chassis rigidity as well, which will improve traction and handling. One thing to keep in mind though is that while a panhard bar can and will make a difference by itself, it definitely pairs great with other suspension models. It will help with traction and handling by itself, but keep in mind that there isn't just one part that will fix all the traction and handling issues, but a good combination of upgrades can totally change the Mustang's performance. As far as price, at the end of the day, a panhard bar isn't necessarily all that expensive. This panhard bar costs a little over $100, which is less expensive than a lot of other options that are available that offer different features. Like I said earlier, you can always go with a non-adjustable which will cost less, but I wouldn't recommend that route if you're planning on lowering your car.The install for this panhard bar does require a little bit of knowledge, so I'm to going to call it a three out of three wrenches in the difficulty meter, and it will take about two hours to complete. If you tackle this install yourself, you'll need a few different sockets and wrenches and a way to get the car in the air so you can work under the rear. There are covers covering the factory panhard bar but they're easy to remove. The factory is held in by two bolts, but you need to loosen the panhard bar support brace in order to get the bar out. There will be a little assembling of the new panhard bar before you can install it, like the bushings, the ends. And since it is an adjustable part, you will want to make sure that it's the same length as the factory bar before you install it. The actual install of the new bar will be the same as the removal of the factory bar. Once the bar is installed, it will need to be adjusted. The panhard bar is adjusted by twisting the bar by hand to adjust the body of the car over the axle. You can accomplish this by measuring each side after you adjust the bar, and there are a few different ways that you can do that. Once everything is adjusted, all you have to do is lock everything into place. Wrapping things up here, the J&M Panhard Bar has a steel construction, it's on-car adjustable, and it offers support and rigidity where the factory components are known to be weak. It's a great option for lowered cars and will work to improve traction and handling, especially in the corners, therefore tightening up the rear end. You can check it out more online, along with all your other rear suspension upgrade options right here at AmericanMuscle.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
Fitment: 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
December 04, 2019
Great quality for price!!
After my SR performance (already on car when I bought it) adjustable panhard bar broke I tried to find a decent priced one for a daily driven lowered car. This one appears very well made and looks simple to adjust. Also the grease fittings are a plus!Helpful (0)
October 22, 2019
Fits great, works great!
Fitment was great, gives you the right amount of adjustability for a lowered car.Helpful (0)
October 01, 2019
J M panhard bar
Installed this after lowering my car and helps a lot. Installation was super easy with a lift. Definitely tighter in the turns and realigned the rear endHelpful (0)
August 17, 2019
Easy install. Quality part
Very simple to install. Quality part. Adjustment is setup to make it a breeze.Helpful (0)
July 18, 2019
this is great product fits well this panhard seems to strengthen suspension an greatly improves handlingHelpful (0)
July 11, 2019
Good but not perfect
The good - Easy to adjust, nice tight fit, and good quality..... The bad - max out adj. With 1.5" lowering springsHelpful (0)
July 07, 2019
This the one works great
This Panhard bar did exactly what it was suppose to do on my 2012 GT trackpack with 20×10 rears on was off set but back centered perfectly wit the JandM Panhard bar easy fix and easy to adjust bushings do need to be greased and remember to keep the bolt centered when a adjusting looks and feels way better than the stock on cornering no problems with it whatsoeverHelpful (0)
June 07, 2019
This was so easy to install. Car feels better and more stable plus I can adjusted. Car look amazingHelpful (0)
May 19, 2019
I lowered my 2014 GT track pack with an HandR kit and it needed a camber correction up front and a panhard bar adjustment in the rear. Picked up the eibach camber boots and the panhard bar and I’m perfectly aligned and my car rips with less wheel hop!Helpful (0)
March 26, 2019
Does what it has to
Is a very stable upgrade if your mustang is lowered , used with sr lowering springs and works greatHelpful (0)
Benefits for a stock height car? What benefits,if any, would you see on a car that has not been lowered?
It gives you the ability to 'center' the rearend in your car. I have had many Mustangs over the years and almost everyone of them the rearend wasn't centered exactly. You can really notice this when you run larger than stock wheels and tires. On one side you will have clearance issues and the other side you won't. With this bar you can make sure the rear is in the dead center of your car.
Does the panhard bar brace need to be removed when adjusting the bar? Thank you
This would not need to be removed when adjusted.
Do you need to have an alignment after install?
Yes, we recommend an alignment after installing this.
I would like to know about weight details for this product ?
This J&M Adjustable Steel Panhard Rod weighs approximately 7.5 pounds.
Ok, how do you adjust it? I've installed it but I run out of adjustment before the car is centered? Any help would be great!
The jam nuts should not be tightened down once partly installed, and so you should be able to crawl under the car and twist the panhard bar to adjust your Mustang’s body over the axle. It will take very little effort, and can be accomplished by hand. Ultimately, you want to center the body perfectly over the axle. To check to ensure the body of the car is properly centered, you’ll need to measure each side after you turn the panhard bar a few rounds. Since the middle of my sidewalls of my tires will poke out from the quarter panel just slightly when I’m finished, I found something to make a straight edge, made sure it rested properly on the tire’s sidewall at the top and bottom, and then used a tape measure to check each side. For narrower wheels and tires, you can simply tape a string and weight (to make a plumb-bob) as a reference point to measure from.
J&M calls for 129 ft/lbs or torque for their J&M Adjustable Panhard Rod - Steel (05-14 All) item number 30030.
They do not come greased! But it's an easy thing to do. Just take the bushing out of the panhard bar ends and grease them. They're in there tight so I found the best way to get them out was to hook up a grease gun and pump some grease in and the bushings will push out, then you can pull them out and grease them evenly. To reassemble, take the grease zerk nipple out with a small socket, and push them back together. Reinstall the grease zerk nipple and repeat on the other side. Make sure you are using a lithum based grease.
Yes it comes with the red polyurethane grease-able bushings
The panhard bar for the rear end will be the same
