Simple installation for anyone.
- Customer Submitted:
- How to Install Wheels on Your 1979-2013 Mustang

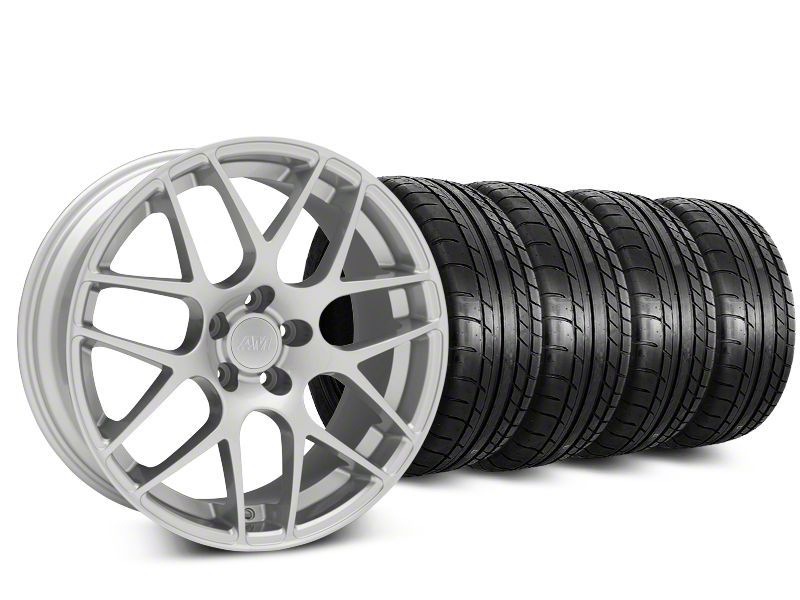

Hey I'm Justin with AmericanMuscle.com, and I'm checking out the AMR wheels fitting all 2005 and newer Mustangs available in your choice of either gloss black, silver, and charcoal. These concave multispoke design wheels have quickly become a fan favorite and are a good option for a Mustang owner who's looking to take a break from the standard 5 spoke wheel design, typically found with a Bullitt or Cobra style wheel. The lightweight aluminum AMR's are offered in several different sizing options, including an 18, 19 and 20" diameter, and an 8, 8 ½, 9 and 10" width. Because there's several different sizing options, you can easily stick a wider wheel in the back with a more narrow one up front to help you achieve that classic muscle car stance known as staggered fitment, or on the other hand, you can put the same width wheel on all 4 corners, which will give you a standard fitment and allow you to properly rotate your tires in the future. To give you a better idea of how these wheels might look on your own ride, we outfitted some of the cars here in the shop with the wheels, starting with our 2011 GT behind me, which is equipped with the 20" version in charcoal, our 2013 back there on the lift is sporting the very sleek 18" AMR's in gloss black, while finally our 2000 V6 back on the Dynojet is rocking the 19" version in silver. Of course you can purchase these wheels by themselves if you'd like, however the smart move would be to take advantage of one of our pre built tire and wheel combinations, where we pair your new AMR's up with some of the top performing tires on the market today, in sizes that are guaranteed to fit without rubbing, even if you're lowered an inch or two. On top of that, you get to take advantage of our free mounting and balancing, and free shipping and handling. Finally, all American Muscle wheels are backed by a 1 year warranty on all finishes, and a lifetime structural warranty. When you receive your new set of wheels and tires from American Muscle, you'll find that installing them is just as easy as ordering them, you'll first want to make sure the car is on level ground and then crack the lugs loose before you get the car in the air, after that, jack the car up and swap out all 4 wheels and tires, and that's it, you can easily do all this in your driveway in about an hour's time using some basic hand tools and a floor jack. These AMR wheels have become more and more popular with Mustang owners everywhere, and after seeing them on our own cars here in the shop, it's easy to see why, so be sure to check out a set for your ride, right here at AmericanMuscle.com
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
Road Hazard Protection. AmericanMuscle is proud to offer an optional Road Hazard Tire Protection program to our customers who purchase a Wheel and Tire Package from us. With this program, you will receive a 3-Year/36 Month protection plan for changing of flat tires and flat tire repair.
36 Months of Protection. The Road Hazard Protection Program is good for 3-Years (36 Months) from the purchase date printed on the program certificate or until any part of the tire tread that comes in contact with the road has a tread depth of 2/32” or less, whichever comes first.
Flat Tire Changing Assistance. Enrolled customers are eligible for reimbursement of up to $75 for roadside flat changing assistance provided by a licensed service provider. This is limited to the roadside installation of the customer’s own usable spare tire. Customer must have a spare tire. The customer would pay the service provider for flat tire changing and then be reimbursed.
Flat Tire Repair. Enrolled customers are eligible for Flat Tire Repair up to $20 per tire. This repair would include labor and patch. Reimbursement is limited to two flat tire repair claims during the coverage terms of 3-Years/36 months. The customer would pay the service provider for flat tire repair and then be reimbursed.
Fitment: 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
Mounting & Balancing: AmericanMuscle offers professional mounting and balancing on all wheels and tires when purchased together on the same order. This will allow you to swap out your old wheels for your new set when they arrive.
What is TPMS? The Tire Pressure Monitoring System (TPMS for short) is a factory installed safety feature on all 2007 and newer Ford Mustangs that alerts you when your tire pressure drops to an unsafe limit.
How do I keep my TPMS feature? Aftermarket wheels do not come with TPMS sensors. However, if you select 'Add TPMS Sensor Kit' and your specific year range from the options listed above, we'll install the TPMS Sensors in your new wheels!
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
April 30, 2019
Great Packaging .... Great Wheels
Just as mentioned, great wheels at a great price!!Helpful (0)
January 19, 2019
Going to be honest, Im not happy
Im pretty sure Ill have to have the finish redone just running my finger on spots of the rim you can feel imperfections especially in between the the spokes in the curve its really rough it will only be a matter of time before it bubbles and comes off. Now for the next part the box well it faired well on its travel BUT upon opening the box and inspecting the back of the rim 4 different parts were damaged on the back of the rim almost at if it was removed from the box and a screw drivers was taken to it and this is just on the one rim I ordered it certainly wasn't damaged during shipping just look at the damage and the box not to mention for the fact its on the back of the rim on the edge..... Now I question return it and deal with the chipping and getting it back or take a chance on the other three and have the the finish redone and the damage fixed not that I should have too in the first place. Sorry but on items like this they should be opened before shipping and inspected for damage and for finish issues hands down that would help AM a lot just by catching it prior to it leaving. If I were selling rims I surely wouldn't be allowing these to leave with out verifying myself there is no damage etc I mean it takes what 2 minutes to open it inspect it and then reseal it. its the small things that make the biggest difference.Helpful (0)
May 03, 2018
At first, when opening the boxes, I was unsure what I thought about these wheels. Aside from a couple of rims damaged in shipping, AM gave me some options on what to do to replace them. I opted to install them, havr them ship me new rims, and have a tire shop remount the tires tp the new rims and send the damaged ones back...all at no final additional cost to me. After installing them onto my car, I was greatly pleased with how they looked on my vehicle. The only thing I regret is not getting wider tires on the rear. Other than that, I love them, and they didn't break the bank!Helpful (6)
April 24, 2018
Loving the new rims and tires on mustang gives it a whole new look !!Helpful (7)
March 13, 2018
Very stylish. Came in as expected. Very satisfied with the product.Helpful (7)
April 12, 2017
Bang for the buck!!
These wheels look great and are easy to maintain. The nitto invo tires made a huge improvement in handling. The overall package is perfect.Helpful (10)
March 14, 2017
Wheels and tires arrived very well packaged. The silver wheels completely changed the look of my car. Very happy with this purchase. A little disappointed thay the Sumitomo tires are not directional. But, the tires were a necessary evil, and the Nitto's were out of stock.Helpful (10)
June 20, 2016
silver amr 20x8.5
Great product exactly what I wanted fast shipping And get a lot of companyHelpful (9)
June 02, 2016
20" AMR wheel and tire package
Just got my wheel and tire setup and boy does it change the look of the car! The 20" wheels do a great job at filling the wheel well and make the car look super aggressive! They shipping was super quick and packaging was good as well!Helpful (8)
May 07, 2016
Weels tire kit
Very good products, high quality, good customer service Order travking was good Im very happy with AMHelpful (9)
I have a 2014 V6 Mustang, Will the 20" staggered rims, with the tire 285/30-20 Sumitomo High Performance HTR Z III Tire on the rear, will this tire rub on the fender? I live in a town with a lot of bumpy roads.
It will honestly depend on if the vehicle is lowered or not. As long as the drop isn't more than 1.5 inches. You should not have any issues with rubbing.
Do these wheels come with recommended lug torque settings?
These wheels will need to be torqued down to 98 ft-lbs as specified by Ford.
I have 245x40 Zrx19. Will these change my speedometer?
The 20 inch wheels and tires should not cause your speedometer to change.
Will these clear my Brembo calibers? '14 GT track pack
Yes these will clear your Brembo calipers.
I have an 08 GT/CS and have no plans to lower the car. Will these rims tires leave a larger gap between the tire and wheel well than my stock 18" rims with 235/50Z/R18's I have on there now? Thanks,
There will not be a big difference between the 235/50-18 and the 255/35-20 and the 285/30-20 size tires as the larger wheel will fill the gap between the tire and the wheel well.
Installing this wheel and tire package will not lower your vehicle.
You can get in contact with one of our Representatives by following the link below. We can build you a custom wheel and tire kit that is perfect for your car. http://www.americanmuscle.com/contact.html
Yes, this wheel and tire kit will work with a big brake kit.
The Staggered AMR Silver Wheel & Mickey Thompson Tire Kit - 20x8.5/10 (05-14 All) will fit with your caliper covers no problem. You will not need a wheel spacer for this.
Your stock lug nuts should work perfectly fine with this Wheel and Tire Kit.
The wheel size you choose (at least as far as what we offer) will not affect anything alignment wise at all. So, the AMR Silver Wheel - 20x8.5 (05-14 All) will work no problem!!
Simple installation for anyone.
What's in the Box
|Manufacturer:||AmericanMuscle Wheels||Style:||AMR||Size:||20x8.5||Finish:||Silver||Placement:||Front and Rear||Centercap Size:||Large (2-1/2")|
|Back Spacing:||5.9" (151mm)||Offset:||+30mm (1.2")|
|Bolt Pattern:||5x4.5" (5x114.3mm)||Weight:||0|
|Material:||Aluminum||Lip Size :||N/A|
|Best Tire :||Included||Year/Model:||Fits all 2005-2014 GT, V6, Bullitt, and Shelby GT500 Mustangs|
