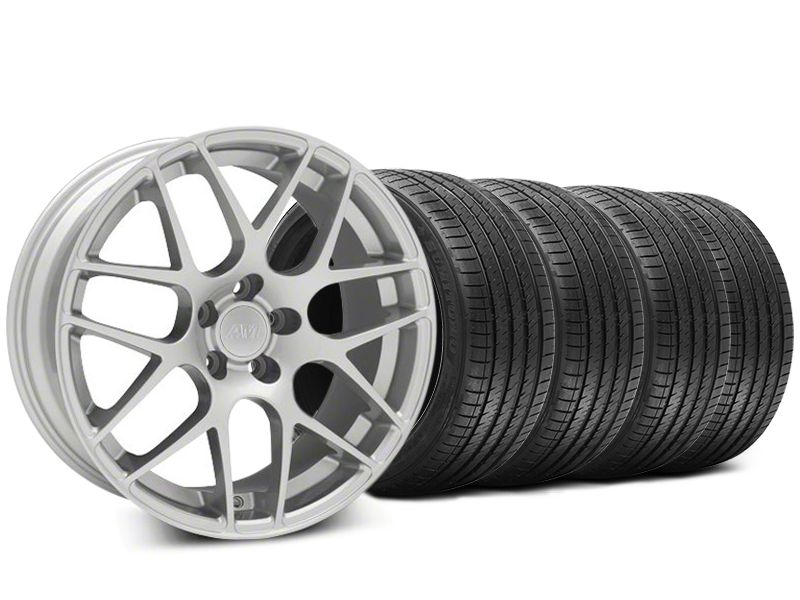

AMR Silver Wheel and Sumitomo Maximum Performance HTR Z5 Tire Kit; 20x8.5 (05-14 All)

Item 100183
Call a Mustang Enthusiast at 1-877-887-1105
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Market Price $1,334.99 You Save 12% ($155.07)
Our Price


FREE Shipping

Item Options

In Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Review & Installation Video

      Hey I'm Justin with, and I'm checking out the AMR wheels fitting all 2005 and newer Mustangs available in your choice of either gloss black, silver, and charcoal. These concave multispoke design wheels have quickly become a fan favorite and are a good option for a Mustang owner who's looking to take a break from the standard 5 spoke wheel design, typically found with a Bullitt or Cobra style wheel. The lightweight aluminum AMR's are offered in several different sizing options, including an 18, 19 and 20" diameter, and an 8, 8 ½, 9 and 10" width. Because there's several different sizing options, you can easily stick a wider wheel in the back with a more narrow one up front to help you achieve that classic muscle car stance known as staggered fitment, or on the other hand, you can put the same width wheel on all 4 corners, which will give you a standard fitment and allow you to properly rotate your tires in the future. To give you a better idea of how these wheels might look on your own ride, we outfitted some of the cars here in the shop with the wheels, starting with our 2011 GT behind me, which is equipped with the 20" version in charcoal, our 2013 back there on the lift is sporting the very sleek 18" AMR's in gloss black, while finally our 2000 V6 back on the Dynojet is rocking the 19" version in silver. Of course you can purchase these wheels by themselves if you'd like, however the smart move would be to take advantage of one of our pre built tire and wheel combinations, where we pair your new AMR's up with some of the top performing tires on the market today, in sizes that are guaranteed to fit without rubbing, even if you're lowered an inch or two. On top of that, you get to take advantage of our free mounting and balancing, and free shipping and handling. Finally, all American Muscle wheels are backed by a 1 year warranty on all finishes, and a lifetime structural warranty. When you receive your new set of wheels and tires from American Muscle, you'll find that installing them is just as easy as ordering them, you'll first want to make sure the car is on level ground and then crack the lugs loose before you get the car in the air, after that, jack the car up and swap out all 4 wheels and tires, and that's it, you can easily do all this in your driveway in about an hour's time using some basic hand tools and a floor jack. These AMR wheels have become more and more popular with Mustang owners everywhere, and after seeing them on our own cars here in the shop, it's easy to see why, so be sure to check out a set for your ride, right here at

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation


      • (4) 20x8.5 Silver AMR Wheels
      • (4) 255/35-20 Sumitomo Maximum Performance HTR Z5 Tire
      • Free Mounting & Balancing
      • Free Optional Nitrogen Fill
      • Fits All 2005-2014 GT, V6, Bullitt, and Shelby GT500 Mustangs
      • Road Hazard Protection Plan Available


      Easy "One Click" Shopping. We have combined our most popular wheels and tires together into an easy "one click" to buy combo kit. This combo kit features four wheels and tires that are the exact specifications for your year Mustang for a guaranteed perfect fit with no rubbing or clearance issues.

      Standard Wheel and Tire Setup. Our Standard wheel and tire combo kit uses the same size wheels and tires on the front and the rear which allows you to routinely rotate your tires to equalize tread wear and maximize the life of the tires.

      Silver AMR Wheel. Add aggressive drift car styling to your powerful Pony with a set of AMR wheels. The AMR style wheel is the perfect addition to any late model Mustang with its bold drift car inspired multi spoke design. This wheel is painted in an attractive bright silver, that looks great on any color Mustang. Featuring a durable clearcoat finish, this rim is designed to resist pitting, brake dust buildup & road chips, for many years of head-turning enjoyment.

      Sumitomo Maximum Performance HTR Z5 255/35-20 Tire. Sumitomo's HTR Z5 series tire is an ultra high performance summer tire. The aggressive design delivers extraordinary performance in either wet or dry conditions, on and off the track.

      Free Nitrogen Fill. AmericanMuscle is proud to bring you the option to fill your tires with pure nitrogen for FREE when we mount & balance your wheel and tire order. Filling your high performance tires with nitrogen can result in longer tire life and improved fuel economy. Nitrogen can also better regulate tire pressure changes that occur with the change in temperatures throughout the year, so your Stang will be ready to roll no matter what season it is!

      Application. This Standard 20x8.5 Silver AMR wheel and Sumitomo Tire Kit fits all 2005 to 2014 Mustangs.

      Road Hazard Protection. AmericanMuscle is proud to offer an optional Road Hazard Tire Protection program to our customers who purchase a Wheel and Tire Package from us. With this program, you will receive a 3-Year/36 Month protection plan for changing of flat tires and flat tire repair.

      36 Months of Protection. The Road Hazard Protection Program is good for 3-Years (36 Months) from the purchase date printed on the program certificate or until any part of the tire tread that comes in contact with the road has a tread depth of 2/32” or less, whichever comes first.

      Flat Tire Changing Assistance. Enrolled customers are eligible for reimbursement of up to $75 for roadside flat changing assistance provided by a licensed service provider. This is limited to the roadside installation of the customer’s own usable spare tire. Customer must have a spare tire. The customer would pay the service provider for flat tire changing and then be reimbursed.

      Flat Tire Repair. Enrolled customers are eligible for Flat Tire Repair up to $20 per tire. This repair would include labor and patch. Reimbursement is limited to two flat tire repair claims during the coverage terms of 3-Years/36 months. The customer would pay the service provider for flat tire repair and then be reimbursed.

      Fitment: 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014

      Mounting & Balancing: AmericanMuscle offers professional mounting and balancing on all wheels and tires when purchased together on the same order. This will allow you to swap out your old wheels for your new set when they arrive.

      • State of the Art On-Site Tire Facility
      • Scratch Free Mounting Process
      • Environmentally Friendly, Lead Free Wheel Weights
      • Free Installation of TPMS Sensors When Purchased on the Same Order (2007+ Mustangs)
      • 1 to 2 Business Day Turn Around Time on Most Orders

      What is TPMS? The Tire Pressure Monitoring System (TPMS for short) is a factory installed safety feature on all 2007 and newer Ford Mustangs that alerts you when your tire pressure drops to an unsafe limit.

      How do I keep my TPMS feature? Aftermarket wheels do not come with TPMS sensors. However, if you select 'Add TPMS Sensor Kit' and your specific year range from the options listed above, we'll install the TPMS Sensors in your new wheels!

      • Save Money! We sell TPMS Sensors and Sensor Kits at a fraction of the price of dealerships
      • Free Installation of TPMS Sensors When Purchased on the Same Wheel and Tire Order
      • Stay Safe - Keeps your Factory Safety Feature Intact
      • No More Warning Light - Lose the annoying dash light that appears when your sensors are missing

      For more Information, check out TPMS Sensor Kits or TPMS Tool in detail.

      American Muscle Wheels 100183

      CA Residents: WARNING: Cancer and Reproductive Harm -


      Customer Reviews (23)

      Write a Review

      Ratings Summary

      4.9 out of 5 overall rating from 23 customers

      Installation Time: Afternoon

      Installation Cost: 0-$100

      • April 30, 2019

        Review shared from AMR Silver Wheel; 20x8.5 (05-09 All)

        5 2014 V6 - MrBerns Installation Time: Shop Install

        Great Packaging .... Great Wheels

        Just as mentioned, great wheels at a great price!!

        Helpful (0)
      • January 19, 2019

        Review shared from AMR Silver Wheel; 20x8.5 (05-09 All)

        2 2007 GT - Thomas

        Going to be honest, Im not happy

        Im pretty sure Ill have to have the finish redone just running my finger on spots of the rim you can feel imperfections especially in between the the spokes in the curve its really rough it will only be a matter of time before it bubbles and comes off. Now for the next part the box well it faired well on its travel BUT upon opening the box and inspecting the back of the rim 4 different parts were damaged on the back of the rim almost at if it was removed from the box and a screw drivers was taken to it and this is just on the one rim I ordered it certainly wasn't damaged during shipping just look at the damage and the box not to mention for the fact its on the back of the rim on the edge..... Now I question return it and deal with the chipping and getting it back or take a chance on the other three and have the the finish redone and the damage fixed not that I should have too in the first place. Sorry but on items like this they should be opened before shipping and inspected for damage and for finish issues hands down that would help AM a lot just by catching it prior to it leaving. If I were selling rims I surely wouldn't be allowing these to leave with out verifying myself there is no damage etc I mean it takes what 2 minutes to open it inspect it and then reseal it. its the small things that make the biggest difference.

        Helpful (0)
      • May 03, 2018

        Review shared from AMR Silver Wheel; 20x8.5 (05-09 All)

        5 2011 GT - IFlyEm Installation Time: Less than 1 Hour

        Looks great!

        At first, when opening the boxes, I was unsure what I thought about these wheels. Aside from a couple of rims damaged in shipping, AM gave me some options on what to do to replace them. I opted to install them, havr them ship me new rims, and have a tire shop remount the tires tp the new rims and send the damaged ones back...all at no final additional cost to me. After installing them onto my car, I was greatly pleased with how they looked on my vehicle. The only thing I regret is not getting wider tires on the rear. Other than that, I love them, and they didn't break the bank!

        Helpful (6)
      • April 24, 2018

        Review shared from Staggered AMR Silver Wheel and Sumitomo Maximum Performance HTR Z5 Tire Kit; 20x8.5/10 (05-14 All)

        5 2014 V6 - Ramo Installation Time: Less than 1 Hour


        Loving the new rims and tires on mustang gives it a whole new look !!

        Helpful (7)
      • March 13, 2018

        Review shared from AMR Silver Wheel; 20x8.5 (05-09 All)

        5 2012 V6 - FLStangGang Installation Time: Less than 1 Hour


        Very stylish. Came in as expected. Very satisfied with the product.

        Helpful (7)
      • April 12, 2017

        Review shared from Staggered AMR Silver Wheel and NITTO INVO Tire Kit; 20x8.5/10 (05-14 All)

        5 2011 GT - BruceK Installation Time: Less than 1 Hour

        Bang for the buck!!

        These wheels look great and are easy to maintain. The nitto invo tires made a huge improvement in handling. The overall package is perfect.

        Helpful (10)
      • March 14, 2017

        Review shared from Staggered AMR Silver Wheel and Sumitomo Maximum Performance HTR Z5 Tire Kit; 20x8.5/10 (05-14 All)

        5 2008 GT - ChuckyW23 Installation Time: Less than 1 Hour

        AMR Wheels

        Wheels and tires arrived very well packaged. The silver wheels completely changed the look of my car. Very happy with this purchase. A little disappointed thay the Sumitomo tires are not directional. But, the tires were a necessary evil, and the Nitto's were out of stock.

        Helpful (10)
      • June 20, 2016

        Review shared from AMR Silver Wheel; 20x8.5 (05-09 All)

        5 2014 V6 - Terminator Installation Time: Less than 1 Hour

        silver amr 20x8.5

        Great product exactly what I wanted fast shipping And get a lot of company

        Helpful (9)
      • June 02, 2016

        5 2012 GT - Black2012 Installation Time: Less than 1 Hour

        20" AMR wheel and tire package

        Just got my wheel and tire setup and boy does it change the look of the car! The 20" wheels do a great job at filling the wheel well and make the car look super aggressive! They shipping was super quick and packaging was good as well!

        Helpful (8)
      • May 07, 2016

        Review shared from Staggered AMR Silver Wheel and Mickey Thompson Tire Kit; 20x8.5/10 (05-14 All)

        5 2014 Other - Manolo Installation Time: Less than 1 Hour

        Weels tire kit

        Very good products, high quality, good customer service Order travking was good Im very happy with AM

        Helpful (9)

      Questions & Answers (11 answers)

      5 Top Rated Questions

      I have a 2014 V6 Mustang, Will the 20" staggered rims, with the tire 285/30-20 Sumitomo High Performance HTR Z III Tire on the rear, will this tire rub on the fender? I live in a town with a lot of bumpy roads.

      • It will honestly depend on if the vehicle is lowered or not. As long as the drop isn't more than 1.5 inches. You should not have any issues with rubbing.

      Helpful (1)

      Do these wheels come with recommended lug torque settings?

      • These wheels will need to be torqued down to 98 ft-lbs as specified by Ford.

      Helpful (0)

      I have 245x40 Zrx19. Will these change my speedometer?

      • The 20 inch wheels and tires should not cause your speedometer to change.

      Helpful (0)

      Will these clear my Brembo calibers? '14 GT track pack

      • Yes these will clear your Brembo calipers.

      Helpful (0)

      I have an 08 GT/CS and have no plans to lower the car. Will these rims tires leave a larger gap between the tire and wheel well than my stock 18" rims with 235/50Z/R18's I have on there now? Thanks,

      • There will not be a big difference between the 235/50-18 and the 255/35-20 and the 285/30-20 size tires as the larger wheel will fill the gap between the tire and the wheel well.

      Helpful (0)
      Post Your Question
      6 More Questions
      I have stock 18" rims on my 08 GT/CS, will installing these lower my car at all? Thanks, 1 answer
      Can the 285/30 r20 be substituted with a 295/30 r20? 1 answer
      Will I be able to run a willwood big brake kit with the staggered set? 1 answer
      I have an 08 GT/CS and am looking to purchase these rims. I also have brake caliper covers to install. Will I need spacers with these rims? Thanks, 1 answer
      Do I need to purchase lug nuts for these or will the stock ones work? I have a 2008 GT/CS with the 18' stock wheels. Thanks, 1 answer
      Fitment ? I have a stock v6 2014 with 17'' rims. Will these fit without any alignment ? 1 answer

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (4) Wheels
      • (4) Center Caps
      • (4) Tires
        Hardware included:
      • None Required

      Tech Specs

      Wheel Specifications:

      Manufacturer:AmericanMuscle WheelsStyle:AMR
      Size:20x8.5 Finish:Silver
      Placement:Front and RearCentercap Size:Large (2-1/2")
      Back Spacing:5.9" (151mm)Offset:+30mm (1.2")
      Bolt Pattern:5x4.5" (5x114.3mm)Weight:0
      Material:AluminumLip Size :N/A
      Best Tire :IncludedYear/Model:Fits all 2005-2014 GT, V6, Bullitt, and Shelby GT500 Mustangs

      Tire Specifications:

      • Hydroplaning Resistance: 8.6
      • Wet Traction: 8.5
      • Dry Traction: 9.4
      • Snow Traction: N/A
      • Ice Traction: N/A
      • Steering Response: 9.1
      • Cornering Stability: 9.1
      • Ride: 8.5
      • Noise: 8.3
      • Tread Wear: 8.3
