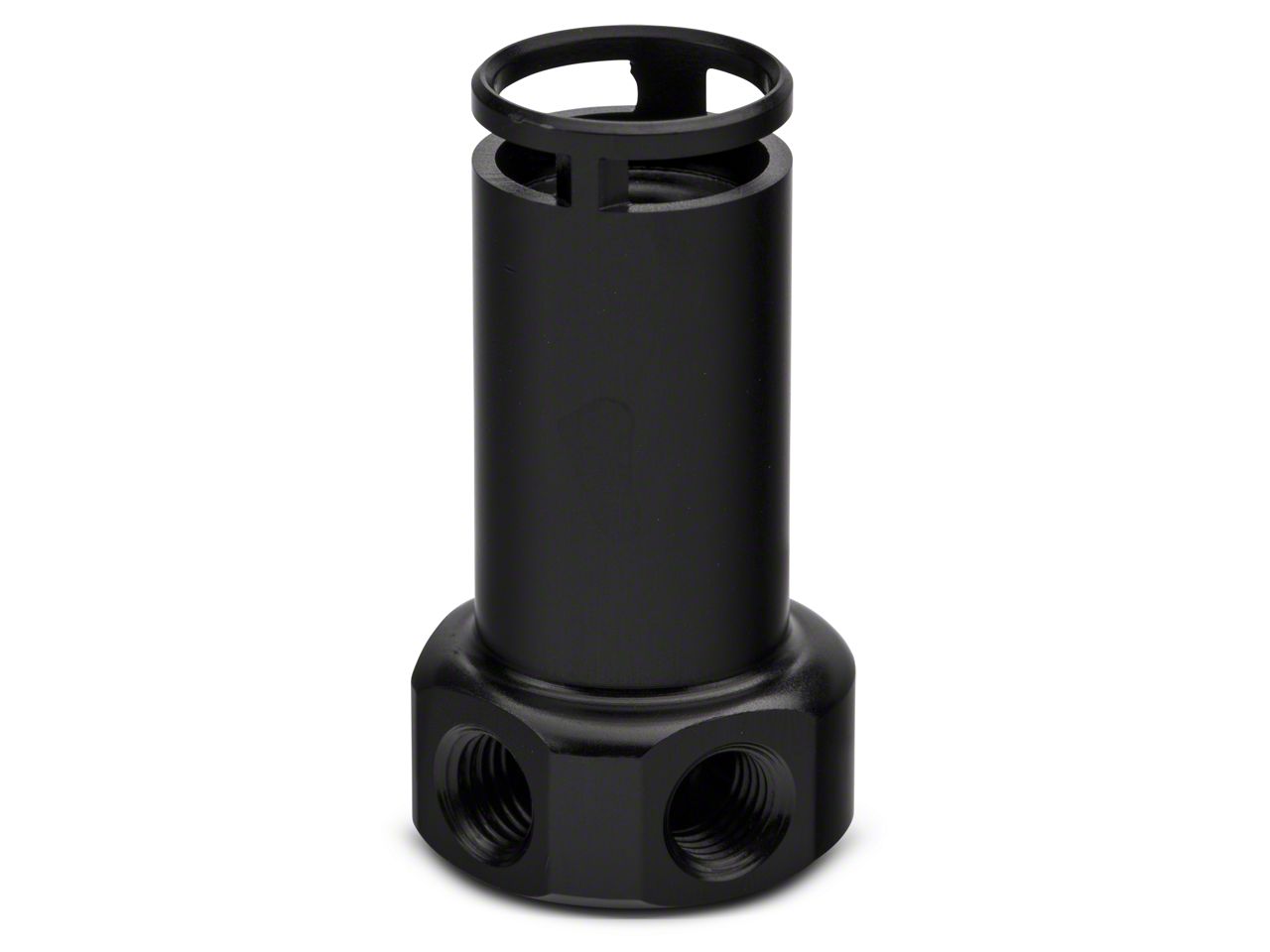

Turbosmart Boost Reference Adapter - Black (15-20 EcoBoost)

Item 390958
Call a Mustang Enthusiast at 1-877-887-1105
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Market Price $53.99 You Save 25% ($13.50)
Our Price

$40.49 (each)

FREE Shipping on orders over $49

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
In Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Provide Reliable Vacuum Source
      • Billet Aluminum Construction
      • Black Finish
      • Two Available Ports
      • Plug and Play Design
      • Fits 2015-2020 EcoBoost Mustangs

      Description

      Reliable Vacuum Source. With the S550 EcoBoost being equipped with an electronically controlled turbo system from the factory, adding things such as a Boost Gauge or Blow Off Valve can prove to be a challenge. Turbosmart offers a simple solution to bring a reliable vacuum source to your Mustang. This Boost Reference Adapter (BRA) allows for the addition of two boost accessories without disrupting any OEM components. Hear your turbo with a BOV and easily monitor your boost via an aftermarket gauge with this plug and play adapter.

      Quality Construction. Using high quality, precision machined billet aluminum, this black finished Boost Reference Adapter connects to the PCV barb located behind the throttle body. Manufactured to provide a leak free experience, this BRA will bring the same dependability and responsiveness of a traditional vacuum style system to your modern day Pony.

      Plug and Play Installation. Adding new vacuum sources to your turbocharged Pony will be a breeze with the installation of this BRA. Crafted to mount between your factory MAF sensor and manifold, this plug and play Boost Reference Adapter will easily allow for the addition of a Boost Gauge or Blow Off Valve. All necessary NPT nipples, hose and hardware is included for a seamless installation.

      Application. This Black Turbosmart Boost Reference Adapter is specifically designed for use on 2015-2020 EcoBoost Mustangs.

      Fitment: 2015 2016 2017 2018 2019 2020 Details

      MPN# TS-0720-1004

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      5.0

      Customer Reviews (9)

      Write a Review

      Ratings Summary

      5 out of 5 overall rating from 9 customers




      • June 01, 2019

        5 2015 EcoBoost - HunterM

        It works

        I got this along with my blow off valve and it works great. Easy to install. Looks better than the stock part.

        Helpful (0)
      • May 30, 2019

        5 2012 GT - Kaleph

        Super easy to install and great readings off it

        Picked this up for my Ecoboost mustang for a water methanol boost reference point and the readings were spot on for the snow map based kit!

        Helpful (0)
      • May 14, 2019

        5 2016 EcoBoost - WheelmanM80

        More than acceptable, it's adequately satisfactory

        Works very well - use liquid thread sealer. I used this to connect a [center] vent-mounted mechanical boost gauge. I used fuel line tubing from the reference adapter, routed that through a grommet located behind the gas pedal mount (there's just enough room) and through the large gap below the dash to the passenger side. Once on the passenger side, I converted the fuel line to the small diameter plastic tubing provided by the gauge manufacturer using adapters I found at an autoparts store, then routed up and left of the glovebox through a small hole I drilled in the plastic venting, ultimately connecting to the gauge. Word of advice: leave enough slack in the air line and wiring to pull the gauge out in order to change the light bulb in the future.

        Helpful (0)
      • March 09, 2019

        5 2016 EcoBoost - Wacbre

        Fitting

        Fit perfect works the way it should! Use a little assembly line and it goes right on.

        Helpful (0)
      • July 17, 2018

        5 2016 EcoBoost - Travis

        Must have!

        This is a must have for a mechanical boost gauge. In order to install your gauge because these Mustangs have an electrical blow off valve.

        Helpful (10)
      • August 19, 2017

        5 2015 EcoBoost - Randall

        Best option

        This is a better option than using the one that comes with the turbosmart BOV kit.

        Helpful (13)
      • April 10, 2017

        5 2015 EcoBoost - Alwaysbusy

        Great little Product

        Very easy to install, added a vacuum port that I needed for an aftermarket BOV.

        Helpful (13)
      • March 10, 2017

        5 2015 Other - ChrisB

        Bought this for my f150 2.7

        Super easy to now install my boost gauge and BOV on my f150 2.7 now! Did some research on TurboSmarts website and found out that it fits the mustang and F150 2.7 only.

        Helpful (11)
      • July 12, 2016

        5 2015 Ecoboost - Surfer8039

        Great product

        This makes a big difference from prior location of vacuum tap. Goes on easy and the extra port for additional boost gauge is a plus. Make sure to use some Teflon tape on threads. This adapter is a great if you want to run another aftermarket blow off valve.

        Helpful (10)

      Questions & Answers (1 answers)

      1 Top Rated Question

      Will this work if im changing to an HKS BOV? or is this for turbo smart only? i notice you dont hold the HKS BOV anymore. is this due to not being reliable for mustang?

      • The Turbosmart Boost Reference Adapter will work with any direct fit bypass/blowoff valve for the ecoboost Mustang. The HKS valve was discontinued due to poor sales.

      Helpful (0)
      Post Your Question

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) BRA - Boost Reference Adapter
      • (3) 1/16 NPT Nipples
      • Installation Hardware

      Tech Specs

      Will It Fit My Mustang

      • EcoBoost - 15, 16, 17, 18, 19, 20
