Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Aeromotive BoostWorx Auto-On Triple Fuel Pump Control System (Universal; Some Adaptation May Be Required)
Item CH37860
Our Price
$777.88 each
Military, Medical & First Responders
$38.89 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- The Auto-On Triple Fuel Pump Control System Provides A Stand-Alone, OE-Type Returnless Fuel System
- Designed For Dual Or Triple Fuel Pumps (Not OEM Modules) To Provide A 1:1 Manifold Referenced Fuel Pressure Using The Included Stand-Alone MAP Sensor And Mounting Bracket
- Functions Like A Mechanical Fuel Pressure Regulator With ECM-Calibrated Control
- Standard Calibration For 1:1 Fuel Pressure Change Vs. Manifold Pressure, Matching Traditional Mechanical Regulators
- Base Fuel Pressures At Idle Typically 42psi, Adjustable For Greater Range If Required
- Monitors MAP Sensor To Provide Manifold Referenced Fuel Pressure And Activate The Second Pump
- Second Pump Output Engages At 4psi Boost, Requires Included Stand-Alone MAP Sensor
- Requires Additional Bypass Fuel To Operate Pumps In Closed Loop PWM Mode, Above Engine Demand At Idle And Cruise
- Compatible With Aeromotive 340 LPH In-Tank Fuel Pumps
- No Need For Relays, External Regulators, Or Return Lines
- Up To Two-Thirds Power Reduction To Fuel Module During Idle And Cruise Compared To Traditional Systems
- 80A Minimum Continuous Power Rating In A Compact Controller Package
- Over-Temperature Shutdown With Automatic Reset To Prevent Damage
- Short Circuit Protection With Automatic Reset To Prevent Damage
- OEM Delphi/Aptiv Style Electrical Connections For Terminals, Seals, And Connector Bodies
- Cross-Linked Polyethylene Wiring Throughout
- UL94 Rated Components Used Throughout The System
- Integrates With OE ECM Maintaining Full Safety System Functionality
- Operates Between 10-22v And Supports Voltage Boosters
- Controller Shuts Down Below 10v To Protect Against Lean AFR Conditions
- Must Be Used In Manifold Referenced Fuel Pressure Mode
- Second Pump Activates At 4psi Boost
- Returnless Systems Require A Safety Overpressure Valve
- Dual And Triple Pump Wiring Diagrams Included
- Universal Fitment; Adaptation May Be Required
Description
Advanced Fuel Control. The Aeromotive BoostWorx Auto-On Triple Fuel Pump Control System creates a sophisticated, stand-alone returnless fuel delivery setup that replicates the operation of mechanical fuel pressure regulators found in OEM systems. It precisely manages fuel pressure relative to manifold pressure, delivering reliable, consistent performance for high-demand dual or triple pump configurations.
Durable Construction and Appearance. Featuring a compact, rugged design rated for 80A continuous use, this controller utilizes cross-linked polyethylene wiring and UL94-rated components to ensure safe and reliable operation. OEM Delphi/Aptiv style electrical connections provide professional-grade durability, while the textured finish is optimized for automotive environments.
Installation. Moderate technical skill is required to install this controller by integrating it with the supplied MAP sensor and wiring harness. The process is simplified by detailed wiring diagrams. Some adaptation of pump hangers may be necessary to accommodate bypass fuel flow, but no drilling is required.
Warranty. This product includes a one-year limited warranty against defects in materials and workmanship.
Application. Designed for universal applications requiring a manifold-referenced, returnless fuel system. Some adaptation may be needed for specific pump hangers or plumbing configurations. Returnless systems must include a proper safety overpressure valve as specified.
Aeromotive 66142
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

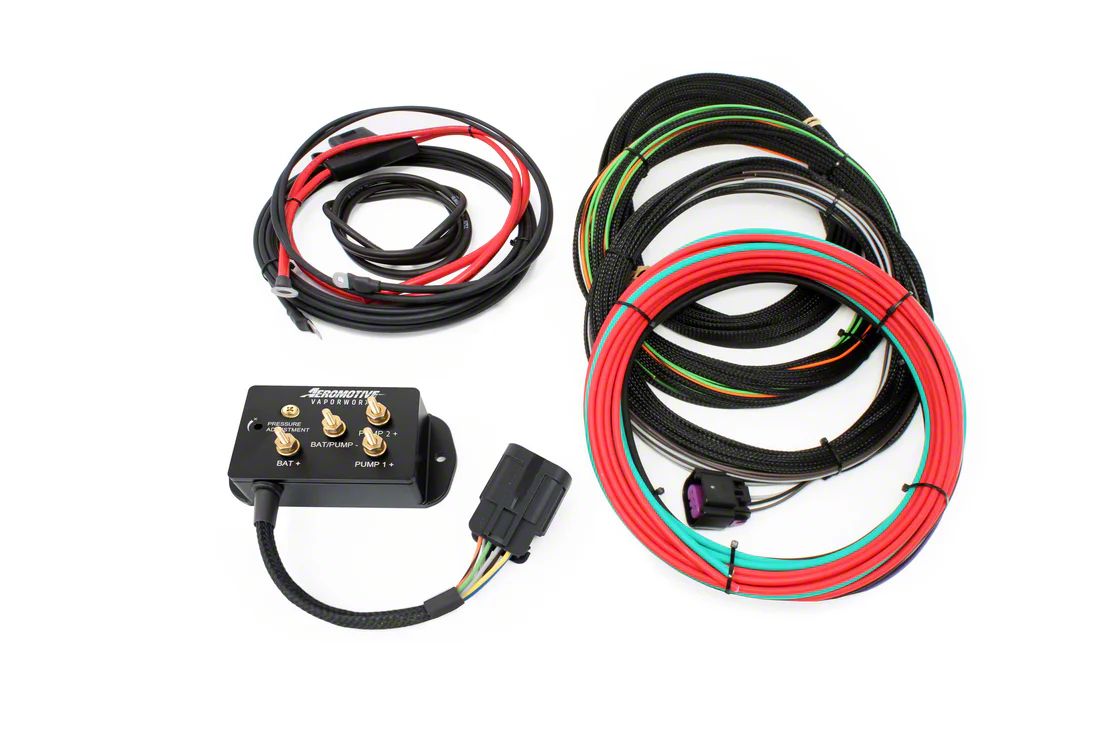

What's in the Box
- (1) BoostWorx Auto-On Triple Fuel Pump Controller
- (1) Stand-Alone MAP Sensor
- (1) MAP Sensor Mounting Bracket
- (1) Set of Wiring Harnesses
- Hardware
- Instructional Manual
