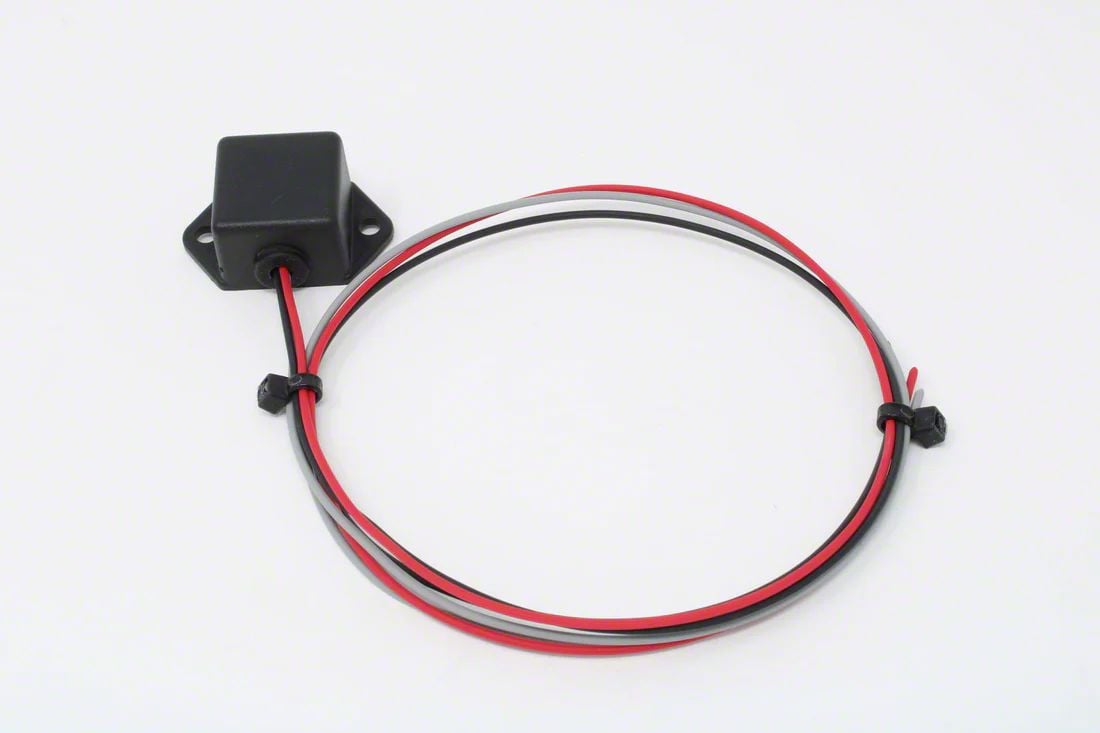

Aeromotive SmartRamp Voltage Booster Controller for JMS FuelMax (Universal; Some Adaptation May Be Required)

Item CH37866
Product Image
Our Price

$72.33

Military, Medical & First Responders $3.62 Available in AM Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Voltage Boosting A Fuel Pump Can Result In A Dramatic Increase In Pump Performance
        • _x000D_
      • Automatically Adjusts Output Voltage Of The JMS FuelMax Voltage Booster Based On Output Duty Cycle
        • _x000D_
      • Operates By Monitoring OEM Fuel System Control Module Or VaporWorx PWM Controller Output
        • _x000D_
      • Increases Voltage To Fuel Pump Only When Needed To Meet Commanded Fuel Pressure
        • _x000D_
      • Minimizes Voltage To The Pump To Only What Is Required
        • _x000D_
      • Eliminates The Need For MAP, Spark, TPS Or Other Input Connections
        • _x000D_
      • Simple Connections With Two Wires To Vehicle And One To JMS FuelMax
        • _x000D_
      • Requires FSCM Or VaporWorx PWM With Pulsed Pump+ Circuit
        • _x000D_
      • Avoids Voltage Increase When Unnecessary At Lower RPM Or Load Conditions
        • _x000D_
      • Most OEM FSCM May Produce MIL Codes If Input Voltage Exceeds 16.5V
        • _x000D_
      • VaporWorx PWM Controllers Can Accept Up To 22V
        • _x000D_
      • Effective For High Power Pumps With Voltage Booster Limitations
        • _x000D_
      • Rule Of Thumb: 1V Voltage Change Results In Approximately 15% Change In Pump Performance
        • _x000D_
      • A 2.2V Increase Can Result In Approximately 30% Output Increase
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      SmartRamp Voltage Control. The Aeromotive SmartRamp Voltage Booster Controller for JMS FuelMax is designed to optimize fuel pump performance by dynamically adjusting the output voltage based on the fuel demand. This intelligent controller monitors the output duty cycle of the OEM Fuel System Control Module or VaporWorx PWM controller and increases voltage to the fuel pump only when necessary to maintain the commanded fuel pressure, preventing unnecessary voltage increases and potential system stress.

      _x000D__x000D_

      Construction and Appearance. The unit features a compact, durable housing with quality internal circuitry designed for automotive environments. It incorporates a straightforward wiring scheme that simplifies installation while delivering robust and reliable voltage control performance, housed in a professional automotive-grade enclosure.

      _x000D__x000D_

      Installation. Installing the SmartRamp controller is straightforward, requiring no drilling and minimal wiring changes, with only two wires connected to the vehicle and one to the JMS FuelMax. It is compatible with systems where the Fuel System Control Module or PWM controller has a pulsed positive supply circuit for the fuel pump.

      _x000D__x000D_

      Warranty. This product is backed by a one-year limited warranty covering defects in material and workmanship.

      _x000D__x000D_

      Application. This controller fits universally, though some adaptations may be required depending on the vehicle’s electrical system and fuel pump control setup.

      Aeromotive 66709
