Auto Meter DashLink II Wireless Data Module (Universal; Some Adaptation May Be Required)
Item CH22059
Our Price
$194.10 kit
Military, Medical & First Responders
$9.71 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- User Configurable Range
- Instruction PDF Download Available
- Display The Gauges You Want, Where You Want On Your Favorite iOS Or Android Device
- Data Log Record And Playback Log Files Showing OBD-II And Acceleration Data
- Peak Recall Feature Allows Viewing Maximum Values Conveniently Without Distracting From Driving
- Skid Pad Displays Lateral And Acceleration/Braking G-Forces With Minimum And Maximum Indicators
- Rainbow Track Map Visualizes Location, Acceleration, And Braking Over Laps; Compare Changes Between Laps
- Inclinometer Monitors Vehicle Pitch And Roll, Useful For Off-Road Applications
- Supports OBD-II Diagnostics; Read And Clear Diagnostic Trouble Codes (DTCs)
- Calculate Averages Like Fuel Consumption, Vehicle Speed, Boost Pressure, And Other Monitored Parameters
- Trip Computer Maintains Statistics For Up To 5 Trips
- Automatic Data Logging Activated Under User-Defined Conditions (e.g., Pedal Position Over 50%, MAP Above 60 Kpa)
- GPS Track Mapping With Line Coloration Based On User-Selectable PID Such As Instantaneous MPG, HP/Torque, Pedal Position
- Alarms And Alerts With Sound Triggered When User-Set Conditions Are Met
- User-Selectable Background Colors
- Performance And Drivetrain Monitoring Including Engine Speed, Vehicle Speed, Estimated HP And Torque, Engine Coolant Temperature, Manifold Absolute Pressure, Lambda/Wideband AFR, Fuel Pressure, Ignition Timing, Intake Air Temperature, Ambient Air Temperature, Mass Airflow, Fuel Trim (Short And Long Term), Engine Load, Catalyst Temperature, 0–60 MPH, 1/8 & 1/4 Mile Times, Accelerometer Data (Pitch, Roll, Forward, And Lateral)
- Fuel Economy Parameters Including Instant And Average Fuel Economy, Distance Traveled, Distance/Time To Empty, Fuel Level, Fuel Consumed, Elapsed Drive Time, Average CO2 Emission Rate, Total CO2 Emission, Number Of Fill-Ups, Average Fuel Flow, Average Speed, Idle Time
- Emissions Monitoring Including Reading And Clearing Diagnostic Trouble Codes, Readiness Status, Loop Status, O2 Sensor Voltage
- Supports All OBD-II And EOBD Compliant Vehicles Worldwide And All OBD-II Protocols: SAE-J1850 (PWM And VPW), ISO-9141, ISO-14230 (KWP2000), And ISO-15765 (CAN)
- Manufacturer-Specific Data Available For Select Vehicles Via In-App Purchase
- Compatible With Apple iOS And Android Devices Running OS 4.0 Or Later
- Fits Universal OBD-II Port; Some Vehicle-Specific Adaptation May Be Required
| Brand | Auto Meter |
| Gauge Type | Multi Gauge |
Description

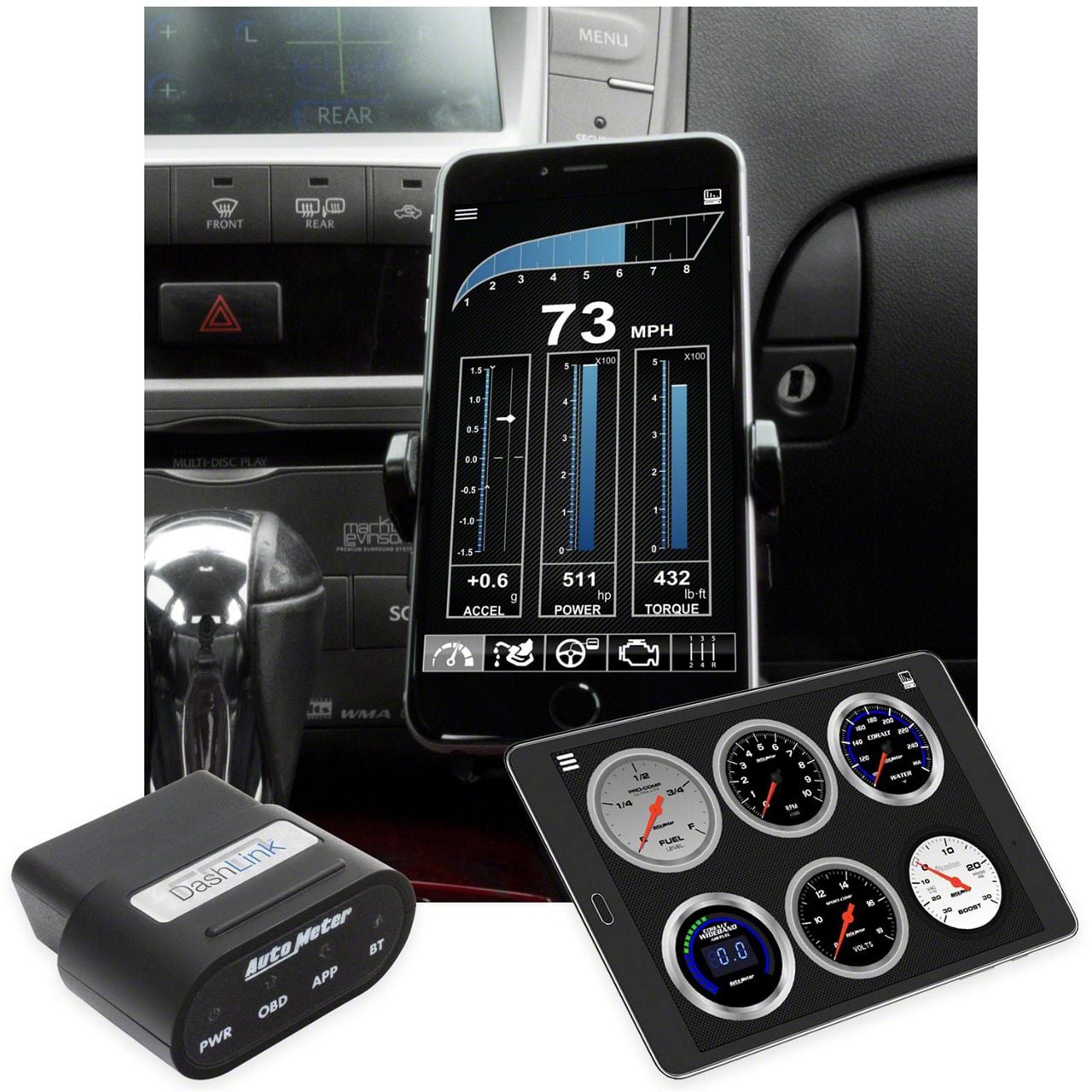

Vehicle Data Module. The Auto Meter DashLink II Wireless Data Module is an OBD-II digital gauge system that transforms your Apple iOS or Android device into a customizable vehicle monitoring platform. It enables real-time data display, logging, and diagnostics, providing critical engine and performance information with plug-and-play ease. This module is designed for precise vehicle monitoring for both enthusiasts and professionals.
Construction and Appearance. The module has a compact, durable casing engineered for longevity and convenient use. It features advanced electronics that interface seamlessly with your vehicle’s OBD-II port and mobile device. The finish is sleek and professional, emphasizing practical aesthetics suitable for daily driving and motorsport environments.
Installation. Installation is straightforward and requires no tools or drilling; simply plug the unit into your vehicle’s OBD-II port. The wireless connection to your mobile device immediately enables full functionality, allowing quick and hassle-free setup.
Warranty. This product includes a manufacturer-backed warranty to ensure quality and reliability.
Application. Fits universal OBD-II-compliant vehicles worldwide; however, some adaptation may be necessary depending on specific vehicle protocols and configurations.
Auto Meter 6036
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) DashLink II Wireless Data Module
