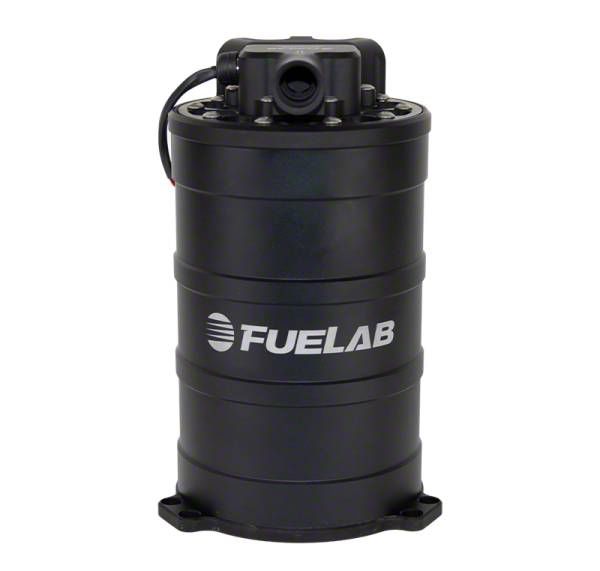

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 625 HP; 235mm Tall (Universal; Some Adaptation May Be Required)
Item CH43164
Our Price
$1,616.00
Military, Medical & First Responders
$80.80 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- H/E Series 235mm Tall Fuel Surge Tank System with 625 HP SAE Plate Mount Brushless Twin Screw Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 2.1L Fuel Surge Tank System with Speed Controllable, Twin Screw DC Brushless Fuel Pump, 300 lph Flow Rate _x000D_
- Allows High Fuel Flow Output with Minimal Modifications to the OE Fuel Tank and Module _x000D_
- Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel _x000D_
- 235mm Tall _x000D_
- FST Rated Volume: 2.1 L _x000D_
- Single Twin Screw DC Brushless Fuel Pump Included _x000D_
- Rated to Flow 300 lph at 45 psi, 125 psi Maximum Pressure _x000D_
- Integrated Controller with PWM Speed Control (100Hz to 5000Hz Compatible) _x000D_
- Billet Aluminum Construction with O-Ring Sealing and -8AN Fuel Ports _x000D_
- Compatible with Pump Gasoline, Racing Gasoline, and E85 _x000D_
- Return Line Required to Return Excess Fuel Back to Vehicle Fuel Tank _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
Description
Fuel Surge Solution. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 625 HP; 235mm Tall is engineered to deliver consistent fuel flow under high-demand conditions. It prevents fuel starvation and sloshing by maintaining a ready volume of fuel, making it ideal for high-performance and racing applications. This surge tank system enables increased fuel flow with minimal modifications to the original equipment fuel tank and module.
_x000D__x000D_Construction and Appearance. Constructed from billet aluminum with precision O-ring sealing and featuring -8AN fuel ports, the system offers durability and leak-free operation. Its compact 235mm height allows versatile mounting options. The integrated controller with PWM speed control provides adjustable fuel pump operation for optimal fuel management.
_x000D__x000D_Installation. Installation is straightforward, designed to fit SAE plate mounts. Minor adaptations may be necessary depending on the vehicle configuration. No extensive modifications such as drilling are usually required.
_x000D__x000D_Warranty. This fuel surge tank system is backed by a limited lifetime warranty, ensuring quality and reliability.
_x000D__x000D_Application. Universal fit; some adaptation may be required.
