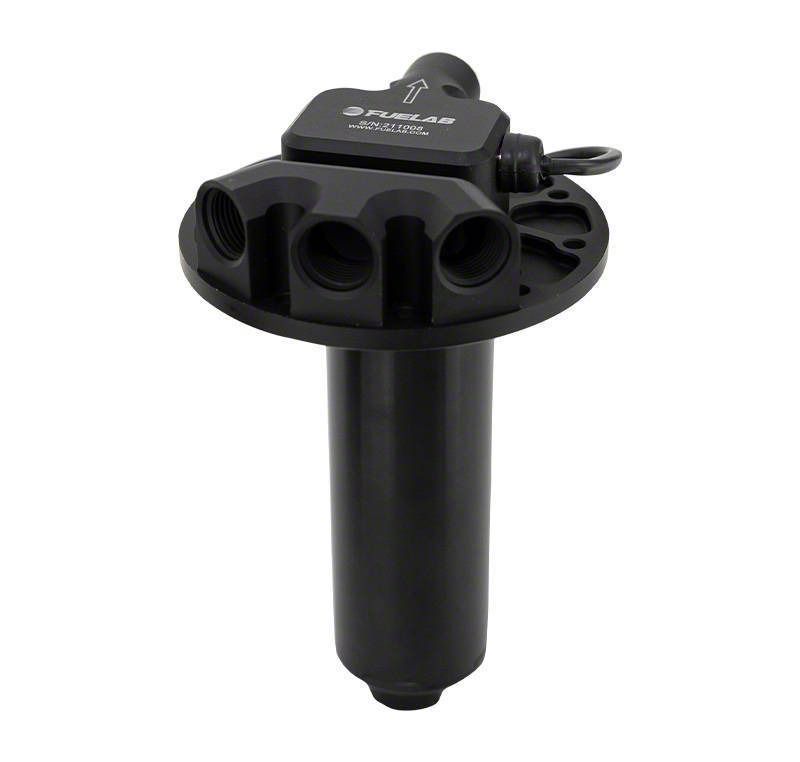

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 1500 HP; 625 LPH (Universal; Some Adaptation May Be Required)
Item CH43208
Our Price
$1,416.00
Military, Medical & First Responders
$70.80 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- 625 LPH @ 45 PSI, 125 PSI MAX Operating Pressure _x000D_
- Rated Up To 1500 HP _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- Higher Efficiency Means Less Current Draw And Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation Vapor Lock _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Variable Duty Motor Speed _x000D_
- Lightweight Super-Efficient DC Brushless Motor _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode _x000D_
- Wet Motor Design With No Dynamic Shaft Seals _x000D_
- Compact And Lightweight With Less Than 2.5 lbs Weight _x000D_
- Overall Length 8 Inches, Pump Diameter 2 Inches _x000D_
- Billet Aluminum Construction With MIL-A-8625 Type II Anodize _x000D_
- Flange Mounted SAE 10-Bolt Pattern _x000D_
- Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Compatible With PWM Output Frequency From 100 Hz To 5000 Hz _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
Description
High-Performance Fuel Pump. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 1500 HP; 625 LPH is engineered to deliver reliable, high flow rates for demanding automotive applications. It ensures consistent fuel delivery at pressures up to 125 PSI, supporting engines up to 1500 horsepower. This pump is ideal for enthusiasts and professionals seeking efficient, durable fuel system components.
_x000D__x000D_Construction and Appearance. Featuring a compact, lightweight design crafted from billet aluminum with a MIL-A-8625 Type II anodized finish, this pump offers durability and corrosion resistance. Its sleek 8-inch length and 2-inch diameter allow for easy integration with fuel cells and fabricated reservoirs. Premium fluorosilicone seals provide multi-fuel compatibility and long service life.
_x000D__x000D_Installation. Installation is straightforward with the SAE 10-bolt flange mount, requiring no special modifications or drilling when used in compatible setups. Its compact size and standard -8AN fittings facilitate integration into a wide range of fuel systems.
_x000D__x000D_Warranty. This pump comes with a limited lifetime warranty, providing confidence and peace of mind for long-term use.
_x000D__x000D_Application. Fits universal fuel system setups, though some adaptation may be necessary depending on specific vehicle configurations and fuel cell designs.
Fuelab 93904
