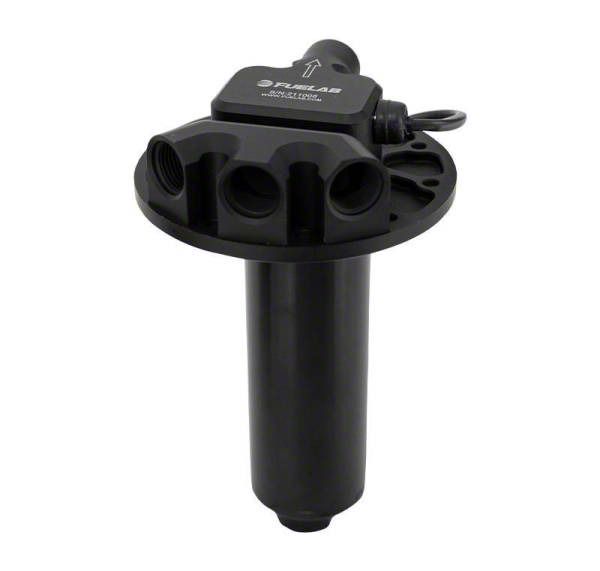

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 625 HP; 300 LPH (Universal; Some Adaptation May Be Required)
Item CH43205
Our Price
$1,259.00
Military, Medical & First Responders
$62.95 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- H/E Series 625 HP SAE Plate Mount Brushless Screw Pump, 300 LPH, Speed Controllable
- Limited Lifetime Warranty
- 300 LPH @ 45 PSI, 125 PSI Max Operating Pressure
- 13.5V Rated Up To 625 HP, Reliable And Efficient
- Compatible With Gasoline, Diesel, Methanol, And Ethanol
- Twin Screw Rotor Pumping Mechanism
- Higher Efficiency Means Less Current Draw And Less Noise
- Superior Priming Capabilities
- Greater Resistance To Cavitation (Vapor Lock)
- 12 To 16 Volt Vehicle Electrical System Compatibility
- Variable Duty Motor Speed
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes To Wear Out Or Corrode
- Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out
- Compact, Lightweight Design, Less Than 2.5 lbs
- Overall Length 8 Inches, Pump Diameter 2 Inches
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II
- Flange Mounted SAE 10-Bolt Pattern For Easy Use With Fuel Cells Or Fabricated Reservoirs
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals
- Accepts Standard Or Port Style -8AN Fittings
- Fits Universal; Some Adaptation May Be Required
Description
High-Performance Fuel Pump. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump, rated for 625 HP and 300 LPH, is designed to provide reliable and efficient fuel delivery for high horsepower applications. It ensures proper fuel flow and pressure for engines up to 625 horsepower, making it ideal for racing and high-performance automotive setups. Its speed-controllable brushless motor allows for precise fuel management and consistent operation under demanding conditions.
Construction and Appearance. This pump features a compact, lightweight design constructed from billet aluminum with an anodized finish conforming to MIL-A-8625 Type II standards. Weighing less than 2.5 pounds with an overall length of 8 inches and a diameter of 2 inches, it combines durability and corrosion resistance with a sleek, professional appearance suitable for in-tank installation.
Installation. The pump is designed for flange mounting using a standard SAE 10-bolt pattern, enabling straightforward installation into fuel cells or fabricated reservoirs. Basic mechanical skills and standard workshop tools are required, with no extensive modifications or drilling typically necessary.
Warranty. This product is backed by a limited lifetime warranty, reflecting its high-quality construction and reliability.
Application. Fits universal applications; some adaptation may be required based on vehicle and reservoir configurations.
Fuelab 93901
