Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH (Universal; Some Adaptation May Be Required)
Item CH43145
Our Price
$1,311.00
Military, Medical & First Responders
$65.55 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In-Line Fuel Pump Rated Up To 1250HP Street/Strip Twin Screw DC Brushless Driven Fuel Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 550 LPH At 45PSI, 125PSI Max Operating Pressure _x000D_
- 13.5v Electrical Compatibility _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- Higher Efficiency Requires Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation And Vapor Lock _x000D_
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode _x000D_
- Wet Motor Design With No Dynamic Shaft Seals That Can Wear Out _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_

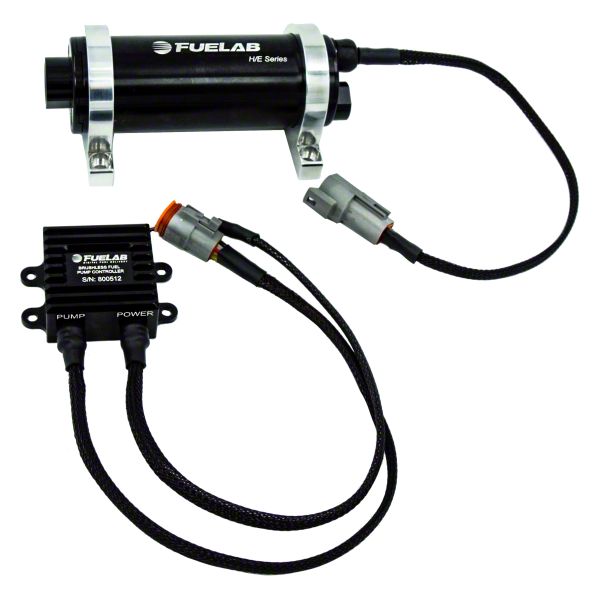

- Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact Lightweight Design Under 3 Pounds Overall Length 7.13” Diameter 2.0” _x000D_
- Billet Aluminum Construction Anodized Per MIL-A-8625 Type II _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
High-Performance Fuel Delivery. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH is engineered to reliably supply fuel to high horsepower engines supporting up to 1250HP. It operates efficiently to provide consistent fuel flow with minimal noise and current draw, ideal for street and strip applications.
_x000D__x000D_Construction and Appearance. The pump features a billet aluminum body anodized to MIL-A-8625 Type II standards for enhanced durability and corrosion resistance. Its compact and lightweight design weighs less than 3 pounds and measures 7.13” in length and 2.0” in diameter. It includes high flux density Neodymium rare earth magnets and multi-fuel compatible fluorosilicone seals for extended service life.
_x000D__x000D_Installation. Installation is straightforward with included billet aluminum mounting brackets. The pump is compatible with standard or port style -8AN fittings, making setup simple without the need for complex modifications.
_x000D__x000D_Warranty. This fuel pump carries a limited lifetime warranty to ensure long-term reliability and customer confidence. Application. Designed to fit universal applications, though some adaptation may be necessary depending on the vehicle and system configuration.
Fuelab 47413
