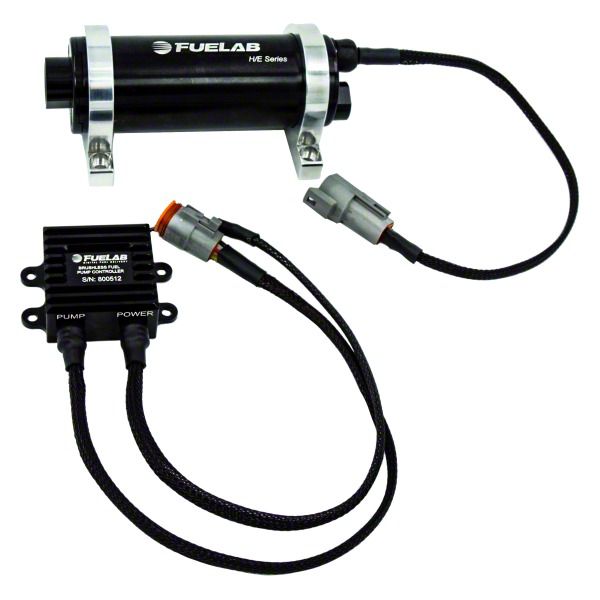

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH (Universal; Some Adaptation May Be Required)
Item CH43146
Our Price
$1,364.00
Military, Medical & First Responders
$68.20 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- High Efficiency EFI In Line Fuel Pump Rated Up To 1500HP Street/Strip Twin Screw DC Brushless Driven Fuel Pump
- Limited Lifetime Warranty
- 625 LPH At 45PSI 125PSI Max 13.5V Rated Up To 1500HP
- Compatible With Gasoline Diesel Methanol And Ethanol
- Twin Screw Rotor Pumping Mechanism
- 125PSI Max Operating Pressure
- Higher Efficiency Means Less Current Draw And Less Noise
- Superior Priming Capabilities
- Greater Resistance To Cavitation Vapor Lock
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes To Wear Out Or Corrode Low-Sulfur Diesel No Problem
- Wet Motor Design No Dynamic Shaft Seals That Can Wear Out
- 12 To 16 Volt Vehicle Electrical System Compatibility
- Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control
- Continuous Duty Motor Speed
- Compact Lightweight Design Less Than 3Lbs Overall Length 7.13” Diameter 2.0”
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II
- Includes Two Billet Aluminum Mounting Brackets
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals
- Accepts Standard Or Port Style -8AN Fittings
- Fits Universal; Some Adaptation May Be Required
Description
High Performance. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH is a precision-engineered fuel delivery system designed for high horsepower applications up to 1500HP. It provides consistent, efficient fuel flow at pressures up to 125 PSI, making it ideal for street and strip use with various fuels including gasoline, diesel, methanol, and ethanol. This pump ensures reliable priming and resistance to vapor lock, critical for optimal engine performance under demanding conditions.
Construction and Appearance. Constructed with billet aluminum and finished with MIL-A-8625 Type II anodizing, this fuel pump is compact and lightweight, weighing less than 3 lbs. It features a robust twin screw rotor mechanism and advanced brushless motor technology with neodymium rare earth magnets. The design includes durable fluorosilicone static seals compatible with multiple fuel types and is built for longevity and corrosion resistance.
Installation. This pump is designed for straightforward installation with included billet aluminum mounting brackets and standard or port style -8AN fittings. Installation generally requires moderate effort and may involve some adaptation depending on the vehicle’s specific fuel system layout, but no complex modifications or drilling are typically necessary.
Warranty. The pump is backed by a limited lifetime warranty, ensuring durability and customer confidence in the product’s performance.
Application. Fits universal applications; some adaptation may be required to integrate with specific vehicle fuel systems due to physical or electrical variations.
