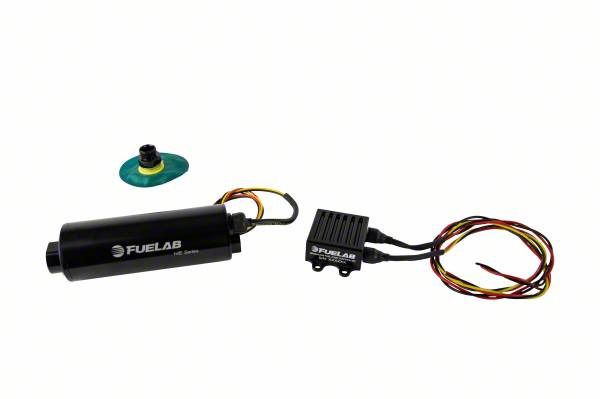

Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 625 LPH (Universal; Some Adaptation May Be Required)
Item CH43126
Our Price
$1,311.00
Military, Medical & First Responders
$65.55 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- In-Tank Fuel Pump Kit contains 625lph twin screw brushless pump, remote mount PWM controller, and 65 micron straining filter _x000D_
- Compatible with gasoline, diesel, methanol, and ethanol _x000D_
- Twin screw rotor pumping mechanism _x000D_
- 125 PSI max operating pressure _x000D_
- Supports up to 1500HP power at continuous speed for pump gas naturally aspirated engines _x000D_
- Higher efficiency results in less current draw and reduced noise _x000D_
- Superior priming capabilities _x000D_
- Greater resistance to cavitation and vapor lock _x000D_
- Lightweight super-efficient DC brushless motor minimizes current draw _x000D_
- Powerful high flux density Neodymium rare earth magnets _x000D_
- No motor brushes to wear out or corrode; suitable for low-sulfur diesel _x000D_
- Wet motor design with no dynamic shaft seals to wear out _x000D_
- Compatible with 12 to 16 volt vehicle electrical systems _x000D_
- Includes Model 72004 pump controller for full speed PWM or 0-5v input speed control _x000D_
- Continuous duty motor speed _x000D_
- Compact lightweight design under 3 lbs _x000D_
- Billet aluminum construction anodized per MIL-A-8625 Type II _x000D_
- Long life multi-fuel compatible fluorosilicone static seals _x000D_
- Accepts standard or port style -8AN fittings _x000D_
- Compatible with most aftermarket ECUs with PWM output frequency _x000D_
- Supports PWM frequencies from 100 Hz to 5000 Hz _x000D_
- Universal fit; some adaptation may be required _x000D_
Description
Twin Screw Brushless Performance. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit -8AN 625 LPH delivers high-efficiency fuel delivery for gasoline, diesel, methanol, and ethanol applications. Designed to support up to 1500 horsepower at continuous operation, it ensures reliable fuel pressure and flow for performance vehicles while reducing noise and electrical load.
_x000D_Construction and Appearance. Built with billet aluminum and anodized to MIL-A-8625 Type II standards, this pump features a lightweight design weighing less than 3 pounds. The internal components utilize fluorosilicone static seals compatible with multiple fuels, and the pump incorporates powerful Neodymium rare earth magnets, offering durability and longevity without brush wear.
_x000D_Installation. Installation requires typical in-tank mounting procedures with no need for additional drilling or complex modifications. The kit includes a remote mount brushless controller compatible with 12 to 16-volt systems and supports variable speed control via PWM or 0-5v input.
_x000D_Warranty. This product is backed by a limited lifetime warranty, ensuring reliability and manufacturer confidence.
_x000D_Application. Fits universal; some adaptation may be required.
Fuelab 20814
