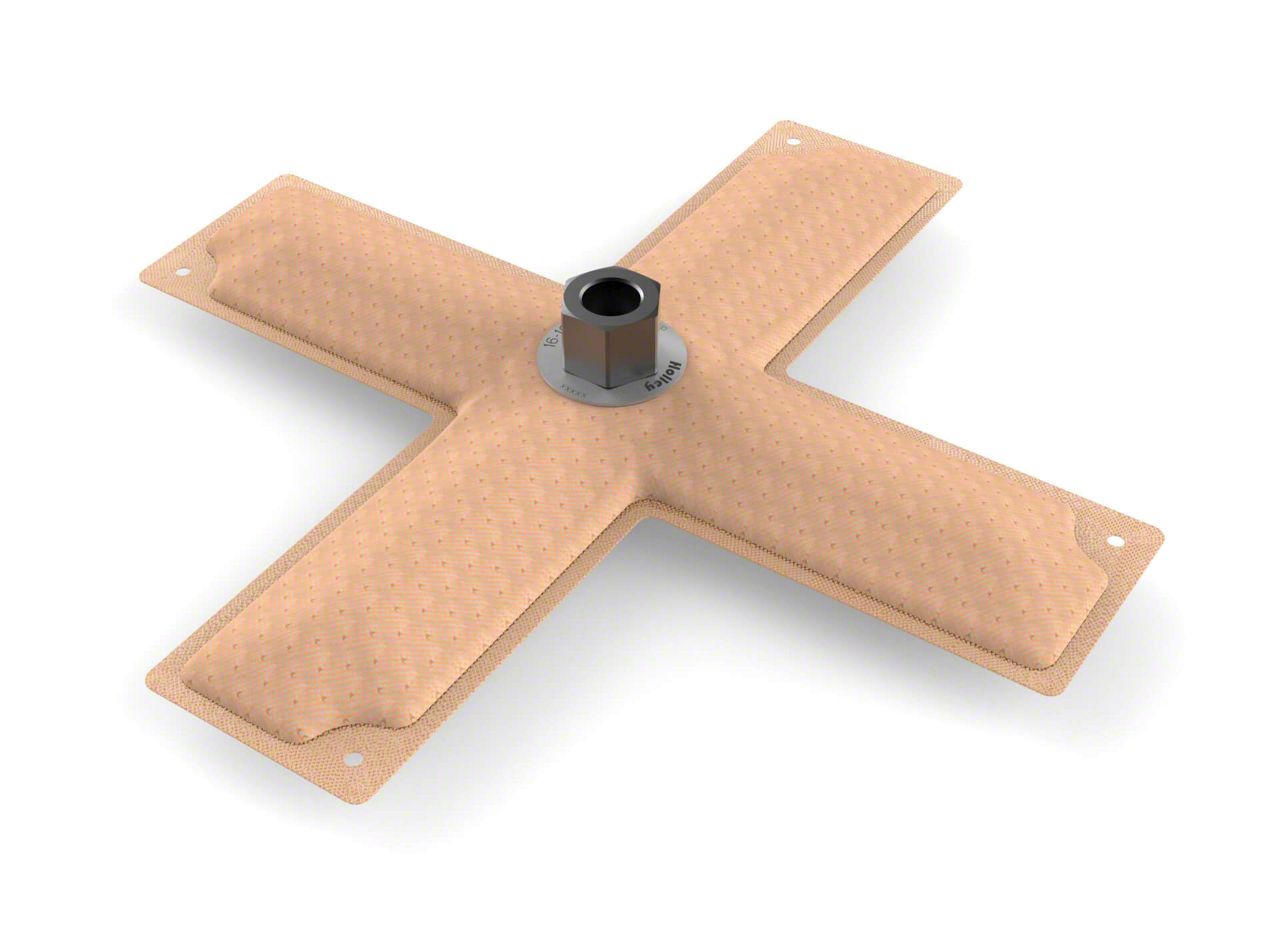

Holley Fuel Tank Pickup; HYDRAMAT (11X11 CROSS) - CENTER OUT- 3/8
Item CH5596
Sale
On Sale
-13% $368.96 Was $425.95
Military, Medical & First Responders
$18.45 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Center Outlet Pick-Up With -3/8" NPT Fitting
- Fitting Location Designed For Universal Use
- Legal For Sale Or Use On Emissions Controlled Vehicles, Uncontrolled Vehicles, And Racing Use Only
- Patent Pending Design That Solves Problems Associated With Traditional Fuel Pick-Ups
- Reduces Potential For Air Entry Into Fuel System, Preventing Poor Engine Performance And Stalling
- Effective During Hard Cornering, Acceleration, Stopping, Inclines, And Low Fuel Conditions
- Uses Surface Tension And Fluid Wicking To Draw Fuel From Nearly Any Contact Area
- Tiny Pores Seal Off As Areas Are Uncovered, Directing Fuel To Be Drawn From Remaining Areas
- Unique Internal Reservoir Maintains Fuel Availability Under Extreme Fuel Slosh Conditions
- Eliminates Need For Specialty Reservoirs, Sumps, And Pick-Up Pumps
- Acts As A 15 Micron Pre-Filter, Removing The Need For Separate Filters Before The Fuel Pump
- Can Be Folded And Compressed For Easy Installation Through Various Fuel Cell Openings
- Compatible With Alcohol, Ethanol, Methanol, And E-85 Fuels
- Works With 2-Cycle Oil Blends Up To 20:1
- Not Suitable For Most Oils And Diesel Fuels
- For Flat Bottom Rectangular Style Fuel Cells With Minimum Dimensions Of 11" Long And 11" Wide Cross
- Recommended Fuel Return Should Be Discharged Near The Pick-Up At Minimum 1 Inch Above The Mat
- Female NPT Thread Does Not Require Sealing Paste Or Tape To Prevent Fuel Pump Failure
Description
Fuel Tank Pickup Solution. The Holley Fuel Tank Pickup; HYDRAMAT (11X11 CROSS) - CENTER OUT- 3/8 is designed to enhance fuel delivery reliability by preventing fuel starvation during demanding driving conditions. It addresses issues caused by fuel slosh and low fuel levels to ensure consistent engine performance. Ideal for racing and street applications, it improves fuel availability without adding complexity to the fuel system.
Construction and Appearance. The HydraMat features a beige, patent-pending, porous wicking media that utilizes surface tension to efficiently pull and store fuel. Its large coverage area and internal reservoir technology enable it to draw fuel from nearly any part of the tank or cell. The flexible design allows the mat to be folded and compressed for easy installation through a variety of fuel cell openings.
Installation. Installation is straightforward, with no sealing paste or tape required for the female NPT fitting to prevent pump failure. It can be mounted using recommended hardware such as Click Bond stud kits from aircraft supply retailers without the need for drilling.
Warranty. This product carries a manufacturer’s limited 90-day warranty. Application. Designed specifically to fit flat bottom rectangular style fuel cells with minimum dimensions of 11 inches long by 11 inches wide cross. Proper function requires the fuel return to discharge near the HydraMat pick-up, at least one inch above the mat.
Holley 16-104
