Review & Install Video
Hey guys, Adam here with americanmuscle.com. And today we're taking a closer look at and of course, installing our Injen Power-Flow Cold Air Intake with the polished finish available for the '09 and and newer 5.7 Challenger. You should be checking this out for your own Challenger if you're looking to upgrade from your factory airbox to one that is gonna help your engine breathe a lot better, increasing horsepower and torque numbers as well as giving you a better throttle response. This particular option is the more affordable option out of Injen's lineup, giving you a nice, SuperNano-Web, reusable, washable oiled filter. Right out of the box, this thing is a night and day upgrade when compared to your factory paper element filter. I'll talk to you guys a little bit more about that, comparing it to stock in just a little bit. Know that this does come with an included air inducer, velocity stack and stabilizer to help streamline that cold air, pulling in as much cold air as possible while filtering out those particles and debris that you don't want getting into the engine bay way better than your factory one ever could. This being that SuperNano-Web filter from Injen is a huge upgrade. It's a several layer, an eight layer cotton gauze filter to be exact with a mesh filter on the outside here to make sure it's filtration capabilities are unmatched. As a matter of fact it has a 99.53% filtration efficiency rate which is a pretty impressive number if I do say so myself.
Now, Injen does let us know that you can expect horsepower and torque numbers but this does not require a tune. That's a huge thing to note here. Picking this up, it's a direct bolt-on out of the box. You don't have to tune your ECU in order to get this to function properly. With that said, a tune would maximize your gains as it would with any bolt-on power adder but here, we're just gonna bolt it up and show you guys how to install it. We're not gonna be dyno testing it today. Throttle response is definitely something that will increase. This is something you should be feeling at the low end especially and helping with acceleration off the line.
The tubing itself is gonna be a big upgrade as well. This is gonna be a two-piece option. This piece being a nice silicone bolt-on mod that's gonna help you both right to the throttle body and then to the tubing itself from Injen which, by the way, is a cast aluminum tubing. This is a very lightweight, very affordable and honestly, very durable tubing. This isn't gonna be as in-depth as the more premium option which would include their Power-Flow tubing and their powerful airbox. This one instead includes a billet aluminum heat shield that's gonna come with weatherstripping to make sure that it's clamping down and trapping in that cold air up against the inside of your hood. That's not only going to trap in the cold air but it's gonna trap out the heat from the engine bay. The engine, of course, gets extremely hot so trapping out that engine heat, it's gonna make sure that you're not pulling in hot air. It's exclusively pulling in that cold air and we'll show you guys how to assemble that in just a little bit.
It also comes with the extended breather hose connect so you don't have to play with any tubing connections or fittings. It all comes pre-welded right on the tubing here which I think is a huge upgrade. It's not like some of the other options in the category that has a separate hose fitting that you have to play with during the install. That's welded there and it's the perfect length so you don't have to worry about any extensions or things not reaching properly. Injen took care that for you. Their Power-Flow technology built in here is making sure that you have a streamlined airflow from tubing to manifold. There's nothing kinked up. There's no restrictions. Free-flowing airflow is what you can expect with this cold air and because it is one of the more affordable options in the category and it's the Injen's more affordable option in their series, you can expect the price tag right around 230 bucks. This, when compared to their more premium Power-Flow Box which comes in right around 350 toward 400 bucks, you're definitely gonna be saving a lot. So, it's a good budget-friendly mod and it's extremely easy to install at that. One out of three wrenches on our difficulty meter here. Definitely, anybody can tackle this in the driveway at home with very simple hand tools in about an hour, maybe two at the absolute most if you're a little bit more inexperienced.
The tools used in this install include an impact gun, ratchet, eight, 10 and 16-millimeter deep sockets, 15-millimeter wrench and a flathead screwdriver. All right. Step number one for the uninstall, of course, just pop off your engine cover. Now, of course, we're working with a 5.7. This may be a little bit different for the guys out there with a 6.1 but shouldn't vary too much. Just pop off that engine cover and just set it aside. Next up, we're gonna do our sensor right on the side of the tubing that connects to the throttle body. It's really just a pinch and disconnect. From there you actually wanna remove the fitting for the sensor itself which you're just gonna twist, pull straight back on. This is extremely sensitive so set this aside and just make sure it's out of the way of any danger. Next up here, grab an eight-millimeter socket or a flathead screwdriver and we're just gonna loosen up the clamp holding the intake tubing to the throttle body. From there you should be able to twist it up, pull this back. Before we can remove this, we have one more bolt to remove as well as a hose and then the whole thing will come off in one piece.
All right. Next step is the bolt holding the factory heat shield to the front support. That's also an eight-millimeter. Just loosen that up and take that out. From here we're gonna disconnect the hose, the breather line, on this end. Just gonna wiggle it back and forth and pull it straight back. At this point, we should be able to disconnect this from the throttle body and pull it all up in one piece. This will pull straight up. Pull out of the throttle body. Can lift up on this end here and we're just gonna set all this aside. Now this bracket was used to hold on that factory intake at the extension portion. So, we're just gonna go ahead and remove it because we're not gonna need it for our aftermarket intake. So I'm gonna take a 16-millimeter socket and just remove this bolt. At this point, you can grab a 15-millimeter wrench to hold the inside bolt. Grab your 16 socket again and just pop off the nut on the outside. This way the bracket's out of the way but there isn't an open hole there and just thread the bolt back in there and tighten up that nut.
So we've got that factory airbox off of our 5.7 and on the table next to all of the pieces of our Power-Flow intake from Injen and just to quickly go over a couple of things, I know I talked about a lot already, you can see a night and day difference between how the factory intake is set up all in one piece and the different components of our Injen option. That flat paper element filter is built into this heat box which I will say, this airbox here does a really good job blocking out the excess engine heat but it might not be optimized for pulling in the most cold air. That factory paper element filter is also not gonna be as efficient in filtering out all the unwanted particles like this conical filter from Injen will be. This is gonna be a huge upgrade and because it's not gonna be trapped up in a box like this, it will have the opportunity to pull more cold air in, especially from underneath. Now, I will say that we do have to transfer over a couple of things to our new tubing which, by the way, doesn't flex and kink up like your factory one does. Your factory one has that accordion-like center that can definitely restrict some of that airflow and cause a little bit of air turbulence. Not the case here with the solid aluminum. We do have to transfer over our factory sensor to our new Power-Flow coupler.
I really like this setup. Now I know some people might not like the color difference between the aluminum filter and your black or gloss black coupler here. This is silicone. Some guys might like it to be all one piece. I find it actually get a little bit more convenient and honestly, a little bit more durable when you have an entire coupler like this or an elbow like this that connects to your throttle body. There's less of a risk of it popping off which can be the case with some of these aftermarket filters and aftermarket cold air intakes. Sometimes that coupler being a little too small and a little too greased up can actually pop off itself. This, not gonna be the case here. It's all one piece. Very durable elbow. I'm excited to see this installed. What we're gonna do is install that sensor to the grommet that's already installed on this elbow. From there, we're gonna start connecting these pieces as well as installing the weatherstripping on our heat shield. Step number one, let's get rid of this thing.
First up here, grab your Power-Flow silicone coupler, grab your factory sensor and insert that into the pre-installed grommet. Now, it might take a little bit of play. It's a little bit of a tight squeeze but the...put a little pressure on there, twist it around and you'll be able to get it to pop into place. You just wanna make sure that the rubber grommet doesn't fall in. Now, if it does, you're gonna wanna remove it and try to insert that again. Perfect. Once you have that inserted, you just wanna rotate it so that the clip portion and the sensor is facing the throttle body which we have here. At this point, we can set this aside.
Next step would be to assemble your weatherstripping onto your heat shield here. Your heat shield is essentially gonna sit up just like this. It's gonna sit just like this inside your engine bay and the weatherstripping is gonna go straight across the top, down into this dip and straight up to the top of this bracket. The smaller portion is gonna go on this side here. The first thing we're gonna do is the top. Now some guys, you might find it easier to cut but to get the most out of the weatherstripping, you wanna keep it all in one piece. Set this right over top there and dip it straight down making sure everything stays seated. It's a really tight squeeze but once you get it, you'll be able to see that this is gonna have a really tight air-sealed lock around the inside of your hood and the inside of your intake tubing. Perfect. Now, on the side here, we're gonna insert the rest of that weatherstripping. All right. Now we can get ready to assemble this inside the vehicle.
Step number one, under the hood here, is grab that Power-Flow coupler. Put it right up against the throttle body locking that into place. Grab an eight-millimeter socket or a flathead screwdriver and tighten up that clamp on the throttle body. Perfect. Next step is the rest of the tubing here.
Now the next step, includes that bump stop. Now this bump stop is gonna stop any vibration from the heat shield up against the side here of our wheel well. This is gonna install right into this open pre-drilled hole inside the car. In order to secure that, you're gonna use an M6 nut. That's gonna go inside of the wheel well in our driver side wheel. You don't actually have to jack the car up and there's no need to remove anything. You can actually just stick your hand inside of the wheel well while holding this in place here and tighten it down by hand. If you get your hand in the wheel well and just twist the bump stop, you'll actually tighten it up against the nut. So, in order to do that, just turn your driver side wheel all the way to the left, open up that wheel well, stick your hand in there and secure it with the nut.
Next up is the heat shield. We're gonna drop it into place on the inside of the reservoir and we're gonna line up the pre-drilled hole on the bracket on the heat shield to that bump stop we just installed and we're gonna secure it on the opposite end with another one of those nuts. I know this might be tough to see but the stud on the inside of that bump stop we just installed comes through the heat shield. You just bolt it down with another one of those nuts on this side. That way that bolts down and as you can see, this bracket flexes and lines up with the open hole here that we removed our factory screw from. So now we're gonna bolt this down once our intake tubing's in place.
All right. From here, another one of these bump stops comes in and we can screw it into place. Again, it requires a little bit of flex. That screws down to that lock nut. The tubing goes into place on this filter and the bracket lines up with this stud. We're gonna pop this into place on the Power-Flow coupler. Line up that clamp. Line up this. Everything's in place. Grab your eight-millimeter socket and tighten that clamp down. Next up, throw a washer on top there as well as another one of your M6 nuts and that'll cap off the rest of that. You can grab a 10-millimeter socket and tighten that down and then we'll pop on our filter.
Next up is your filter. That's gonna go on the end here with one of those clamps. Rotate that upward, grab your eight-millimeter socket and tighten it down. At this point, we have two things left, our sensor harness and our tubing. At this point, we can take our factory crankcase breather hose and slide that on over-top of the welded on fitting. That'll hold itself in place nicely. That's tight and secure. The next step is gonna be the harness on the sensor. That clips right in place and we'll top it off with our engine cover. Pop it on the studs on both sides, snap it down and you're good to go.

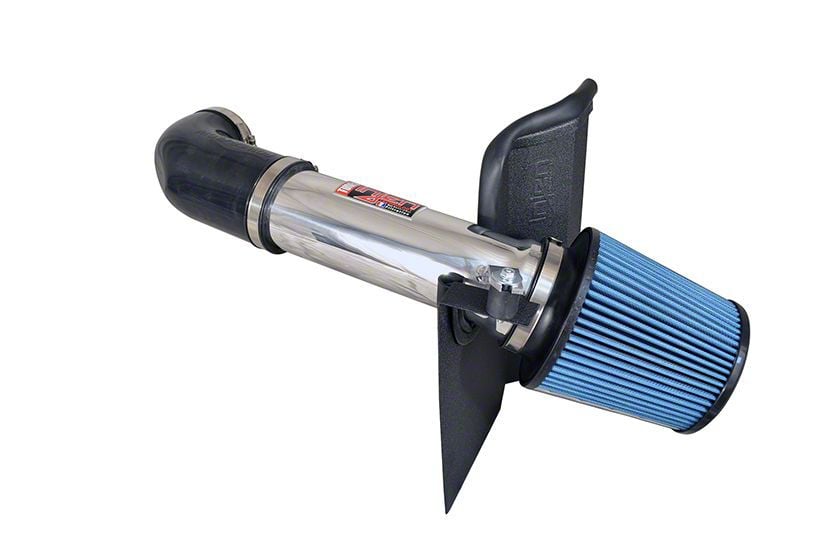

Well that's gonna wrap up my review and install for the Injen Power-Flow Cold Air Intake with the heat shield in the polished finish available for the '09 and newer 5.7 HEMI equipped Challengers. You can get yours right here at americanmuscle.com.
Superior Air Flow.
Enhance the airflow performance of your Dodge Challenger with the Injen Power-Flow Cold Air Intake with Heat Shield. This cold air intake system utilizes the patented Mega Ram Technology tuning process to ensure the air-to-fuel ratio remains within desirable limits. This results in increased horsepower and enhanced torque. Let Injen Cold Air Intake deliver powerful acceleration, super fast throttle response, and consistent power enhancements to your ride.
You don’t need to tune this cold air intake system because it has already been tuned using Mega Ram Technology. This is the world’s first custom-tuned air intake kit for the drivetrain of your Challenger. It has undergone dyno-testing, and has been fine-tuned to produce superior performance across the RPM spectrum.
Injen SuperNano Air Filter
. The SuperNano Web Dry Air Filter works by increasing airflow while capturing and holding more dirt than standard air filters. It features a built-in air inducer, an air stabilizer, and a velocity stack. The velocity stack streamlines the filtered air efficiently into the intake tract.
Designed to Last
. The Injen Power-Flow’s mandrel-formed inlet tubing is manufactured using highly polished aerospace-grade 6061 cast aluminum that is lightweight and can withstand corrosion. This heavy-duty build offers a clean, striking look while ensuring that the air flow goes through the system smoothly. This kit also includes a heat shield that works to seal against the hood and isolate the filter from engine heat.
Although this cold air intake system is a bolt-on installation and no drilling is required, Injen highly recommends that a professional mechanic install this cold air intake system. Installation hardware and instructions come with the kit.
Covered by a Limited Lifetime Warranty
. All Injen intake systems, excluding the filter element, come with a limited lifetime warranty against defects in material and workmanship. Some exclusions may apply. Please see the manufacturer's warranty for details.
. The Polished Injen Power-Flow Cold Air Intake with Heat Shield is designed exclusively for all 2011-2019 Dodge Challenger 5.7L models.
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- What's in the Box
- (1) MR Tech Intake System
- (1) High Flow Web/Nano Fiber Filter
- (1) Heat Shield
- Installation Hardware
- Instruction Guide
- Installation Info
(approx) 4 Hours
Light to Moderate mechanical skill required.
- Will it fit my Challenger?
- R/T - 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
- R/T Classic - 12
- R/T Plus - 15, 16
- R/T Plus Shaker - 16
- R/T Shaker - 16
- T/A - 17, 18
