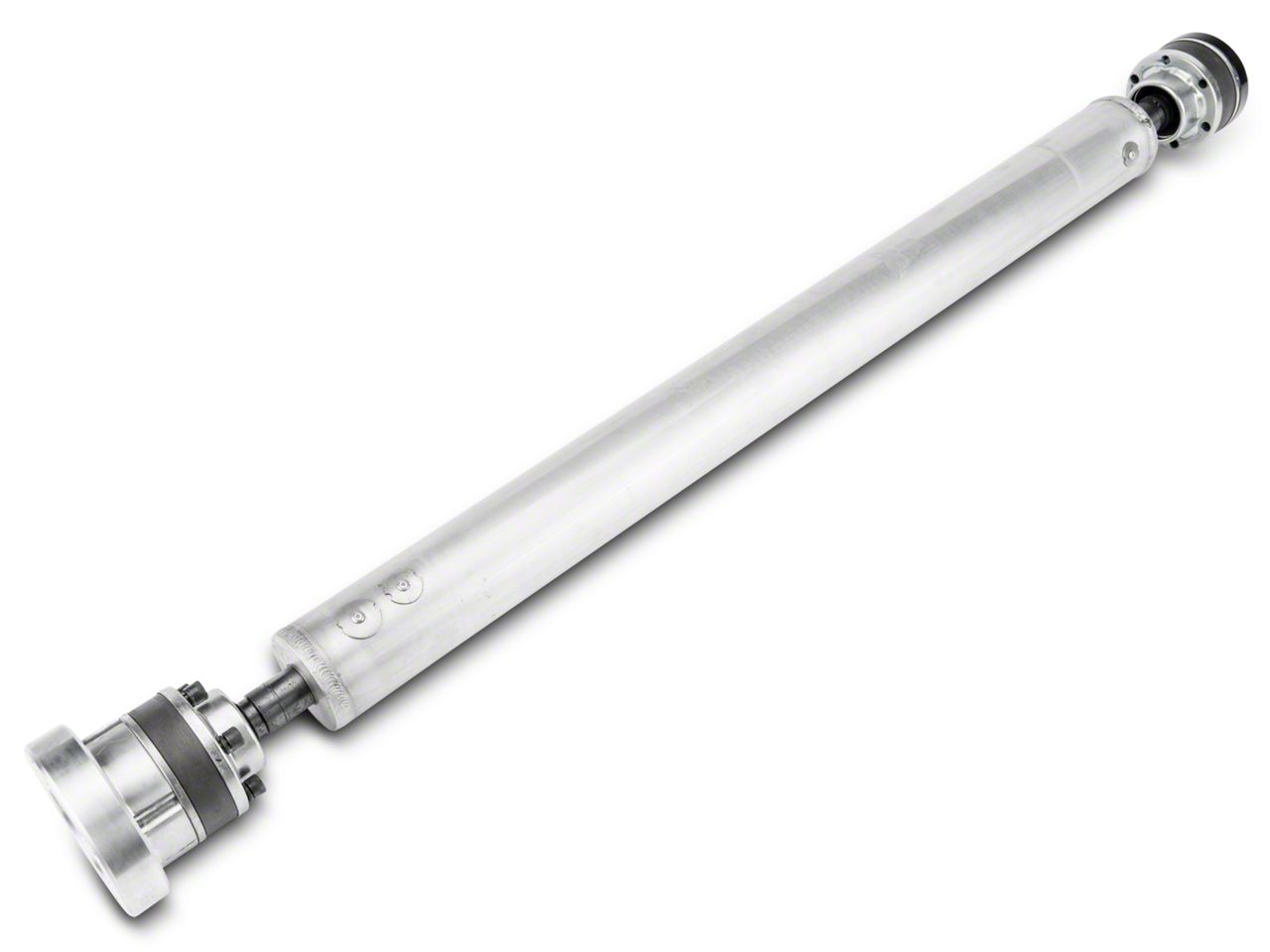

The Driveshaft Shop 3.5 in. Aluminum One Piece Driveshaft (15-17 GT w/ Automatic Transmission)

$0.00
Market Price $892.49 You Save 10% ($89.25)
Our Price

$803.24 (each)

FREE Shipping

  • Item 384850

Will this fit your Vehicle?

Change Vehicle Help?
In Stock Ships same business day.
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features, Video & Details

    • Reduces Rotating Mass for Quicker ET's
    • Lighter and Stronger Than Stock
    • 6061-T6 Aluminum Construction - Rated for 3450ft lbs of Torque
    • One Piece Driveshaft Design
    • 3.5 inch Diameter for Extra Clearance
    • High Speed Balanced - Rated Up to 1000 Horsepower
    • Fits 2015-2017 GT Mustangs Equipped with an Automatic Transmission

    Review & Installation Video

    Review & Install Video

    Hi, everybody. I'm Justin with AmericanMuscle.com, and this is my detailed review of The Driveshaft Shop Aluminum One Piece Driveshaft, available for both your automatic or manual 2015 and up Mustang GT. So the aluminum option from The Driveshaft Shop is going to be for any S550 GT owner out there who is looking to severely strengthen their drivetrain by eliminating that weak factory two-piece driveshaft, while also ditching a good amount of rotational mass away from the car in the process. Now, this is definitely going to be a necessary upgrade for you guys who plan on making big power down the road, or if you do plan on spending a good amount of time at the dragstrip with a sticky tire. All right, let's first start with the strength benefits of the aluminum one piece DSS driveshaft, then we'll talk about some of the weight saving benefits. Now, first and foremost, if you are an S550 owner, you're probably already aware of a few of your weak spots in your drivetrain, mainly those halfshafts being the most predominant or obvious, the factory two-piece driveshaft being a close second. Now, that two-piece driveshaft from the factory has a couple of things working against it in regards to strength. For starters, it's two-piece. There's more connections, meaning more weak spots that are prone to failure. In addition to that, the factory driveshaft is made out of steel, which has been known to snap with enough power and enough traction. The aluminum one piece DSS driveshaft has been rated to 1,000 horsepower, 3,400 pound-feet of torque, and it's been tested in 9,500 RPMs. So this thing has been built to last. You're also going to be looking at BP 108 millimeters CV joints in addition to this one-piece billet adapter that is going to take the place of the factory U-bolt or universal joint, as it's oftentimes called. Now, I do like this, because that factory piece does do a good job of soaking up noise, vibration, and harshness, but it has been known to cause driveline slop. By replacing it with a one-piece billet unit, you're going to be making a more direct connection from the transmission all the way back to the rear end. All right, guys, so we've talked about the strength improvements. Now, let's quickly talk about the weight savings benefits when making the switch to a lightweight aluminum one-piece driveshaft. Now that factory two-piece driveshaft in a manual 2015 and up Mustang is going to weigh in around 33 pounds give or take. The one piece aluminum driveshaft from DSS for a manual car is going to weigh in around 21 pounds. This is an automatic version we have on the table here. This thing's going to weigh a little bit more than the manual version, but figure you're going to be saving anywhere from 9 to 12 pounds of weight in rotational mass. Now, this is never a bad thing, because you're going to feel the car pull through the revs a little quicker, and you might even see some improvements to your 60-foot and ET time at the dragstrip. Nothing crazy, but a slight improvement is certainly not uncommon. As far as price goes, guys, well, as you might imagine, the aluminum version is going to be more affordable when compared to the more expensive carbon fiber version. Now, even though the aluminum version and carbon fiber driveshafts are rated to the same amount of power, the carbon fiber version will offer some other benefits, such as soaking up extra noise, vibration, and harshness. It's going to offer a little bit more torsional twist, easing the shock to your drivetrain on hard launches, and it is slightly smaller in diameter when compared to the aluminum version here, making for a little bit more clearance. Now, are all those benefits worth an extra $400 to $500? Well, that's for you to decide. Believe it or not, guys, the install on a driveshaft really isn't all that bad, just a little time-consuming, because you have to remove the mid-pipe and some other things. So I figure about a two out of three wrenches on the difficulty meter, maybe a couple of hours from start to finish. You're definitely going to need your torque wrench for this one, so make sure you have that on hand before getting started, decent socket set, of course, and don't forget to lock tight the bolts. Also, guys, if you're shopping for driveshafts, this wouldn't be a bad time to consider maybe looking for a safety loop, especially if you're serious about drag racing, as they are required in a lot of events. So you can look for those, and the install will definitely be a lot easier when tackling the driveshaft. In my opinion, guys, the aluminum version of the DSS driveshaft here will be more than sufficient for most setups out there, and in my opinion, will definitely be one of those necessary upgrades along with those halfshafts. If you're making good power, and you're planning on thrashing the car at the strip or on the street, especially if you have a radio or slick in place, be sure to learn more about the DSS stuff, your S550 here at AmericanMuscle.com.

    Light Weight. Lighter and stronger than the factory 2-piece driveshaft, The Driveshaft Shop's One Piece Aluminum Mustang Driveshaft greatly reduces rotating mass to improve your Pony's 1/4 mile track times. It weighs in slightly below 18lbs.

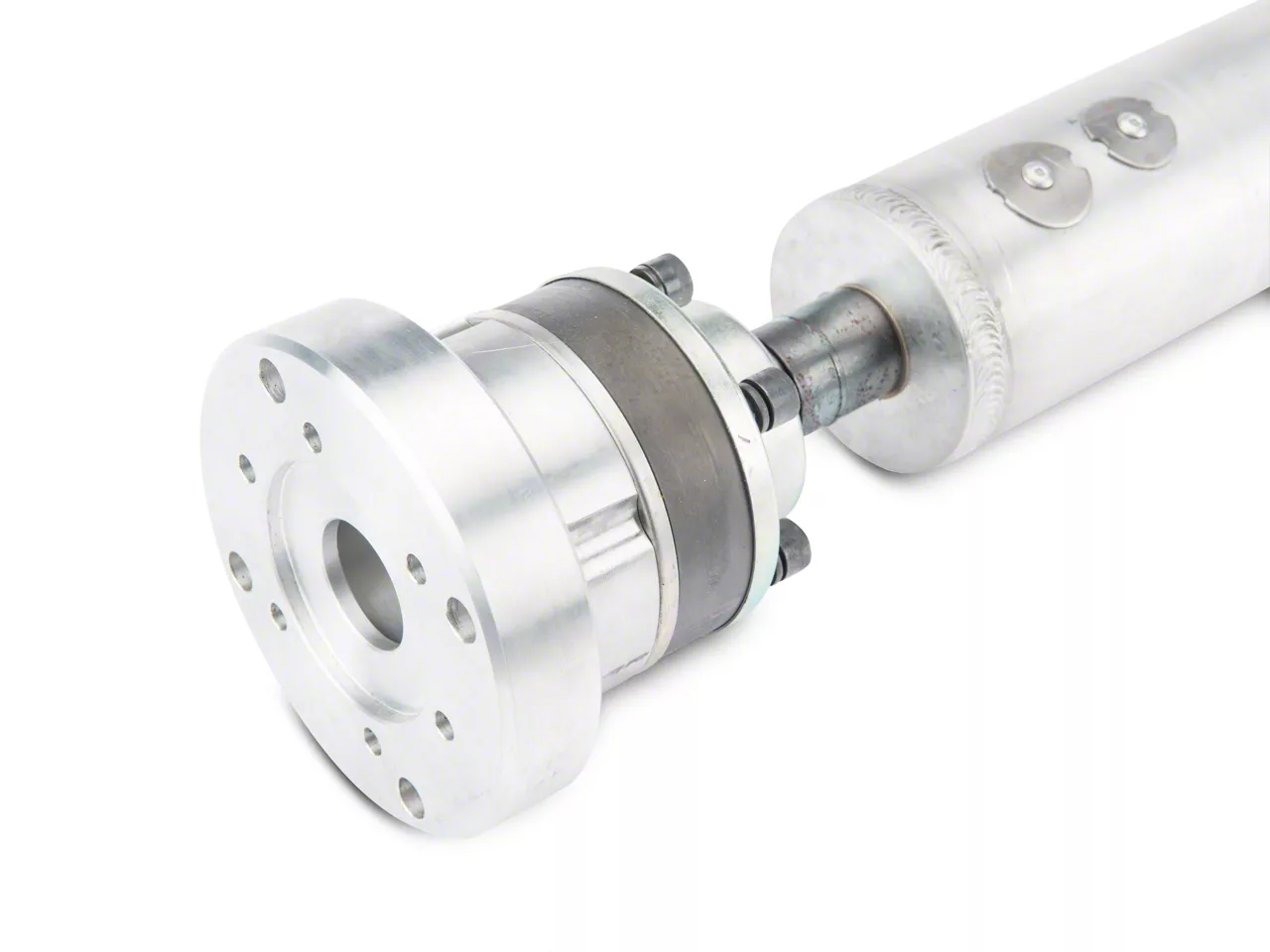

    Superior Quality. Constructed from 3.5 inch diameter 6061-T6 aluminum tubing that is rated for 3450ft lbs of torque, this driveshaft features a 108mm CV joint and adapter plate to mount directly to the transmission and a 108mm 6-bolt rear CV joint made from an all new 300M material.

    Extra Clearance. This light weight one piece aluminum driveshaft features a 3.5 inch diameter design giving extra clearance needed to avoid interference that can happen on lowered Mustangs.

    High Speed Balanced. Balanced on one of the most sophisticated balancing machines in the industry, at up to 9500RPM (revolutions per minute) this one piece driveshaft is rated for use up to 1000 horsepower.

    Application. This One Piece Aluminum Driveshaft from The Driveshaft Shop is designed specifically for use on 2015-2017 GT Mustangs equipped with an automatic transmission.

    Shipping Note: This product can

    not be shipped to an APO/FPO, Guam or US Virgin Island addresses.

    Fitment: 2015 2016 2017 Details

    MPN# FDSH44-A-V2

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    What's in the Box
    • (1) Driveshaft
    Installation Info
    Tech Specs
    Will it fit my Mustang?

      Customer Photos (6) Submit Your Photo

      View All 6 Photos

        Questions & Answers (9)

        5 Top Rated Questions

        Will replacing the split driveshaft with a one piece drive shaft impact, diminish or improve the purpose of the independant rear suspension in a 2015 to 2017 Mustang (GT convertible)? Also replacing half-shafts? Thanks B.E., Vancouver, Canada

        • Hello! Replacing the drive shaft, and half shafts will not impact the independent rear suspension.

        Helpful (1)

        Does this driveshaft supposed to have cv joints on both ends

        • Yes, this driveshaft will arrive just as it is pictured.

        Helpful (0)

        Is the 1000hp rating for at the crank or to the wheels?

        • The HP rating is at the crank.

        Helpful (0)

        What is the difference between the 3.5 and 4.0 inch driveshaft ?

        • They will have the same applications and similar designs however the 3.5" driveshaft has been rated for up to 1000 HP whereas the 4" has only been rated up to 900 HP.

        Helpful (0)

        How much does this weight and how much does factory piece weigh on an automatic?

        • We would not have the weight specs of the stock driveshaft but the Driveshaft Shop 4 in. Aluminum One Piece Driveshaft will weight around 24lbs.

        Helpful (0)
        Post Your Question
        4 More Questions
        Should I expect any vibration from this product? 2 answers
        I am looking to add a Roush Supercharge Phase 1 was told its best to upgrade the Driveshaft. Would this Driveshaft be sufficient for 670hp Upgrade? 1 answer
        Hello I have a 2016 Mustang GT convertible automatic. Should I expect any vibration from this driveshaft? Would buying the carbon fibre model prevent this? 1 answer
        I read somewhere that the aluminum driveshaft for the automatic equipped cars only saves about 10 pounds over stock, but for the manual trans cars it saves about 18. Is that correct? 1 answer

          Customer Reviews (17) Write a Review

          Overall Rating 4.3

          out of 5 stars

          Installation Time:Full Day

          Installation Cost:$100-$250

          • Performance Gain 3.705882 3.7
          • Fit 4.529412 4.5



          • 5/5

            Installation Time: Shop Install

            April 11, 2019

            2016 premium gt

            Really robust and increased hp to the wheels. It’s lighter and the one piece billit aluminum is more durable. Will be increasing hp in the future so I’ll have all the insurance I can get with this setup!

            ChrisP

            Year: 2016 Submodel: GT

            Helpful (0)

          • 3/5

            Installation Time: Afternoon

            April 08, 2019

            Only if Really Needed...

            Fit and finish is really good on this item. Did not notice any performance gain at the track. Only complaint would be the vibration caused by this item since installed. Would only recommend if you are looking at adding a supercharger or turbo. Been working on cars over 30 years so it was installed correctly. .just in case!!

            cdhrusso72

            Year: 2017 Submodel: GT

            Helpful (1)

          • 5/5

            February 22, 2019

            DSS install

            Straight forward and fun install always better with friends and some food. Have had in use with no complaints for over 2 years with 500 hp and R888 tires.

            Edgar3

            Year: 2017 Submodel: GT

            Helpful (1)

          • 5/5

            Installation Time: Afternoon

            October 29, 2018

            Great upgrade

            This was a much needed upgrade since the installation of the Roush Supercharger. Not only is it stronger but also eliminated some vibration from the drive line with the removal of the stock two piece. Car is much smoother no at high loads and speeds.

            KeithS

            Year: 2015 Submodel: GT

            Helpful (4)

          • 5/5

            Installation Time: Afternoon

            October 17, 2018

            Great buy

            Must have when upgrading ur power. Install easy enough with a helper don't have to worry about the two piece breaking while running the car

            JoshuaK

            Year: 2016 Submodel: GT

            Helpful (3)

          • 5/5

            Installation Time: Afternoon

            May 28, 2018

            Overall great procuct

            Driveshaft was a smooth install. So far no noticeable vibration as some of the other reviews stated. Only note of concern is the allen bolts are pretty soft around the allen key edges. If allen socket slips you could strip the allen key. Just take your time. Keep the allen socket lined up straight and you'll be fine.

            Anarkris

            Year: 2015 Submodel: GT

            Helpful (5)

          • 5/5

            April 24, 2018

            Driveshaft

            Easy install. Great fit. No vibration at all. Couple of hours for install

            Aaron

            Year: 2016 Submodel: GT

            Helpful (5)

          • 4/5

            Installation Time: Full Day

            April 08, 2018

            Good

            The product looks good. My mechanic install in a day

            YerandiV

            Year: 2015 Submodel: GT

            Helpful (4)

          • 5/5

            Installation Time: Afternoon

            March 27, 2018

            great driveshaft

            love this driveshaft....can definitely feel a difference in the way the car accelerates,but all so has a little bit of drivetrain noise and vibration as can be expected when switching to a one piece driveshaft. if running a safety loop,I will tell you that the ford performance one will not work with this 4" driveshaft.

            seanc

            Year: 2017 Submodel: GT

            Helpful (6)

          • 1/5

            March 02, 2018

            shatf

            it was machined wrong would not fit and still waiting on a return label. customer drove 4 hours to have us work on his car , left very upset it also cost me the rims we had ordered for him. he left with nothing.

            JamieP

            Year: 2017 Submodel: GT

            Helpful (6)

          • 4/5

            Installation Time: Less than 1 Hour

            June 13, 2017

            Aluminum driveshaft

            I have the aluminum one piece $750.00 driveshaft from DSS. It did tighten the car up for sure. It was noticeable indeed. I took it out after 200 miles and reinstalled the factory driveshaft. The road and /or noise harshness was too much for me. I could notice the noise during certain RPM's and did not like it. I'm 55 years old. Perhaps in my 30's-40's it wouldn't have mattered. I have a slightly used with instructions and all hardware aluminum DSS driveshaft for sale. $500 bucks takes it.

            EdB

            Year: 2017 Submodel: GT

            Helpful (21)

          • 5/5

            Installation Time: Afternoon

            May 18, 2017

            Nice product

            Driveshaft had zero issues. Install on jack stands will need a buddy. It went easier with pulling exhaust out. Definitely a difference in throttle response.

            Bill

            Year: 2016 Submodel: GT

            Helpful (10)

          • 5/5

            Installation Time: Shop Install

            Installation Cost: $100-$250

            March 01, 2017

            Super

            Lost weight and increases power on wheels. You need that.

            Javier

            Year: 2016 Submodel: GT

            Helpful (5)

          • 5/5

            Installation Time: Shop Install

            Installation Cost: $100-$250

            February 06, 2017

            Must have

            If you're going to drag race this is a must have. Looks great. Super strong, and lighter than stock two piece.

            Bradbus

            Year: 2016 Submodel: GT

            Helpful (10)

          • 5/5

            Installation Time: Less than 1 Hour

            February 06, 2017

            Easy

            Install went smooth, no vibration would diffently recommend

            MatthewK

            Year: 2016 Submodel: GT

            Helpful (8)

          • 1/5

            Installation Time: Shop Install

            Installation Cost: $250-$500

            December 20, 2016

            Dont bother

            Dont bother with this one, had it installed by a professional shop, vibrations started at 60mph and got worse as I went faster dont know if they shipped it out of balance or the fact that it wasnt properly wrapped and got bumped in shipped either way, sending it back after an expensive lesson. 200$ install 150$ unistall shop gave me a break on the unistall but 350$ plus the 800 $ for the shaft

            shooterx1x

            Year: 2015 Submodel: GT

            Helpful (9)

          • 5/5

            Installation Time: Afternoon

            March 17, 2016

            What a difference

            This install would have been a lot easier if I had a lift. Unfortunately I had to do it on jack stands. What a differenve when launching. The track is opening soon, so I cant wait to really give it a try.

            qdog125

            Year: 2015 Submodel: Other

            Helpful (6)
