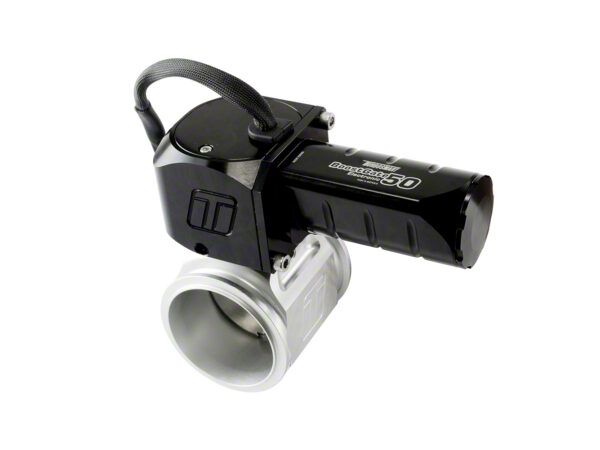

Turbosmart EBG50 Electronic BoostGate50 Charge Air Valve (Universal; Some Adaptation May Be Required)
Item CH25974
Our Price
$1,432.79
Military, Medical & First Responders
$71.64 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Electronically Controlled Butterfly-Style Valve Designed For Charge Pipe Boost Control
- Manufactured From Billet Aluminum For Reduced Mass
- Features Control And Flow Similar To StraightGate Series Products
- Charge-Air Control Uses Controlled Bleed Of Compressed Air On Cold Side Of Turbo System
- Mounted To Charge Pipe For Direct Air Flow Modulation
- Specifically Suited For Drag Racing Applications
- Zero Offset Butterfly-Styled Valve With High Resolution And Enormous Flow
- Equipped With Patent Pending Zero-Backdrive Gearbox Technology
- 50mm Butterfly Style Zero-Offset Valve
- 383.9 CFM / 10.87m3 Per Minute Flow
- Stainless Steel (630) Butterfly And Shaft
- Billet Aluminium Main Body
- 360-Degree Mounting Options On V-Band
- Clock-able Actuator Positions With Two 120 Degree Options
- Full Electronic Actuation With Dual H-Bridge Input
- Onboard 0-5v Analogue Actuator Temperature Sensor
- Onboard 0-5v Analog Valve Position Sensor
- Onboard PWM Digital Valve Position Sensor
- 7 Wire Unterminated Flying Lead Loom
- Supplied With V-Band Clamps And Aluminium Weld Flanges
- Includes Turbosmart Decal
- Fits Universal; Some Adaptation May Be Required
| Brand | Turbosmart |
| Type | Bypass Valve |
Description
Advanced Boost Control. The Turbosmart EBG50 Electronic BoostGate50 Charge Air Valve is an electronically actuated valve engineered to precisely modulate boost pressure by controlling airflow within the charge pipe. It allows direct charge-air control for consistent and accurate boost regulation, especially beneficial in drag racing and other high-performance applications where turbine optimization has been achieved. This valve improves boost control by bleeding compressed air downstream of the turbocharger, ensuring rapid response and enhanced power delivery.
Construction and Appearance. Made from billet aluminium, the valve body combines strength with lightweight performance. The butterfly valve and shaft are crafted from stainless steel (630 grade) to guarantee durability and corrosion resistance. It features a sleek, professional finish with 360-degree mounting options through V-band clamps, and the actuator offers clock-able positioning for flexible installation.
Installation. Installation requires moderate mechanical skill and involves mounting to the charge pipe using the supplied V-band clamps and aluminium weld flanges. While the process generally does not require drilling, some adaptation may be necessary depending on the specific setup.
Application. Designed for universal fitment; some adaptation may be required to integrate with various turbo systems and charge pipe configurations.
